Khant » PPM 410

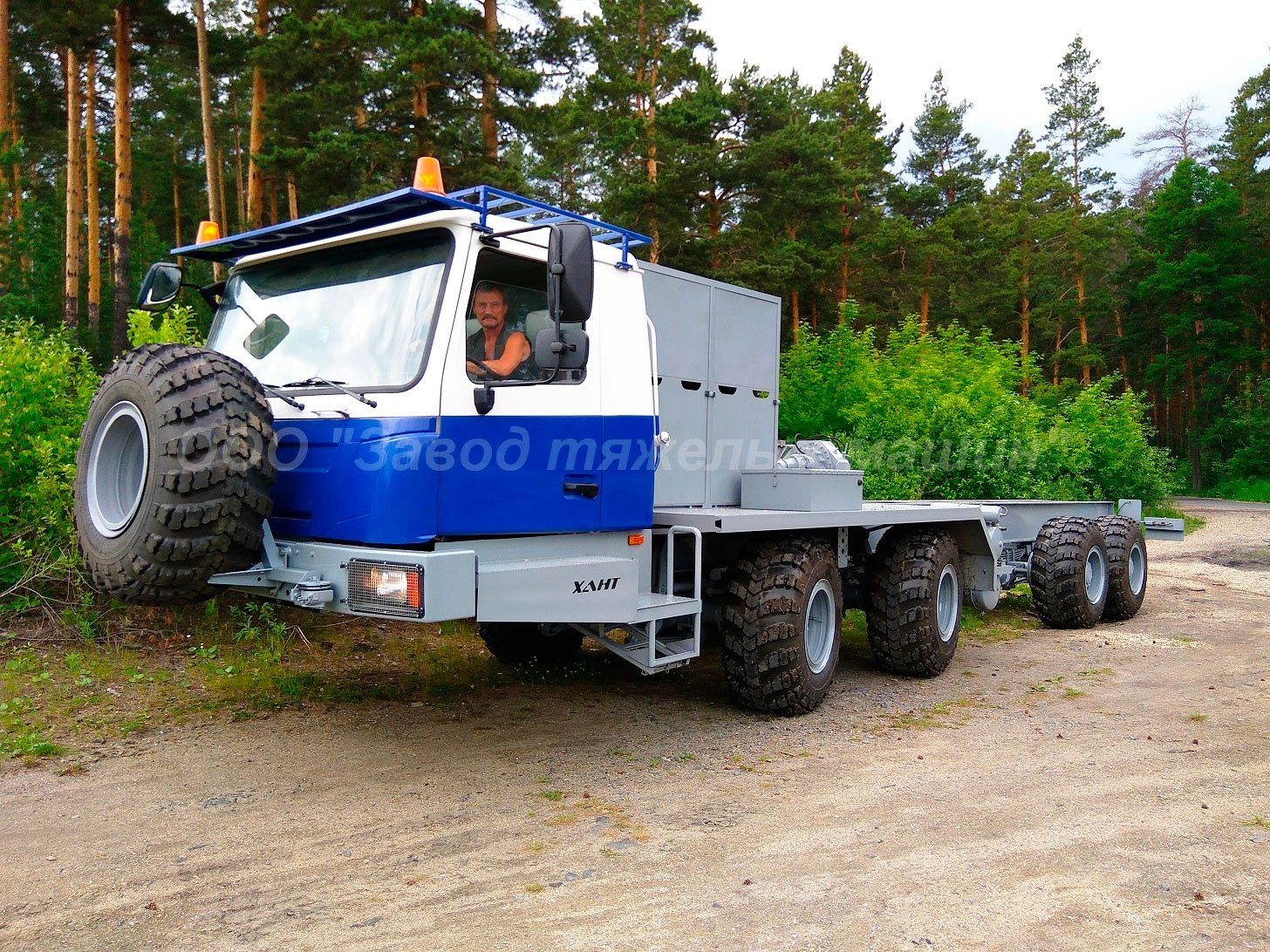

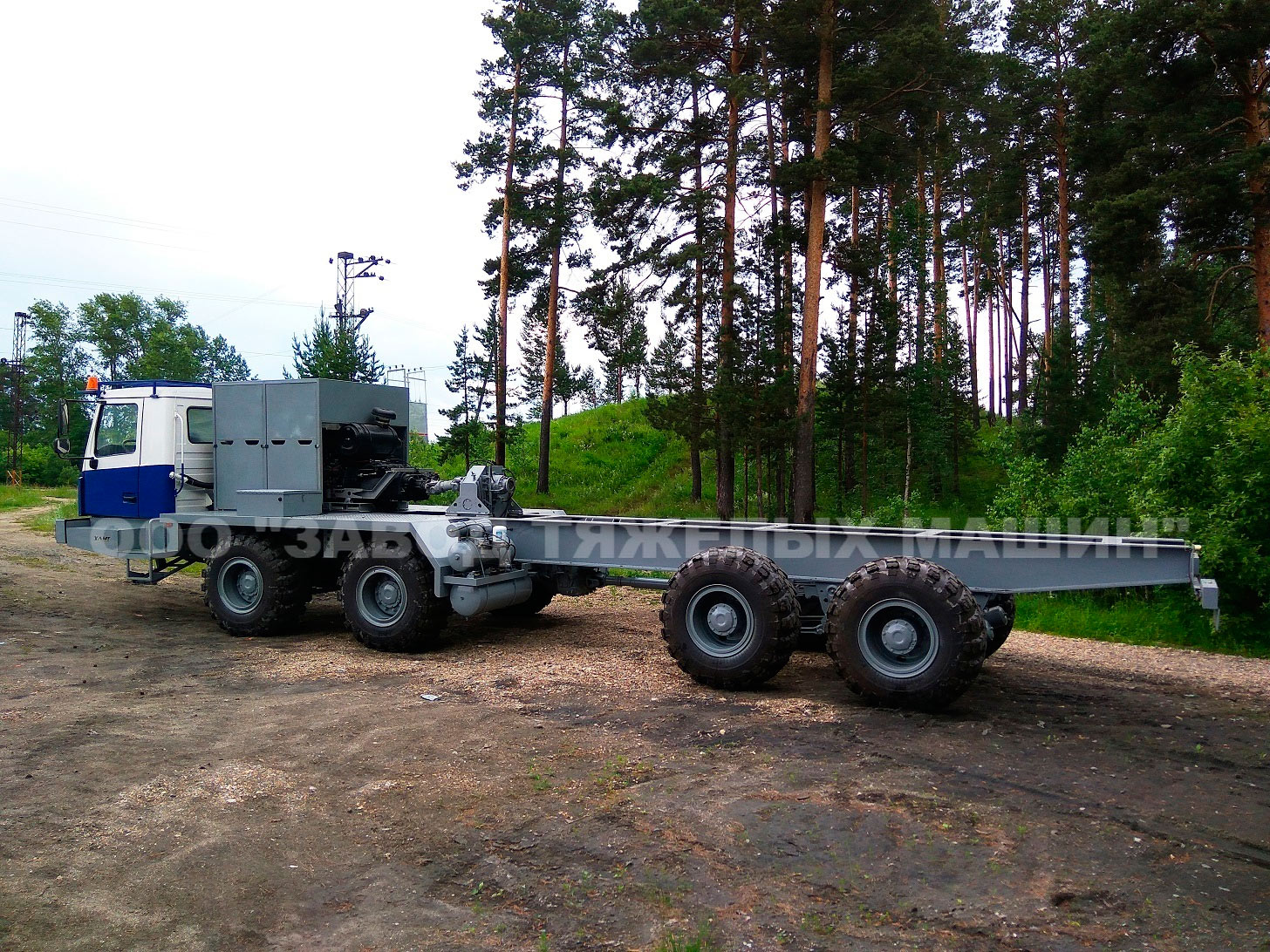

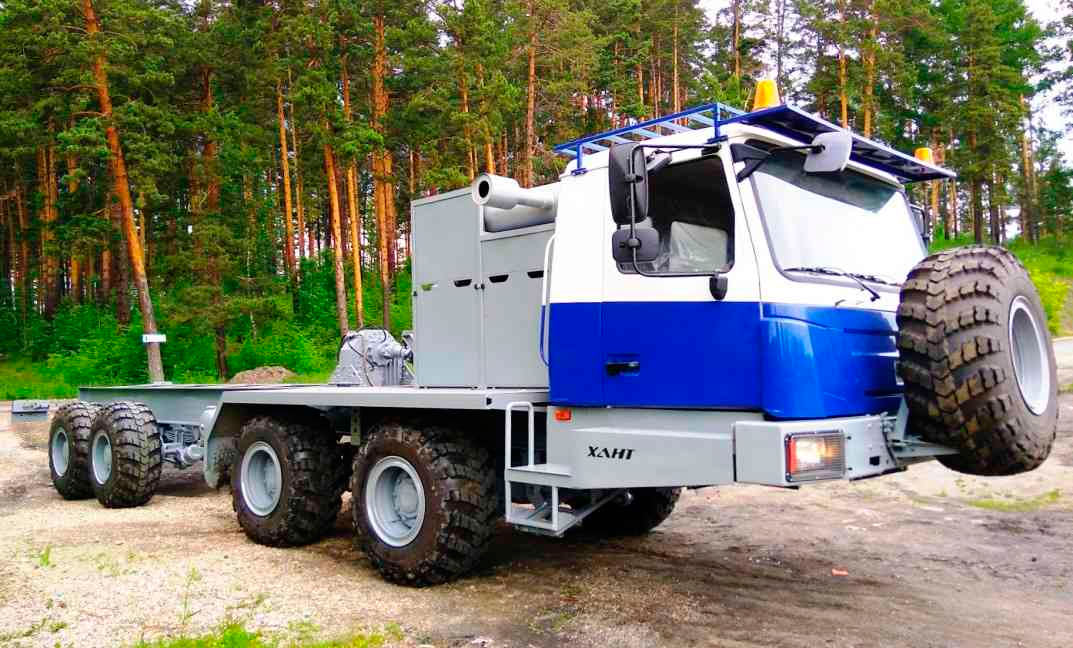

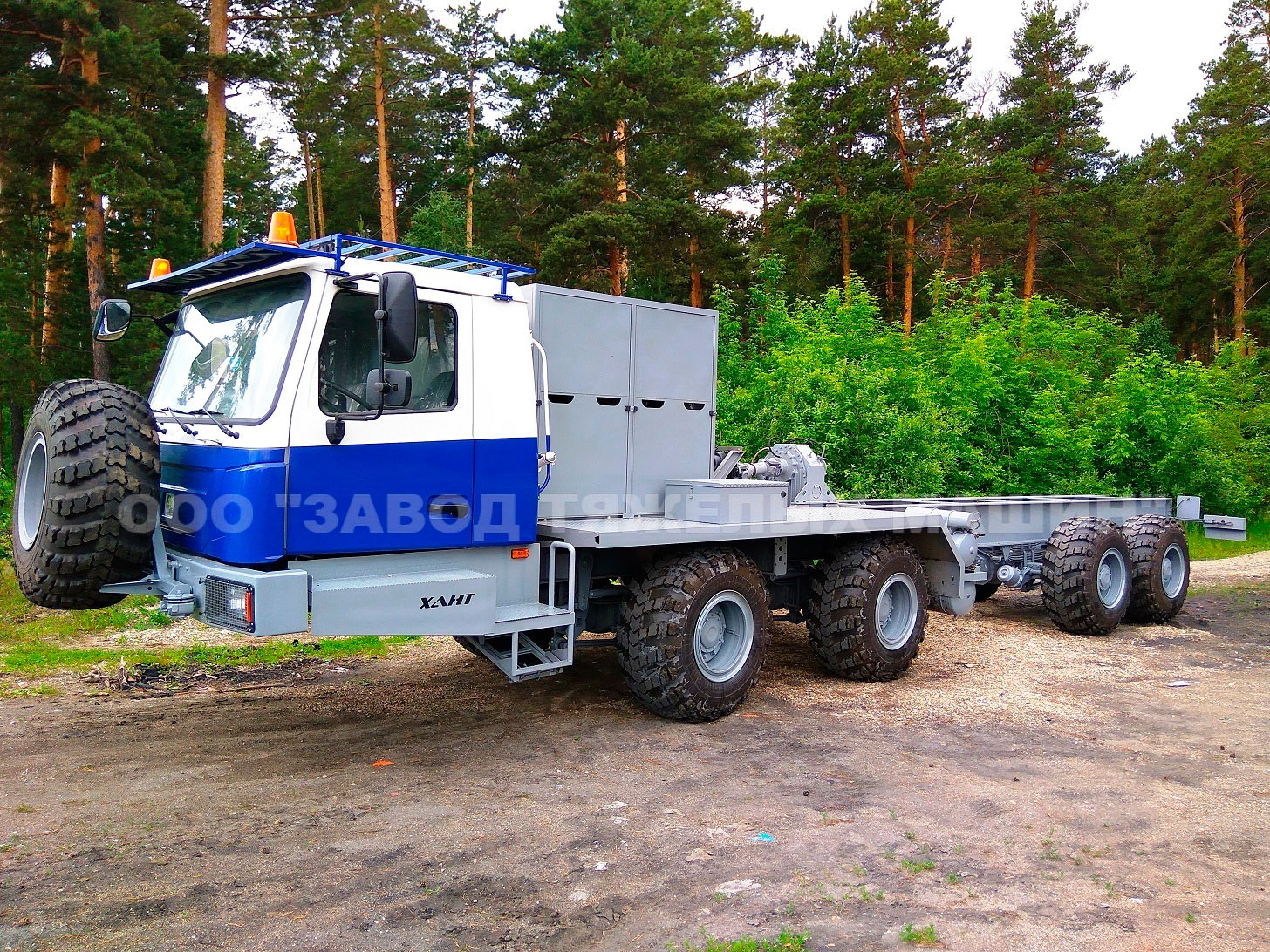

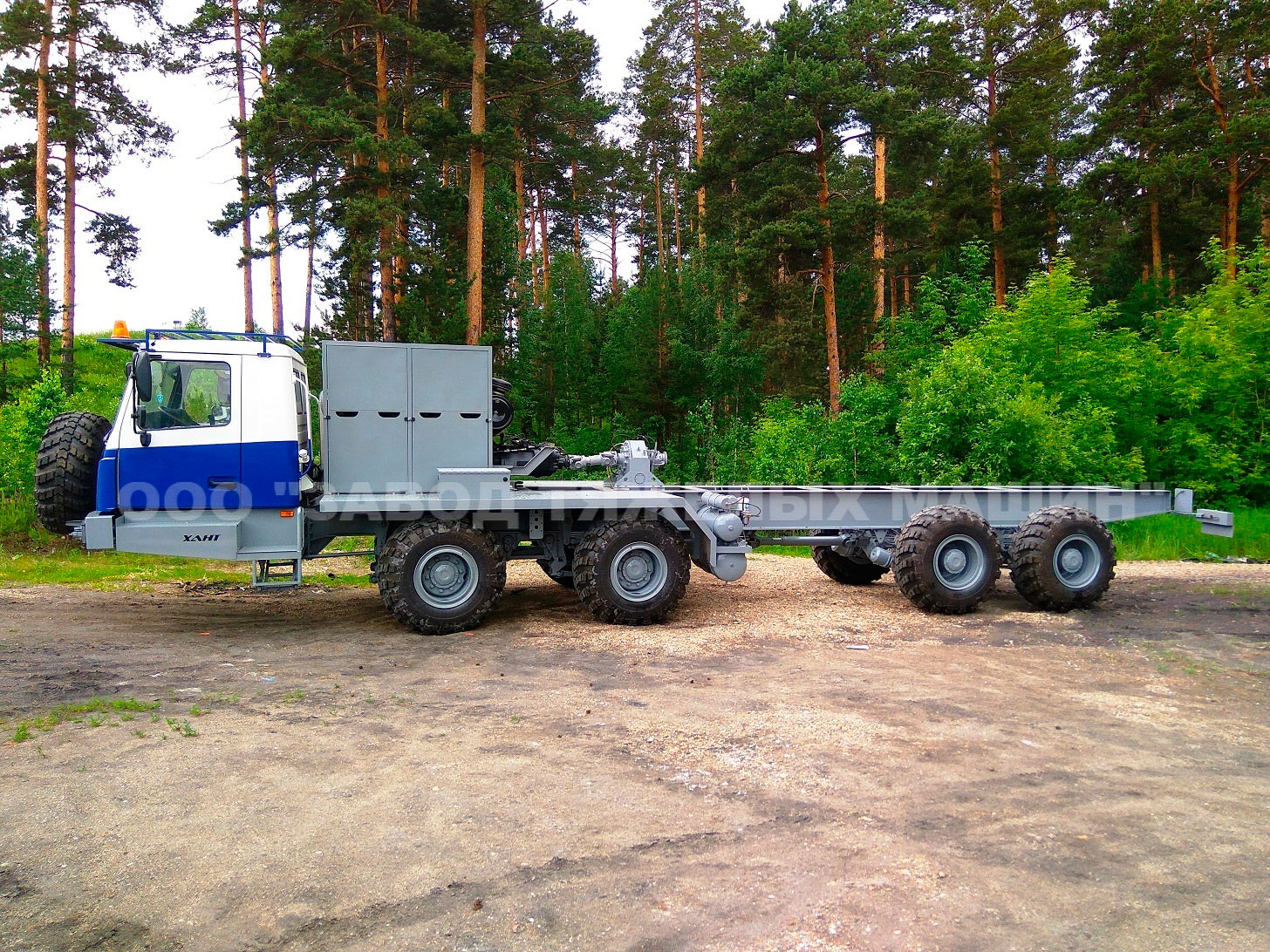

In June 2017, the Heavy Machinery Plant began the production of a special chassis for the installation of oil equipment called the PPM 410. "PPM" means the "mobile modular platform". It was developed to install drilling equipment for OOO Surgutneftegaz.

Curb weight of the 8x8 chassis is 14-16 tonnes, payload is 24-42 tonne, depending on the version. GVW is 56 tonnes. Top speed is 40 kph. A 6-cylinder diesel YaMZ-652 with a power of 412 hp is used, which joined to a manual 12-speed gearbox.

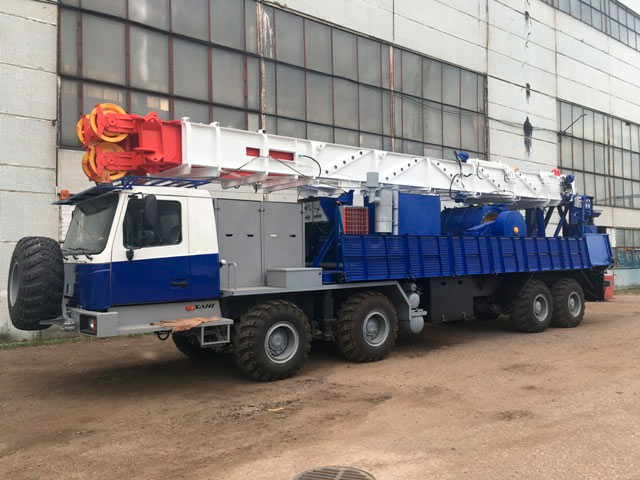

Drilling equipment is installed by OOO MK Vertikal from Yekaterinburg (ARS-80) and Idel-Neftemash LLC from Ishimbai (Idel-80).

PPM 410PPM 410PPM 410PPM 410
PPM 410PPM 410
