Kenworth » T610

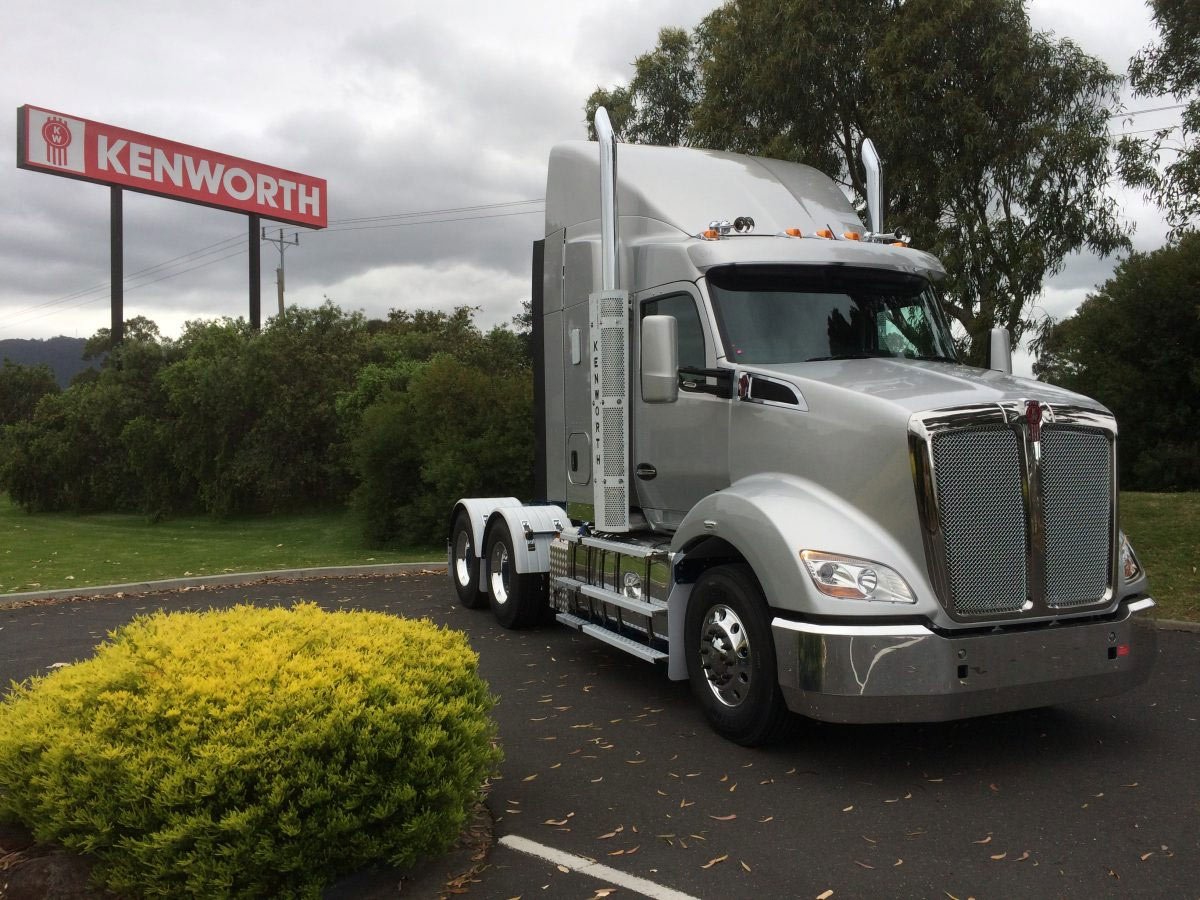

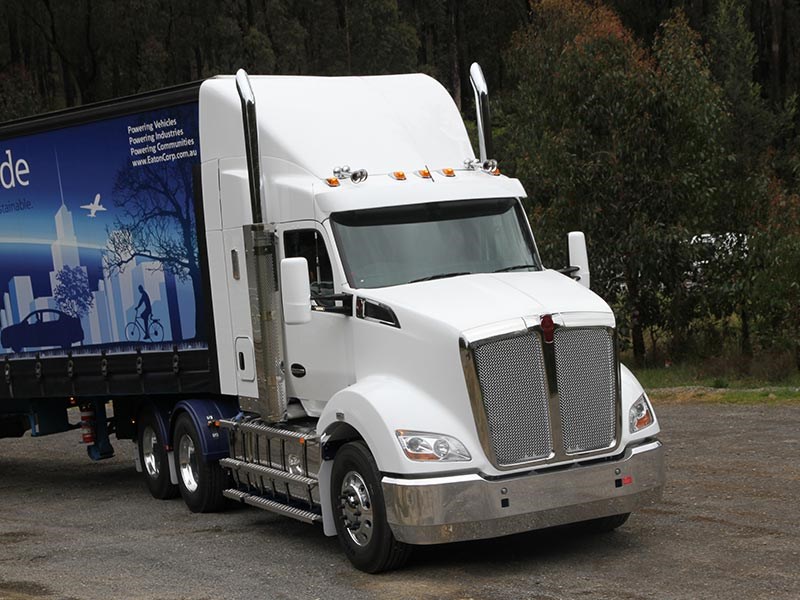

Kenworth’s new T610 is the biggest and most expensive truck development program ever undertaken in the company’s Australian history. Some perspective on the extent of the investment in the T610 is perhaps best understood by the fact that the entire range of current 09 models (T409, T609, T909 etc) plus the radically revamped K200 cab-over all came to life for less than half of what will be spent on bringing the T610 into existence.

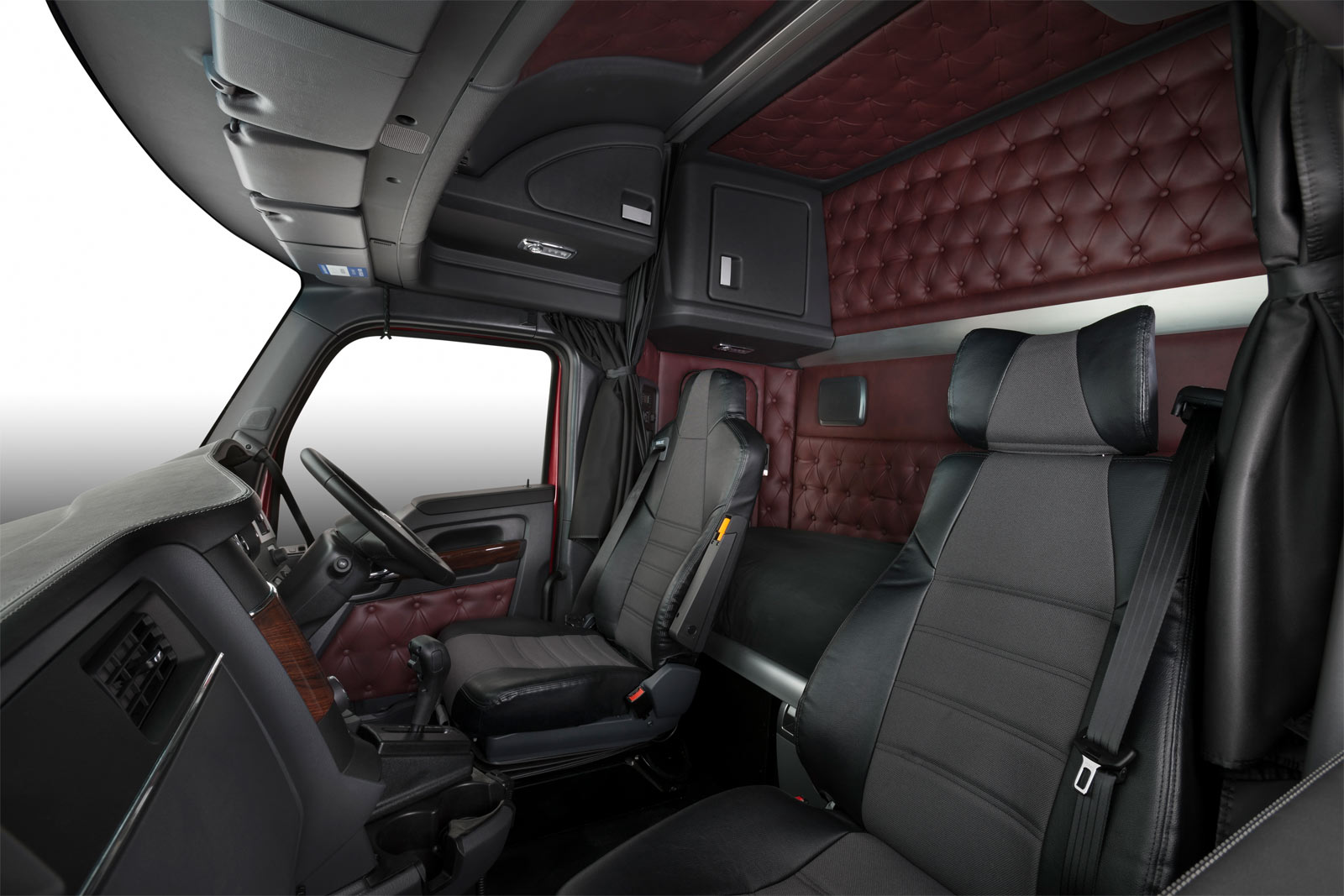

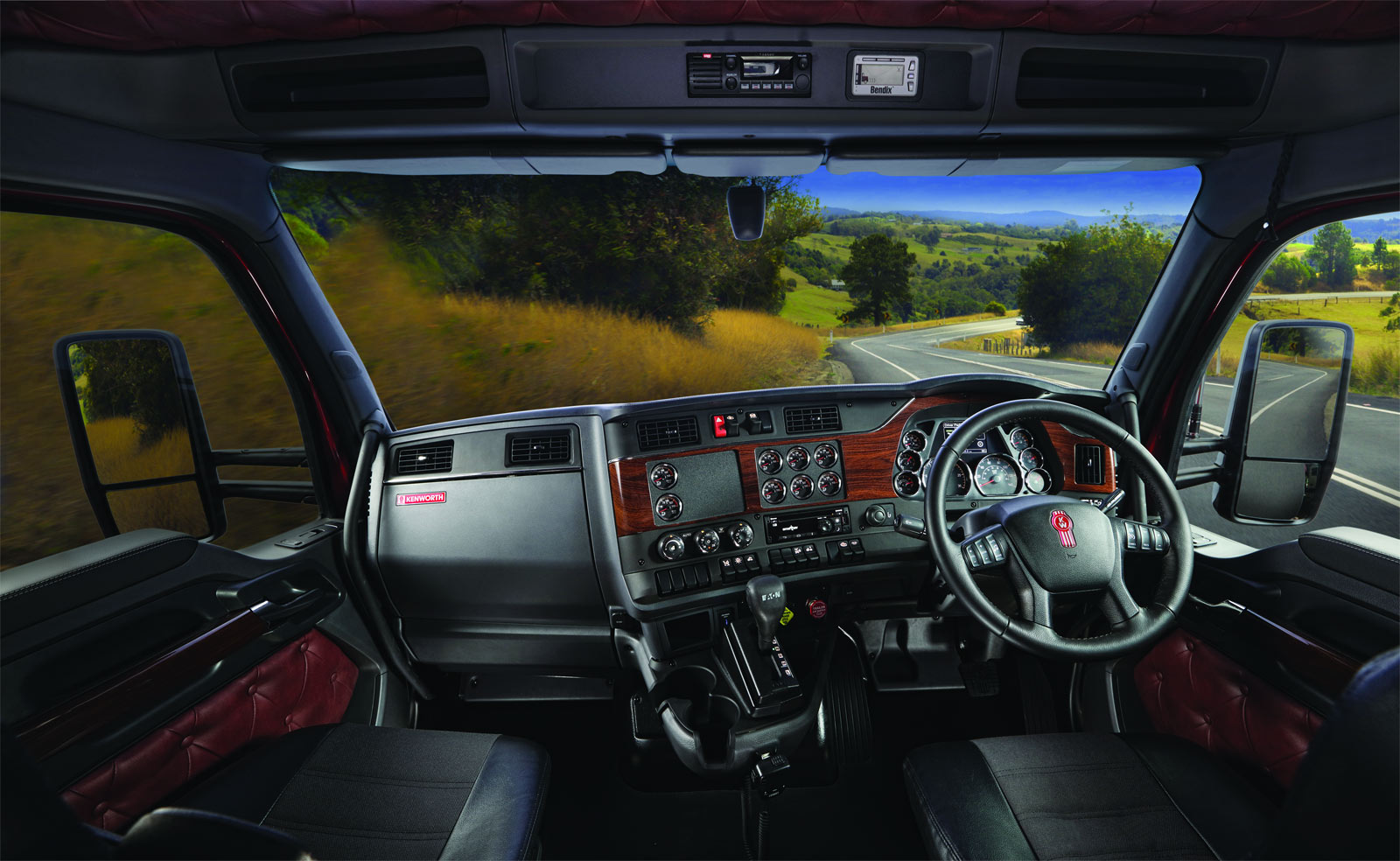

Major cost items like the firewall and floor structures as well as a completely new and strengthened dash are uniquely Australian, fully engineered at Bayswater to achieve the structural durability and design goals deemed essential for this market. The 2.1 metre wide cab provides a huge improvement in internal space along with full standing room in sleeper versions. The T610 also provides a substantial (30%) increase in space around the driver’s footwell, the gap between the seats has been significantly opened and with a rise in the height of the bunk, there’s now room for an optional slide-out fridge. It’s actually amazing what Kenworth has achieved with an extra 270 mm between the B-pillars.

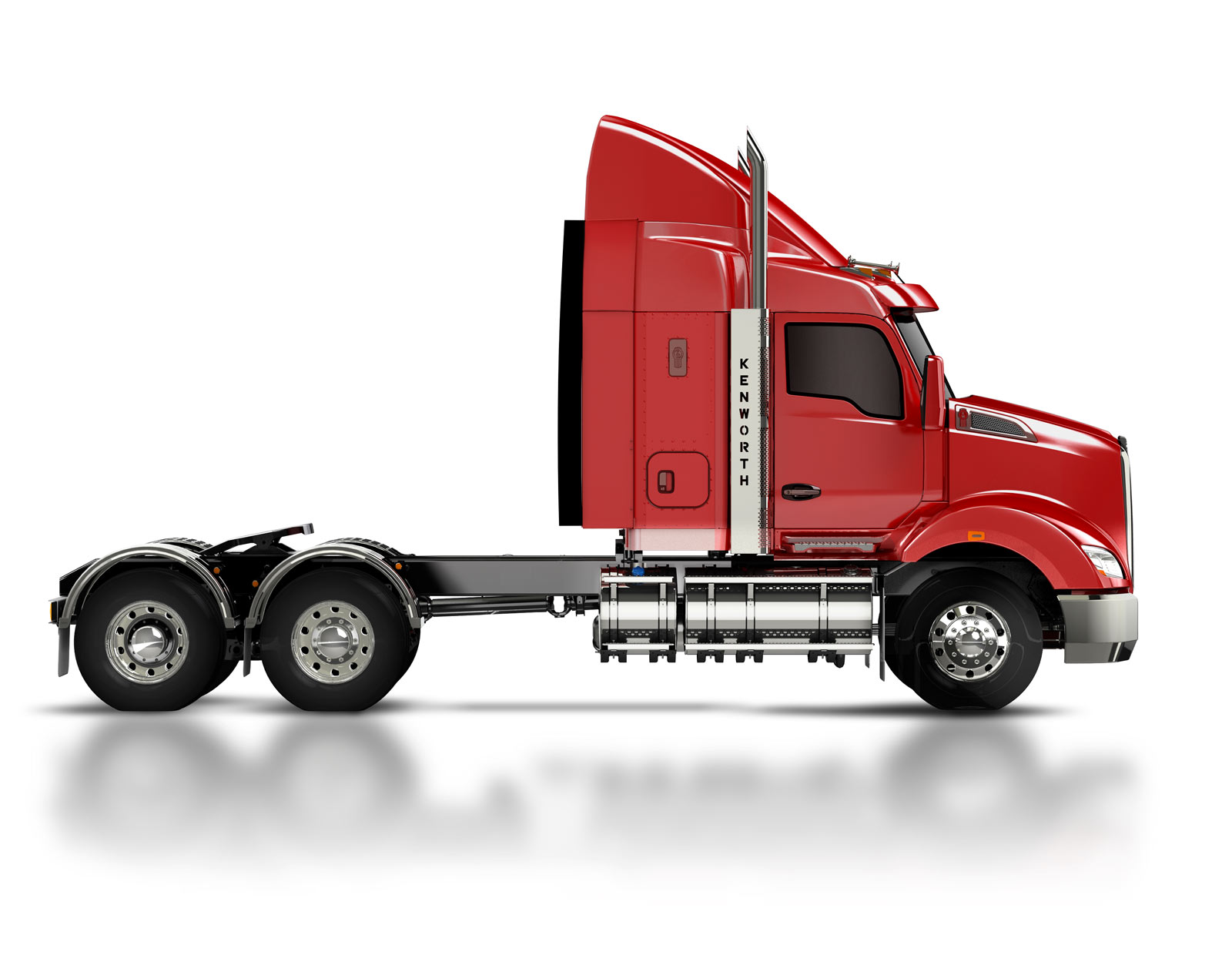

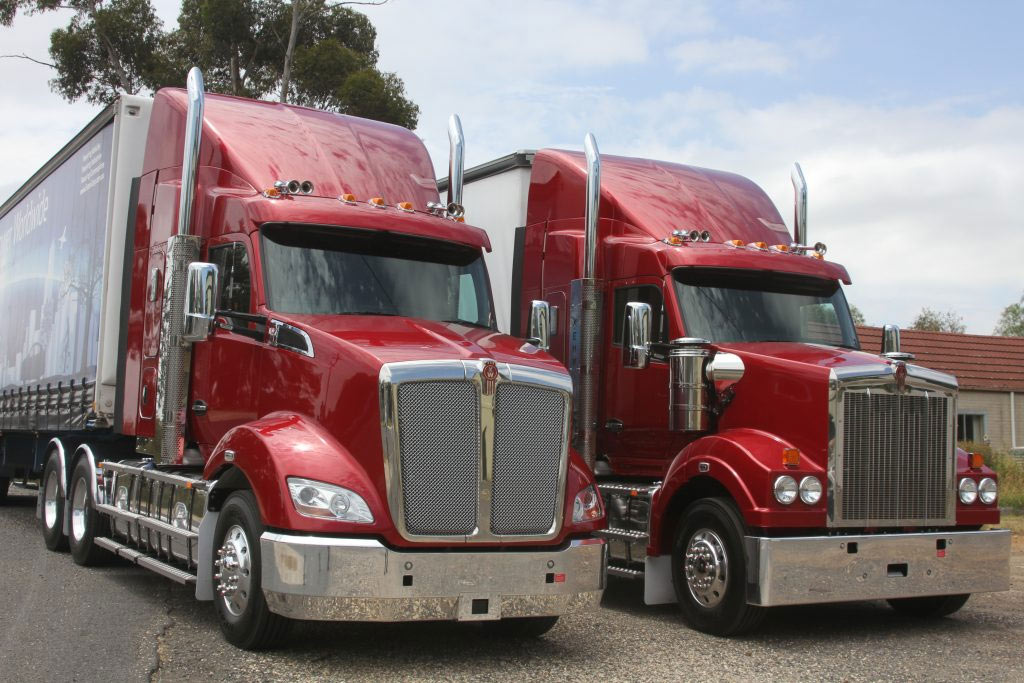

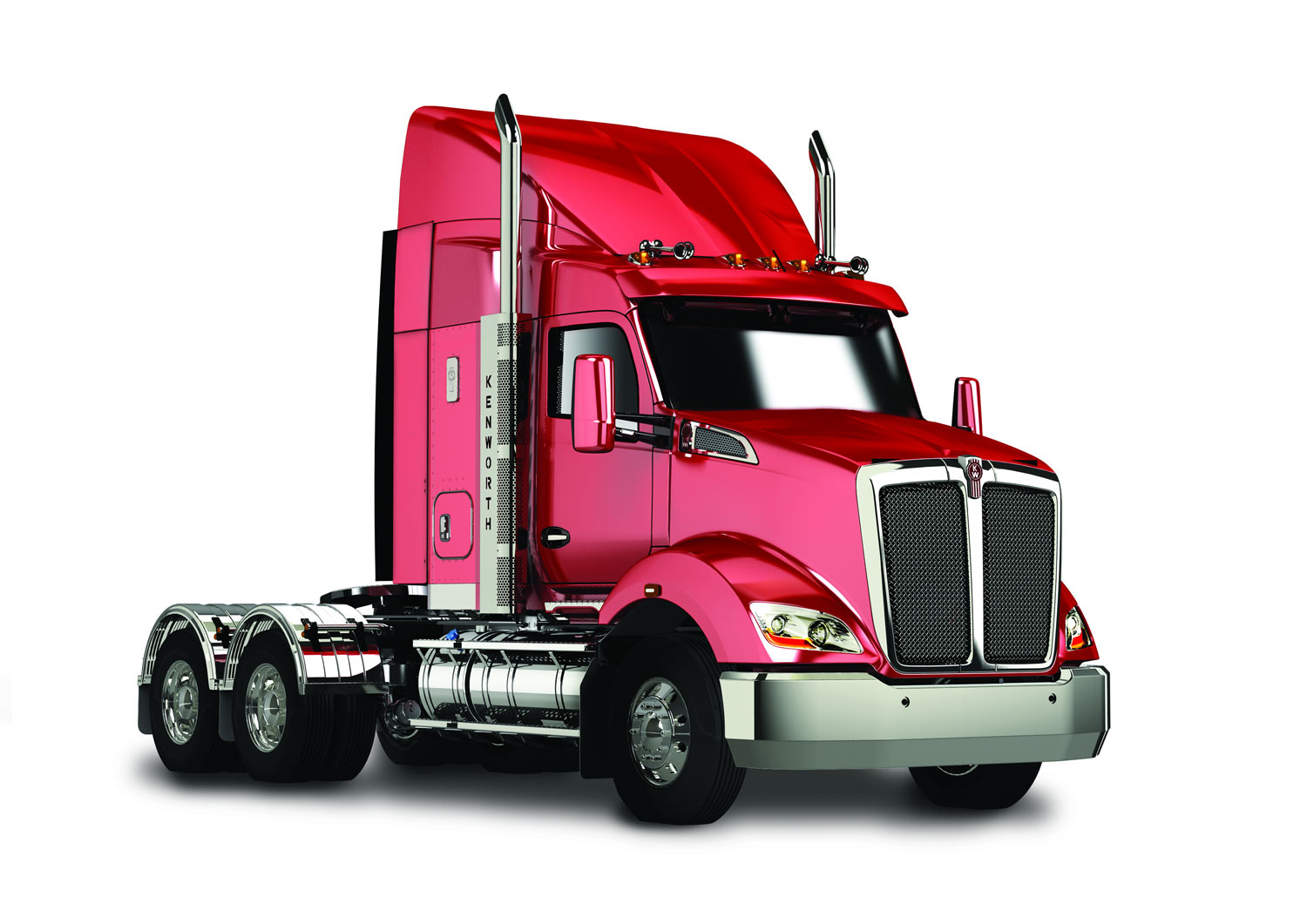

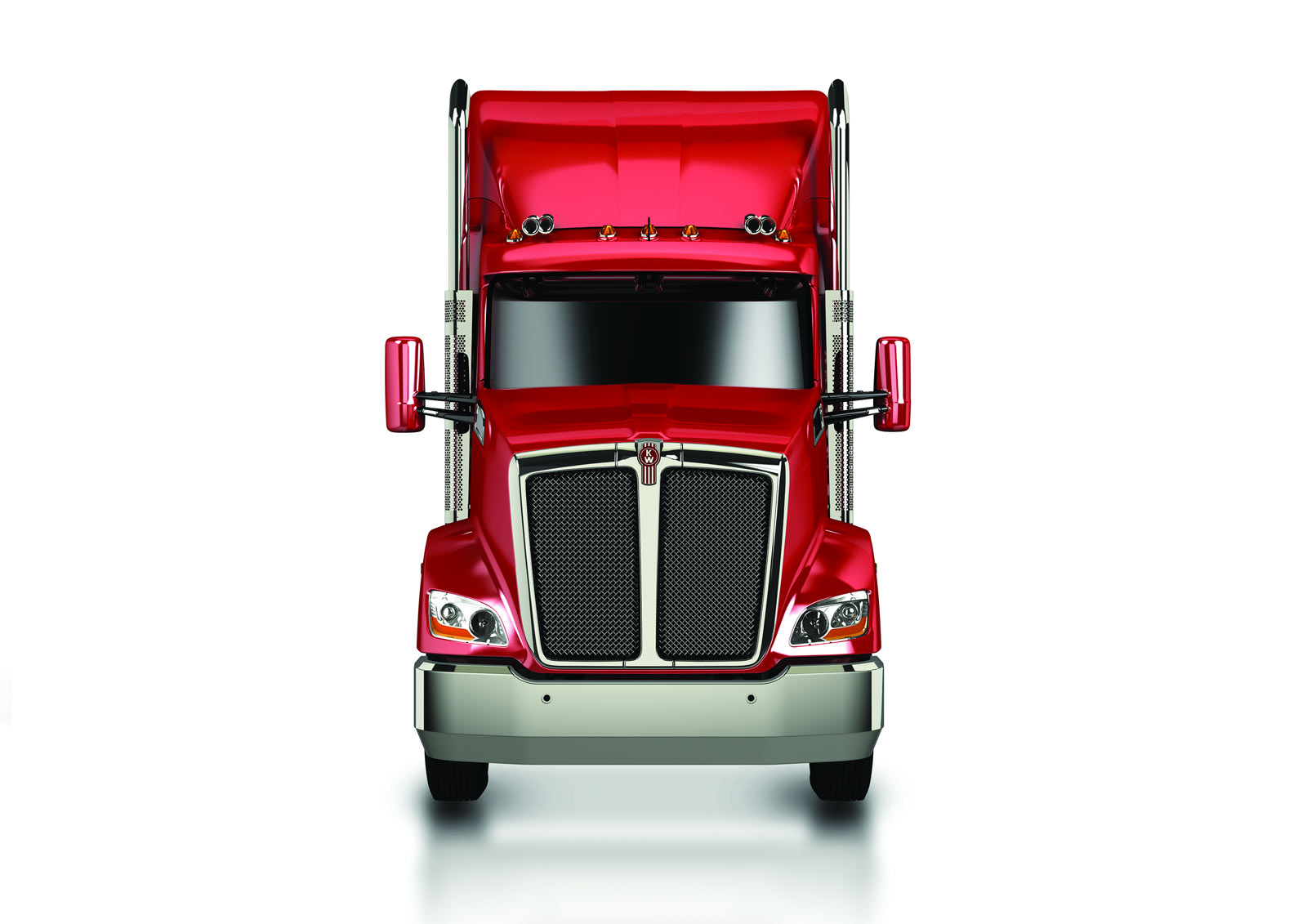

While external styling is definitely different and comes with a number of ancillary features adapted from the inventories of both Kenworth and Peterbilt in the US, the T610 is unquestionably an exercise in substance over style. Most notably, the cab is wider, taller and in sleeper form, vastly more spacious and liveable than the long-serving cab of Kenworth’s current conventional range. Unlike existing T4 models, for example, sleeper versions of the 610 provide full standing room from the seat to the sleeper and there’s little doubt this fact alone will be a major attraction for owners and drivers alike.

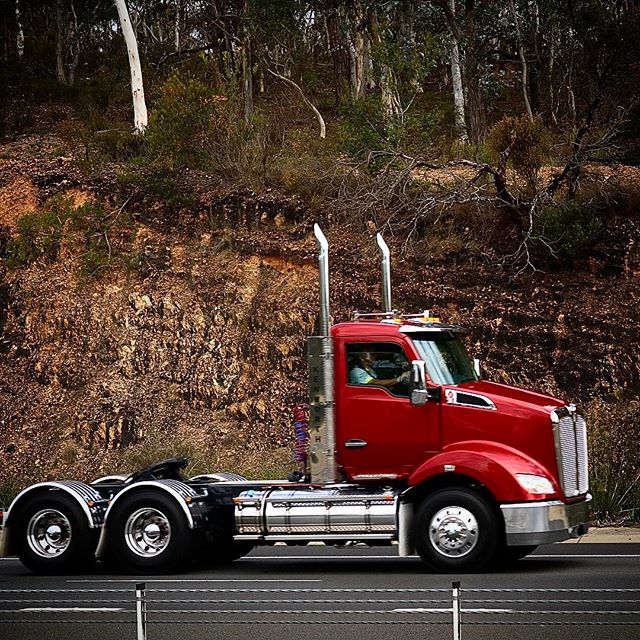

The 610’s first foray into the market will see it offered in set-back and set-forward (SAR) front axle configurations, initially as a day cab or with an 860 mm (36 inch) sleeper. Perhaps the greatest benefit is that it has allowed the cab to be moved forward to create a bumper to back-of-cab (BBC) dimension of just 112 inches on the day cab model, giving the newcomer particularly strong appeal for any number of length-critical applications. By comparison, the current T409 has a BBC of 116 inches.

Importantly, the higher stance of the cab allows greater airflow underneath to enhance cooling efficiency and considerably improves service access to the rear of the engine. Furthermore, the taller cab also improves visibility though some drivers may rue the fact that the top of the KW ‘bug’ is no longer visible and therefore unavailable as a line of sight to the edge of the road.

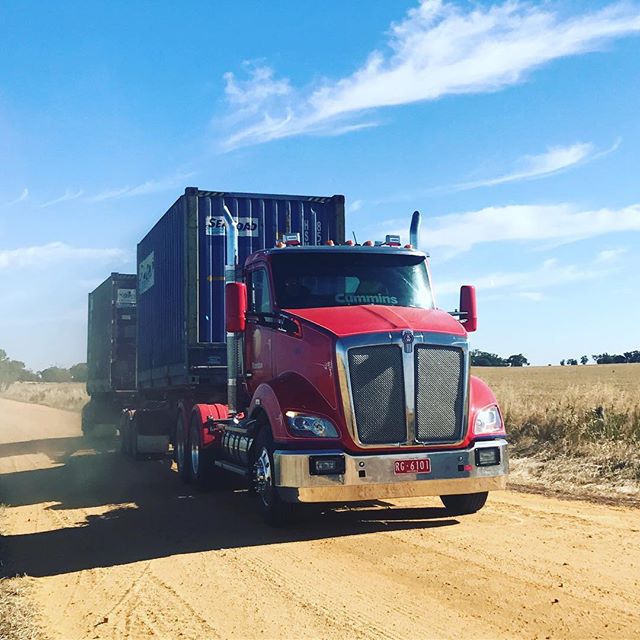

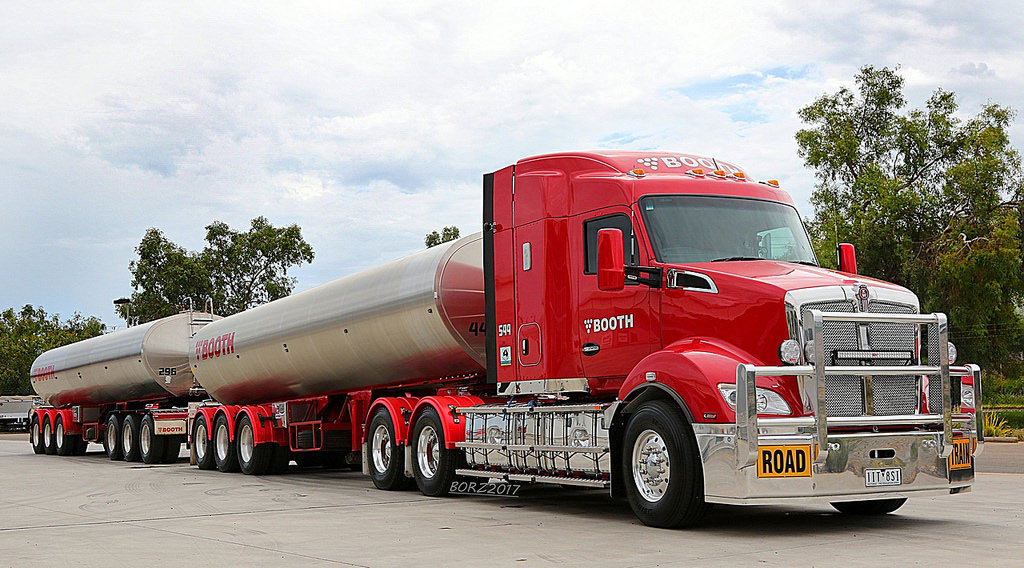

Kenworth T610 is available as the 6x4 or 8x4 chassis and tractor, fitted with X15 Euro V engine (485 hp in standard, 600 hp as an option). The gearbox is Eaton 16-speed, manual in standard, and 18-, 20- or 22-speed manual as an option, as well as automated Ultrashift Plus. Drum brakes are standard equipment, disk brakes - option.
