BAZ » 69502

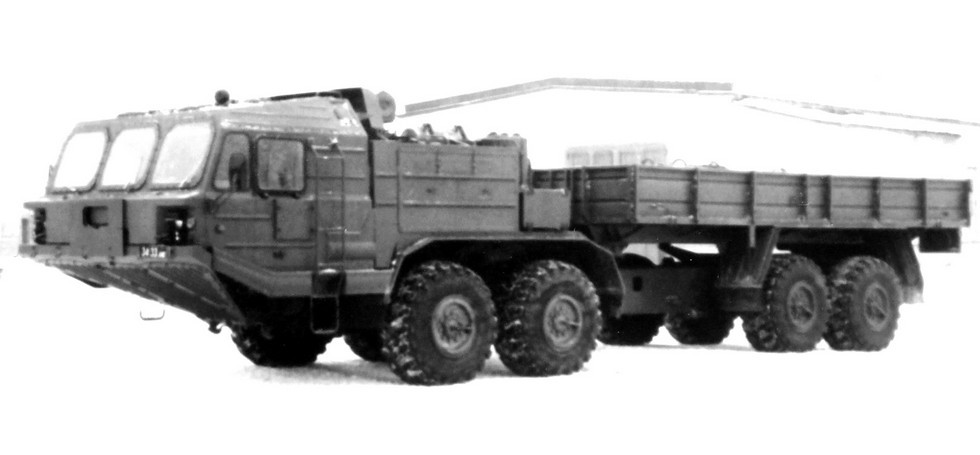

BAZ 69502 is the prototype of a special long-wheelbase flatbed chassis with a payload of 13.3 tonnes, unified with BAZ 69501. This was the last army truck development of BAZ in USSR.

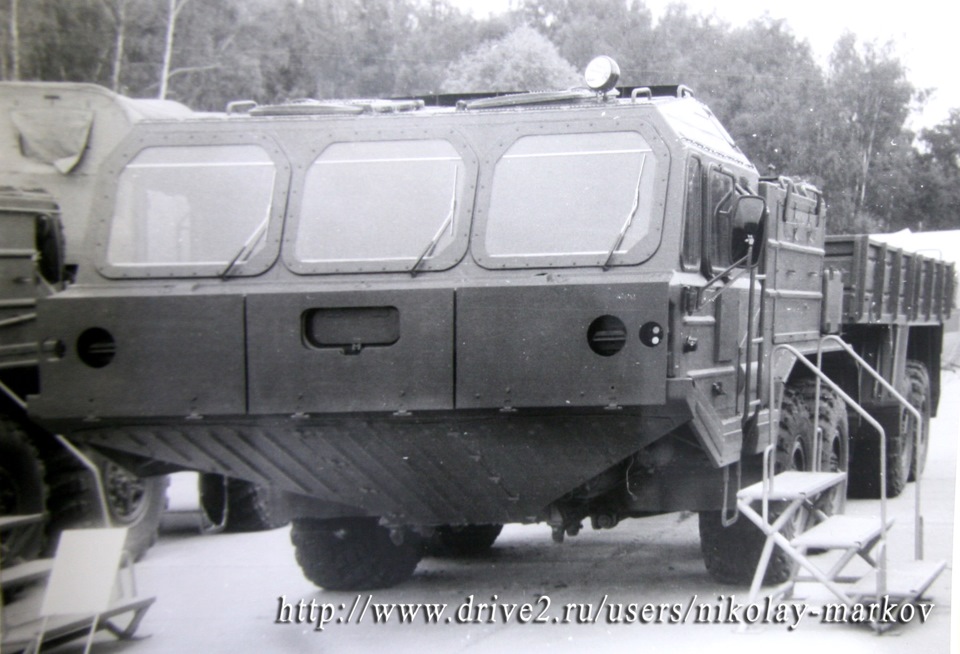

It was made in 1990 and got the new 4-place metal cabin with increased resistance to damaging of a nuclear explosion factors, the rear slope of windshield and two hatches in the roof for enter/exit of the crew. Another feature was longer wheelbase increased to 7000 mm (1500+4000+1500 mm). Curb weight - 18.5 tonnes, GVW - 32.2 tonnes. Ground clearance - 470 mm, turning radius - 15 m. Overall dimensions - 11,300x3080x3050 mm. Front overhang was increased to 3025 mm (BAZ 69501 has 2760 mm).
