BAZ » 135MBL

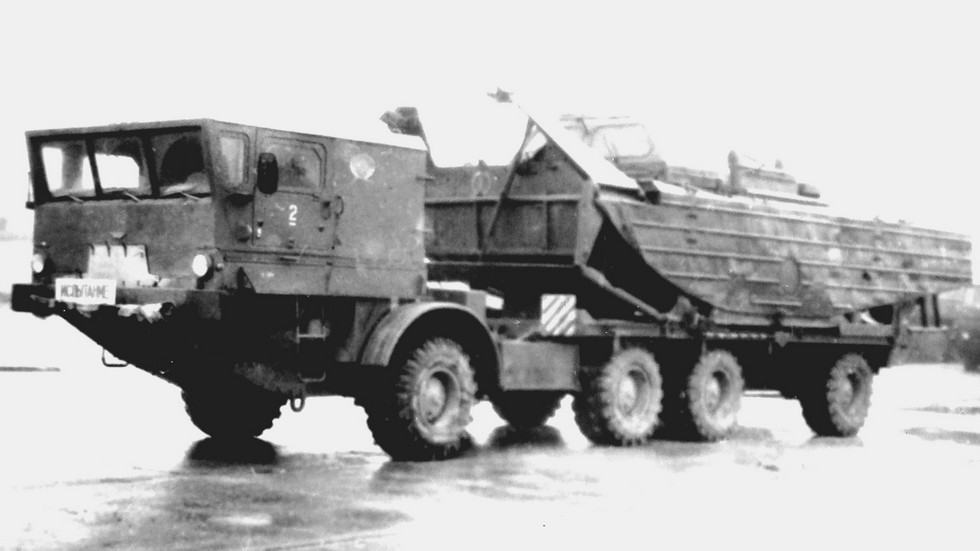

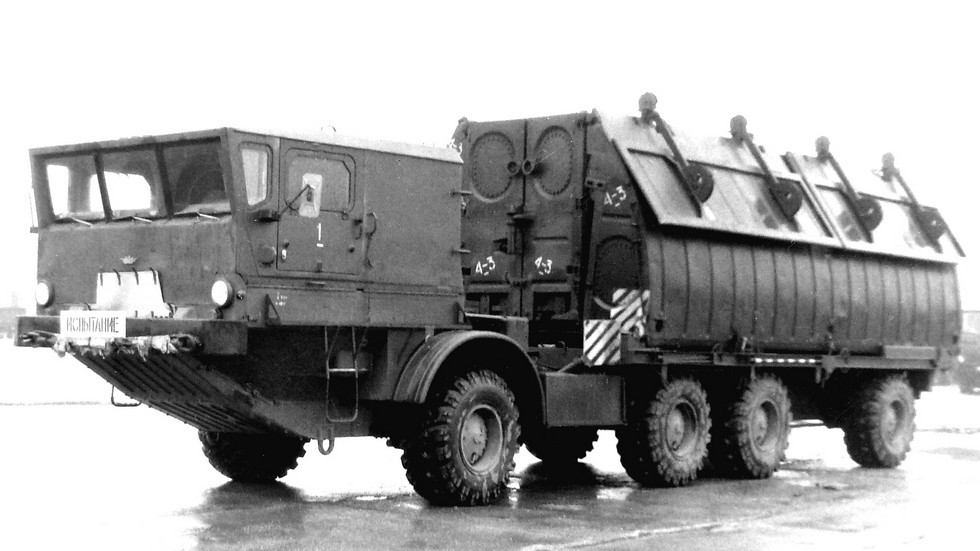

BAZ 135MBL was a special version of a 135MBK developed to transport sections of a floating bridge PP-91. It was accepted for military service in 1992 and was able to install a floating bridge with a payload of 60-120 tonnes and 13.8 meters wide roadway. The sections had dimensions - 7360x8280 mm. Diesel ships BMK-225 helped to align sections.

The chassis BAZ 135 MBL was equipped with a 12-tonnes winch and a system of droppong of sections of the bridge. Two prototypes of 135MBL passed factory tests, but never went into service. This was the last model in 135th range.
