BAZ » 135MBK

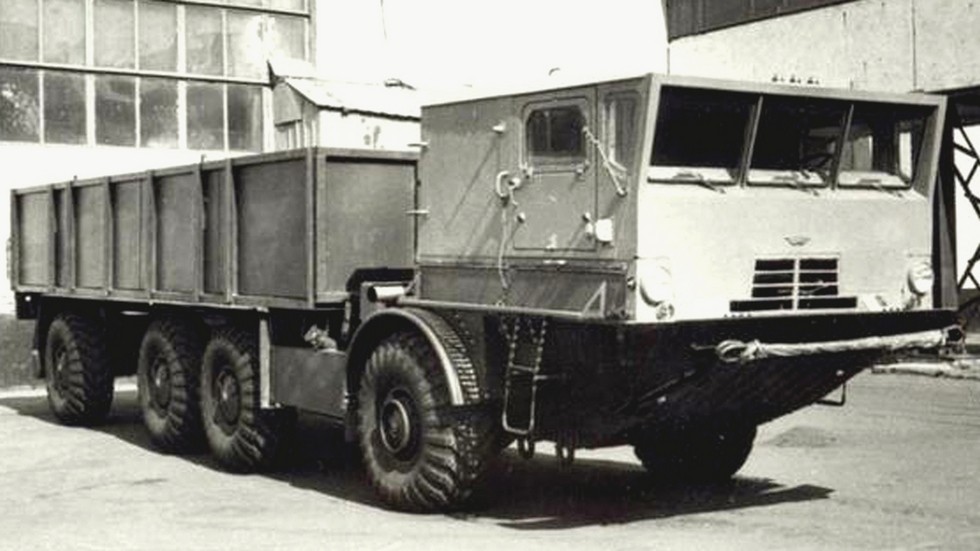

BAZ-135MBK was a special multipurpose truck based on a military 135MB with an increased payload up to 12.1 tonnes and developed to transport heavy aircrafts and work with a trailers with a GVCW up to 37.5 tonnes. It was equipped with the same cabin without protection screens and an all-metal flatbed cargo with internal dimensions 7696x2586 mm.

Two technical features: regular propelled shafts instead of constant-velocity joints and a 12-tonnes winch. Two 600 liters fuel tanks were installed, which allowed to go 1100 km without refuelling.

New wide-profilt tires (1200x500-508) increased traction, but reduced road clearance to 385 mm. Compares with the 135MB this version was 400 mm longer. Wide - 3000 mm, height - 2880 mm. Curb weight - 13 tonnes, GVW - 25.5 tonnes. Maximum speed - 60 kph, with trailer - 50 kph. Fuel consumption - 73 l/100 km.
