MZKT » 790200

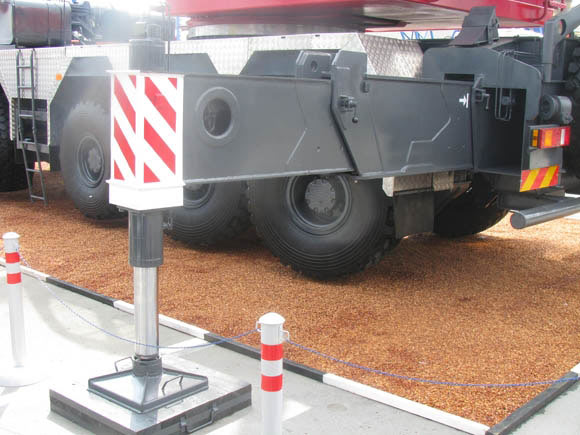

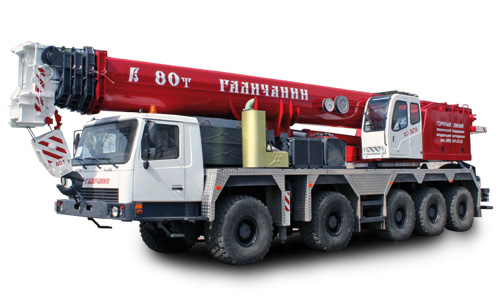

The special all-terrain chassis model 790200 with wheel arrangement 10x10, with the steering wheels of the 1st, 2nd, 4th and 5th axles, has a special crane frame with sliding bearings. It was developed under a contract with the Galichsky Crane Factory, from the Galich city, Russia, for installation of crane equipment eith a hook load capacity is 80t. The chassis is equipped with a 8-cylinders, V-type diesel engine TMZ 8431.10 with output of 346 kW (470 hp) at 2100 min-1 and a maximum torque of 1860 N*m. The transmission is hydromechanical GMP-500, 6-speed, with a power takeoff to drive the crane equipment. Total weight of the crane is 65000kg and max speed is 70 km/h. 790200 chassis is equipped with a new MAZ cabin, which has not been used by MZKT before. The crane, built on the chassis 790200 by Galichisky Crane Factory, called KS-74713. Crane system is driven by the diesel engine Deutz BF4M1013EC with an independent start system and the hydraulic pump Sauer-Danfoss. KS-74713 can be equipped with two cargo winches - main and additional. Supporting contour of the crane is 8,47 to 7,6 m. It is possible to carry out work in the range of 360 degrees without loss of telescopic characteristics.

790200790200790200790200
790200790200
