MZKT » 750001

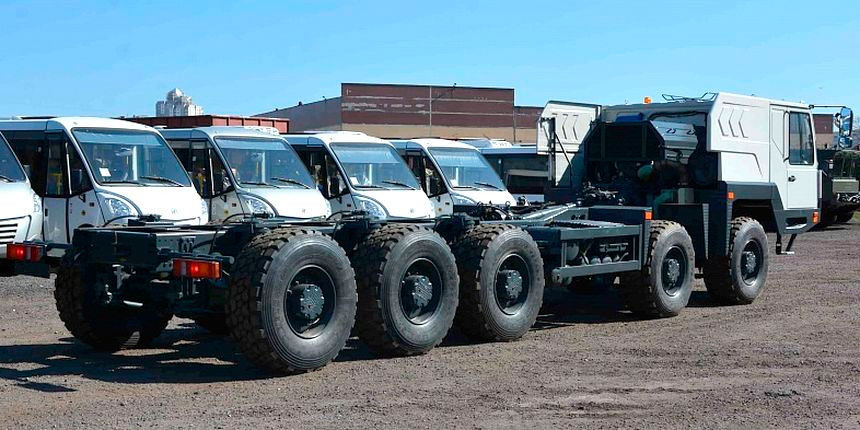

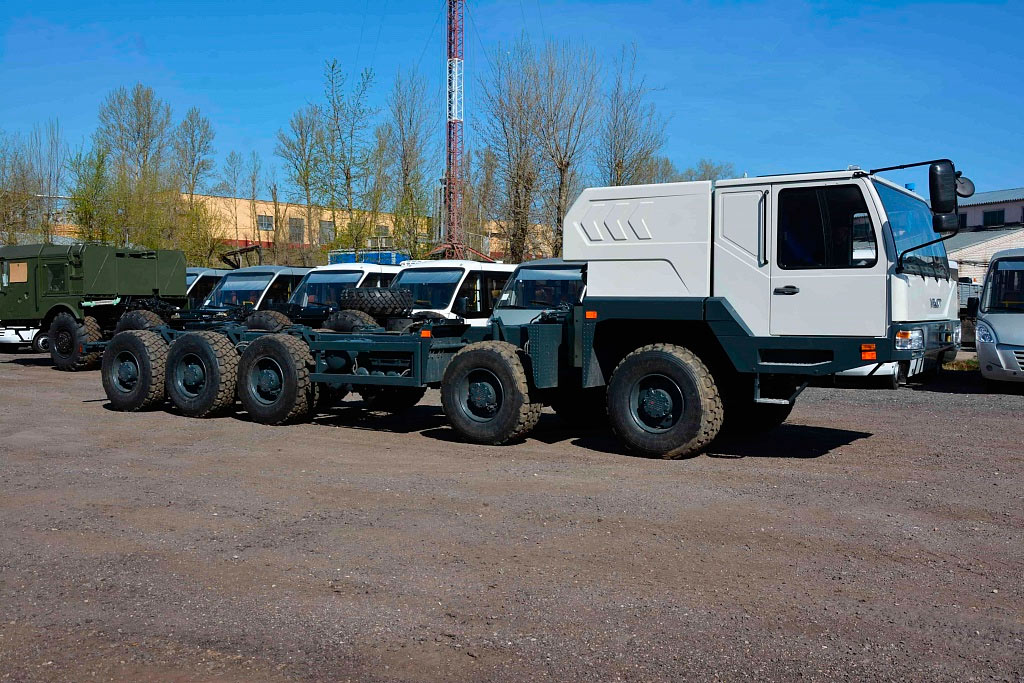

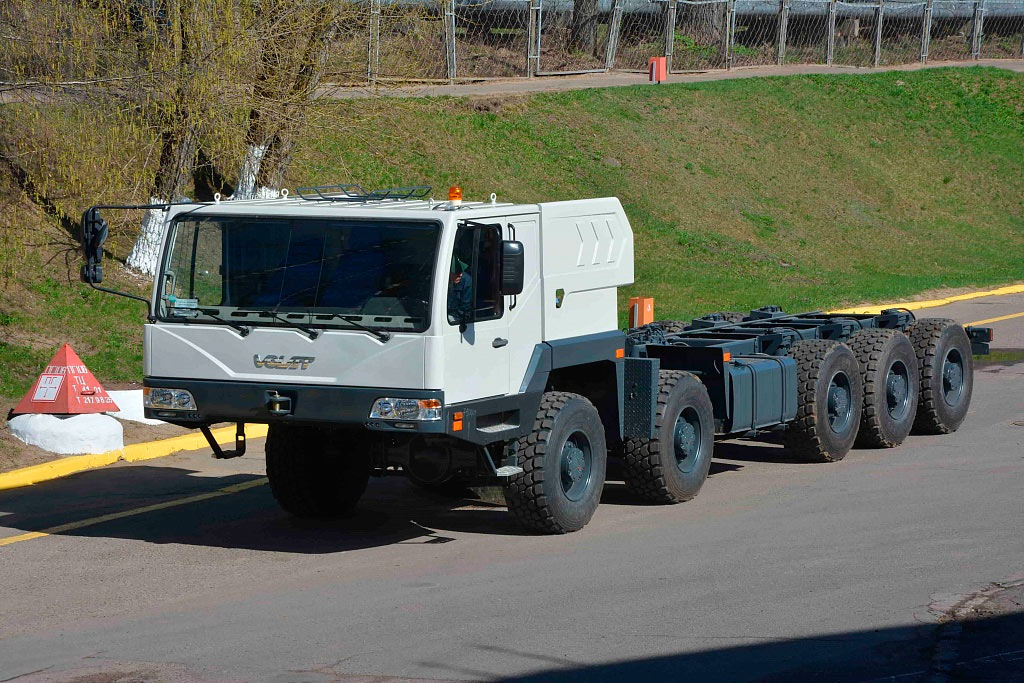

In May 2018, MZKT showed a special chassis MZKT-750001 10x10 for mounting a 100-ton supercrane KS-84713-6 made by Galichsky Autocrane Plant. It is unified with the chassis MZKT-740001 10x4, which was shown last year.

The AWD chassis allows using a mobile crane on objects with different types of access roads. The frame, by the way, is a longitudinal type with crossbars and a reinforced front bumper. MZKT-750001 is equipped with a diesel engine YaMZ-653-05 with a power of 420 hp and torque of 1985 Nm, which meets the Euro 5 environmental standards. The gearbox is a 9-speed Fast Gear 9JS220TA made in China. Transfer box - two-speed, with interlocked differential. The chassis has drum brakes.

A central tire inflation system is used. Suspension of the first two axles is dependent spring, third-fifth - dependent hydrobalance. The GVW of the chassis is 59 tonnes. Overall dimensions: length - 11,650 mm; width - 2,750 mm; height on the cabin - 2,700 mm. Turning radius is 15 m. The capacity of the fuel tank is 500 l. The maximum speed is 50 km/h.

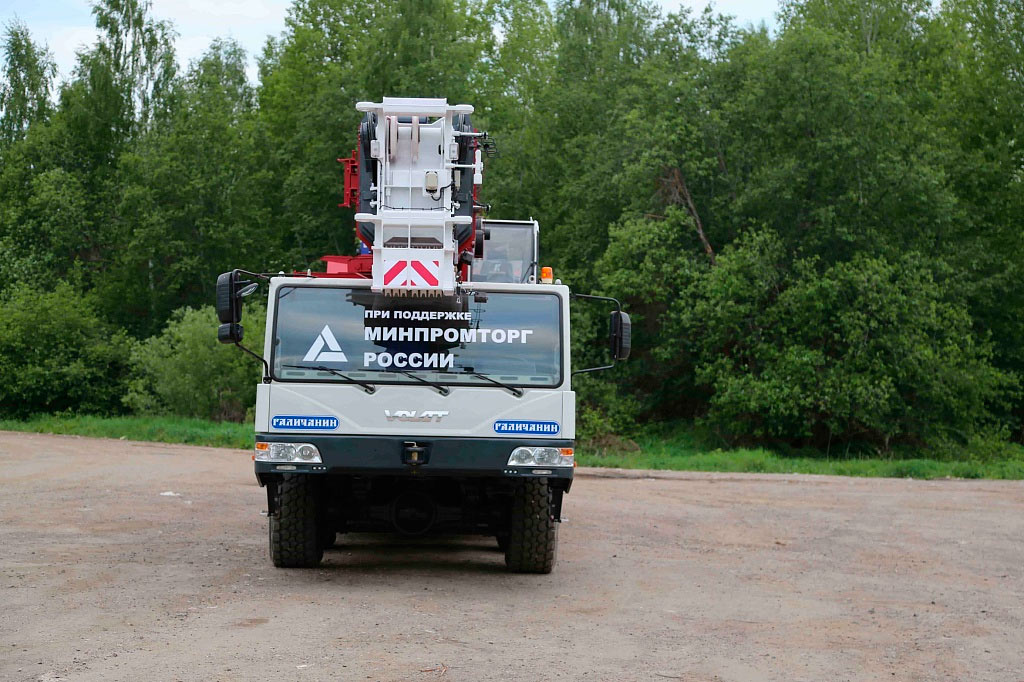

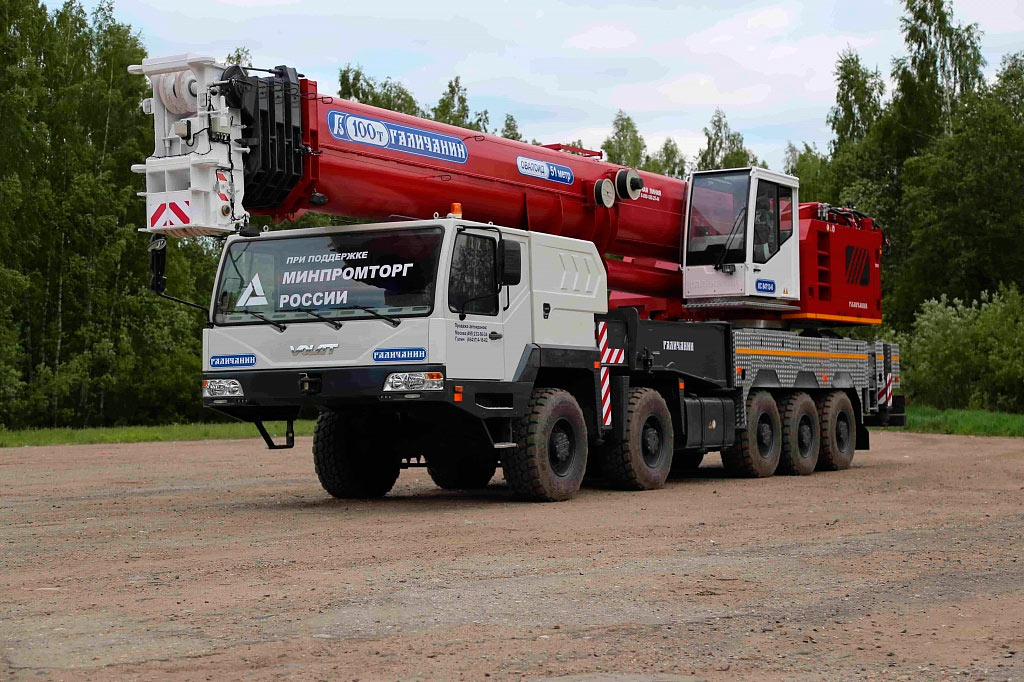

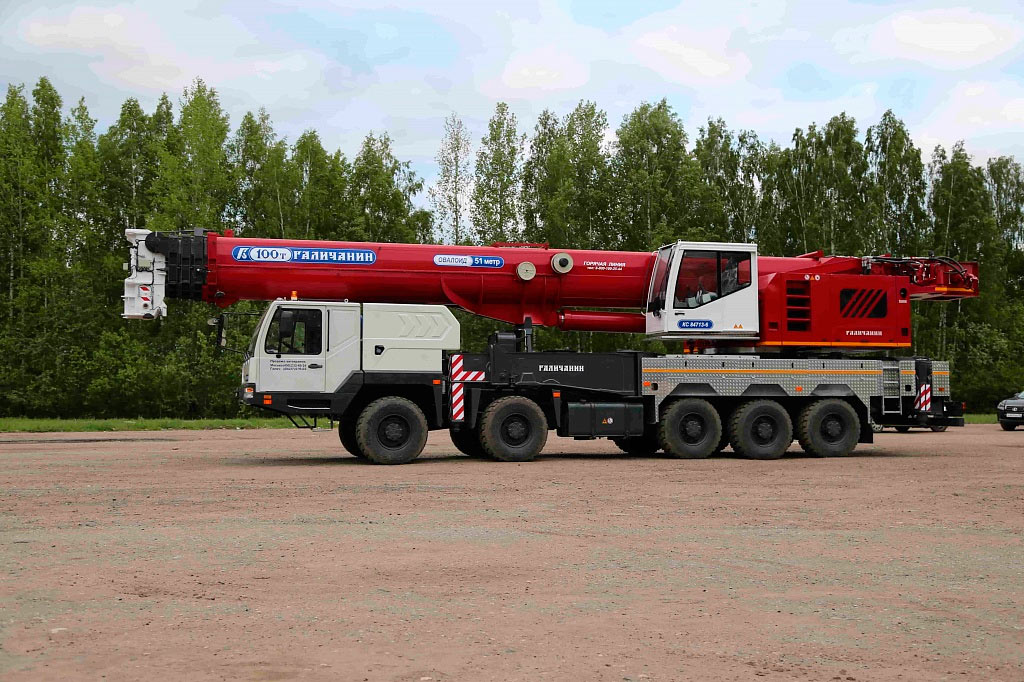

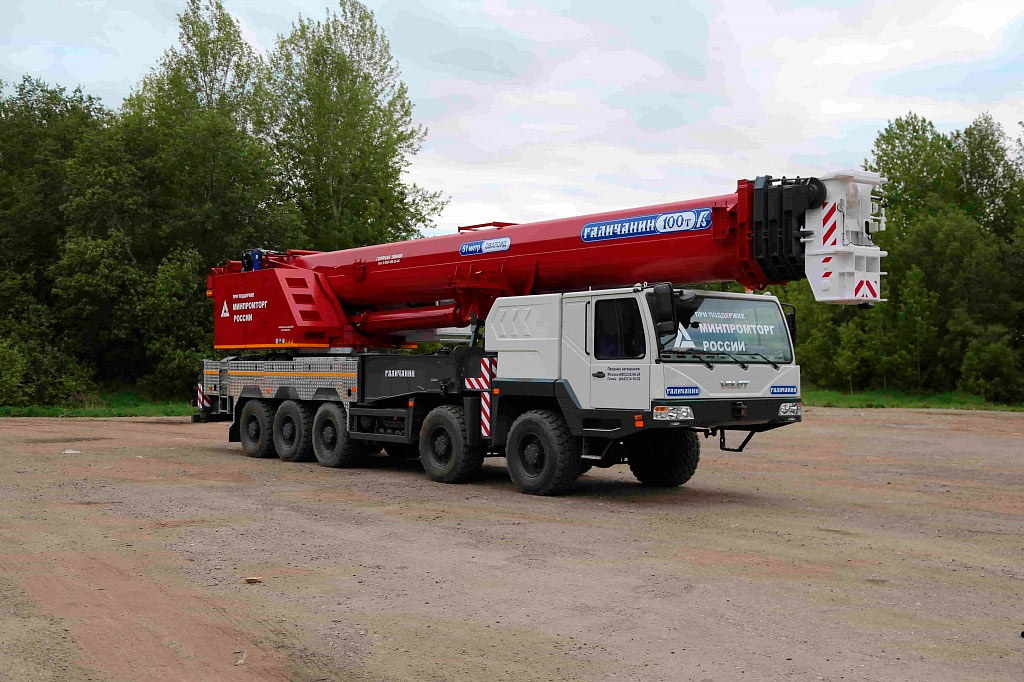

The crane KS-84713-6 has a 5-section telescopic boom of elliptical profile 51 m long. The crane mechanisms of the turning part have an independent drive from the diesel engine YMZ-534.
