Ural » 532365

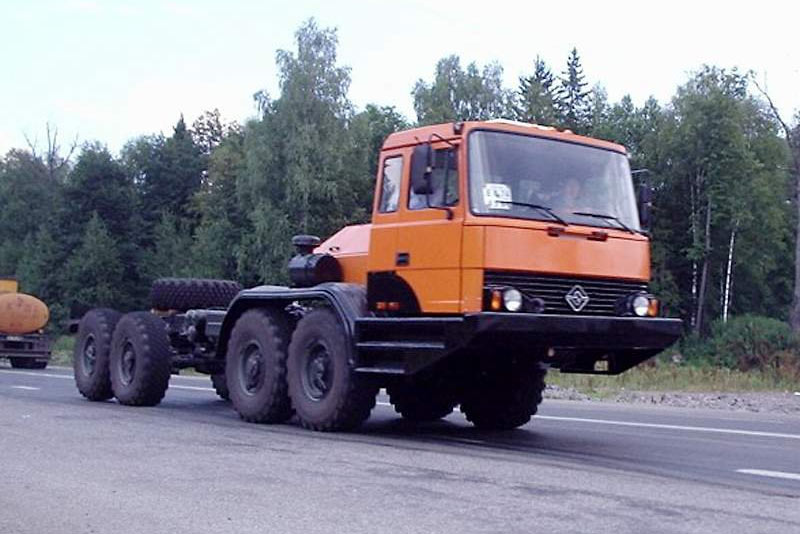

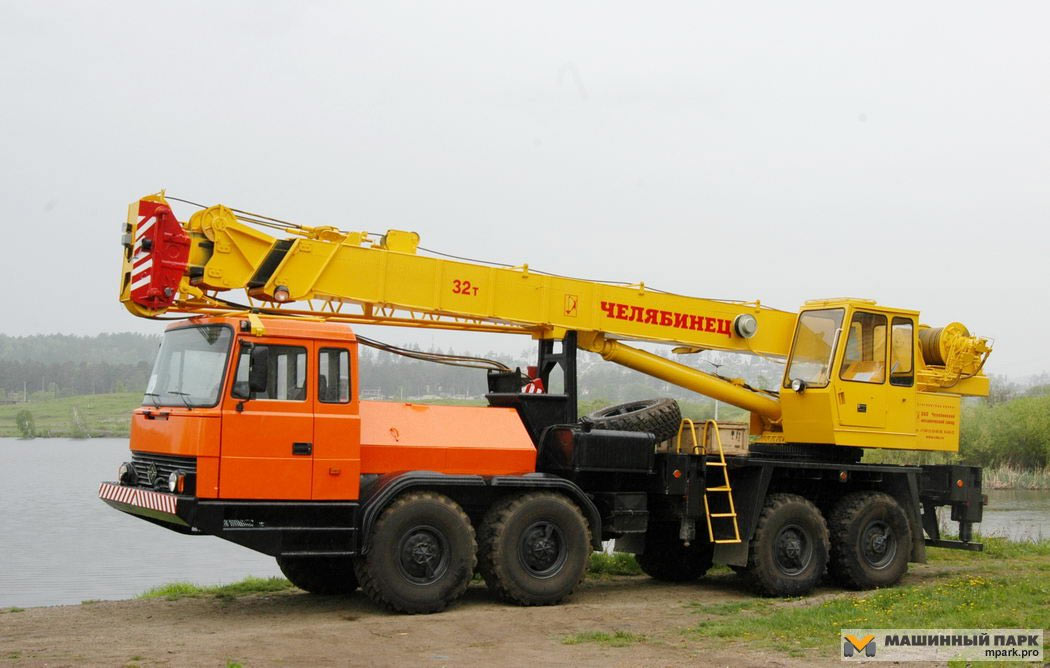

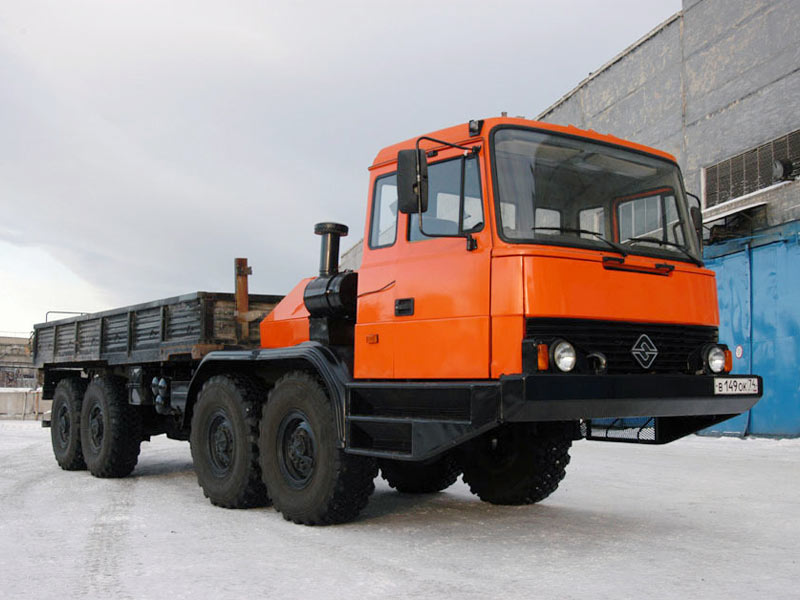

Ural 532365 is a special 8x8 chassis with the IVECO cabin shifted forward intended for installation of a large-sized equipment. The mounting length of the frame was increased to 6.1 meters, payload — to 15.2 tonnes. This layout allows the installation of cranes with payload of 30-35 tonnes and other heavy equipment.

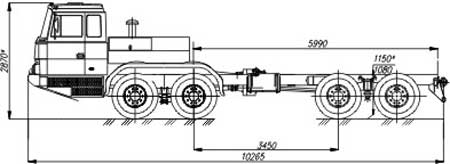

Overall dimensions — 10,265x2500x2870 mm. Turning radius — 15 meters. GVW — 26,100 kg. The engine is YAMZ 238B diesel with a volume of 14,86 liters and power of 220 kW (300 hp). Gearbox — YAMZ 238U3, 8-speed manual. The suspensions are on semi-elliptic leaf springs. Top speed — 65 kph. Fuel consumption at 60 kph — 43 l/100 km.

532365532365532365532365

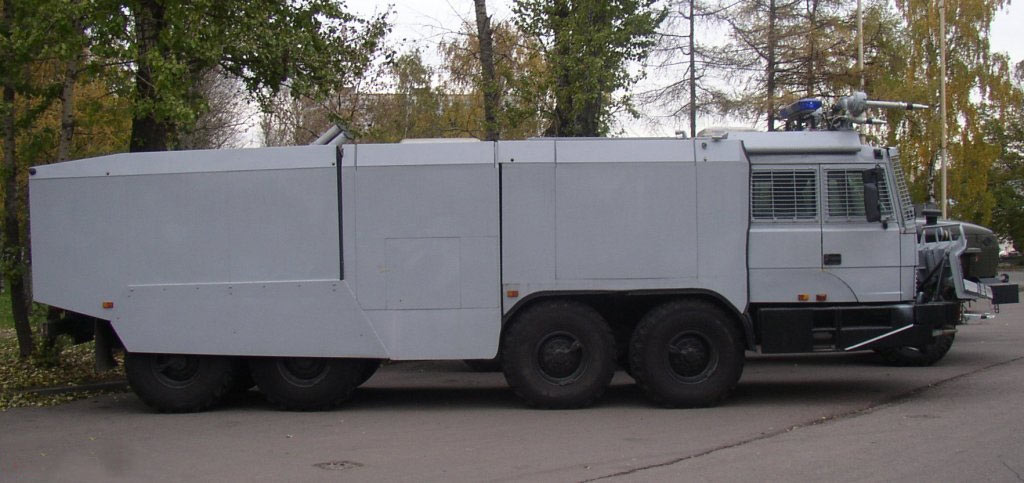

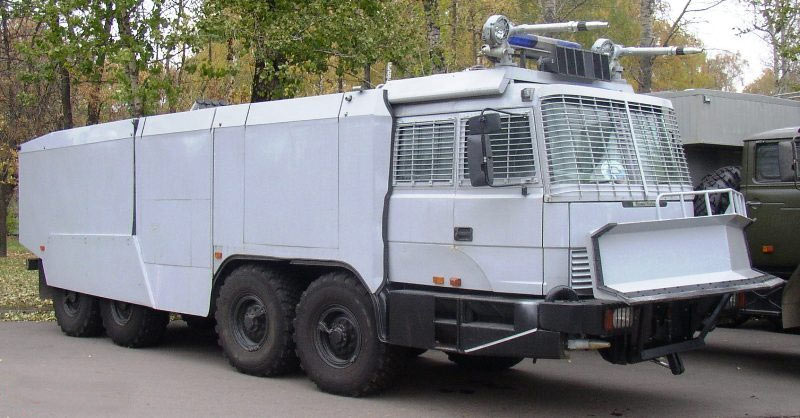

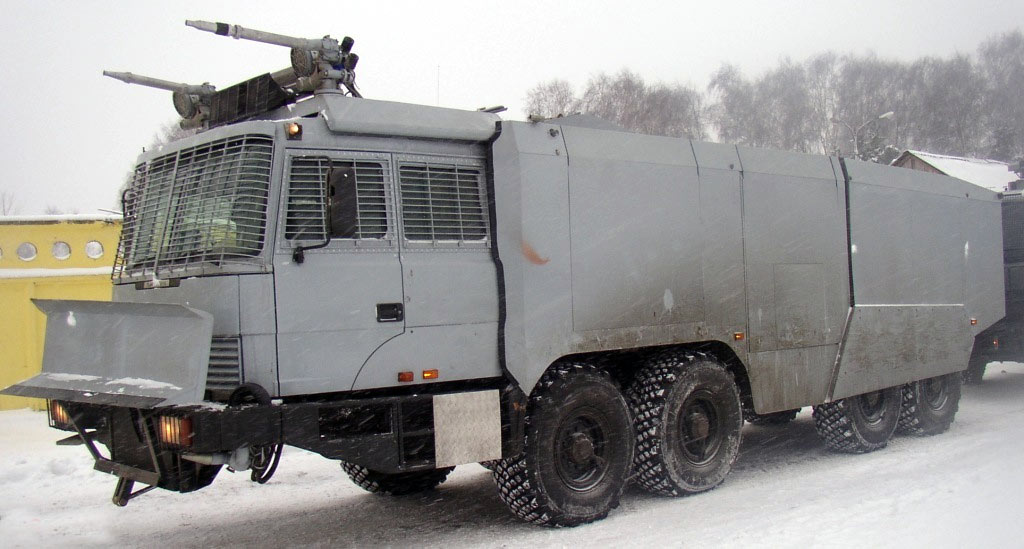

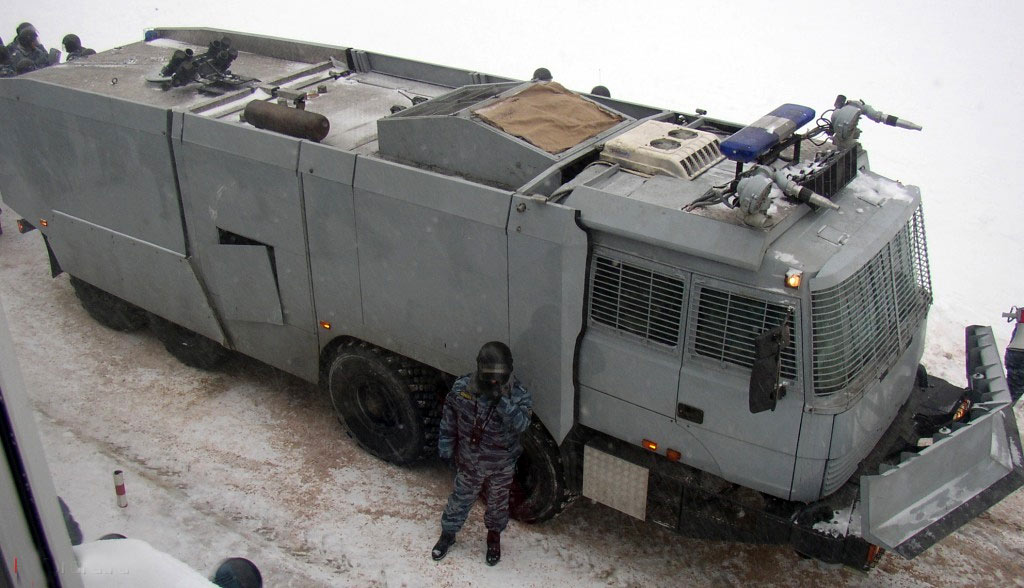

The 'Avalanche-Huracan' prototype on the Ural 532365 chassis
532365532365532365532365
The 'Avalanche-Huracan' prototype on the Ural 532365 chassisThe 'Avalanche-Huracan' prototype on the Ural 532365 chassisThe 'Avalanche-Huracan' prototype on the Ural 532365 chassis
