Tonar » 45251 '13

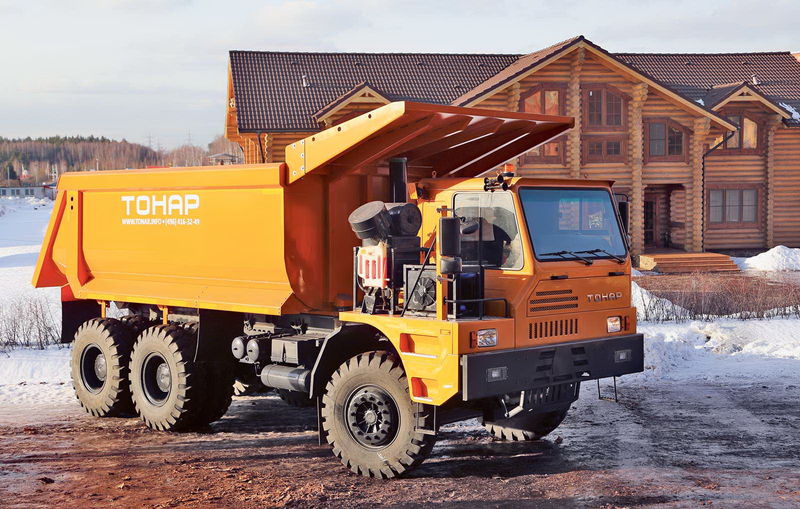

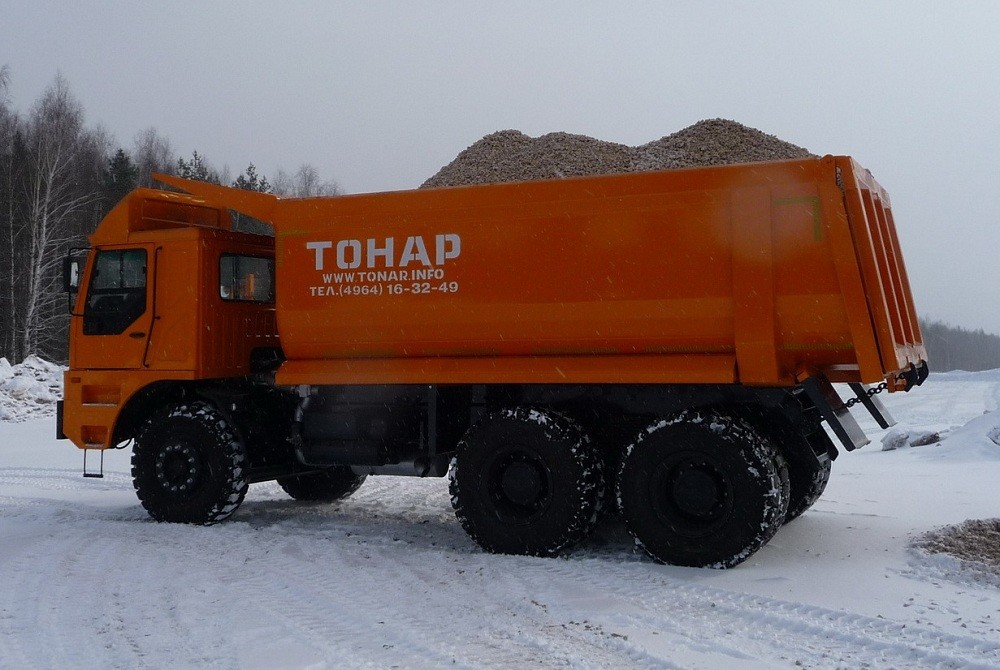

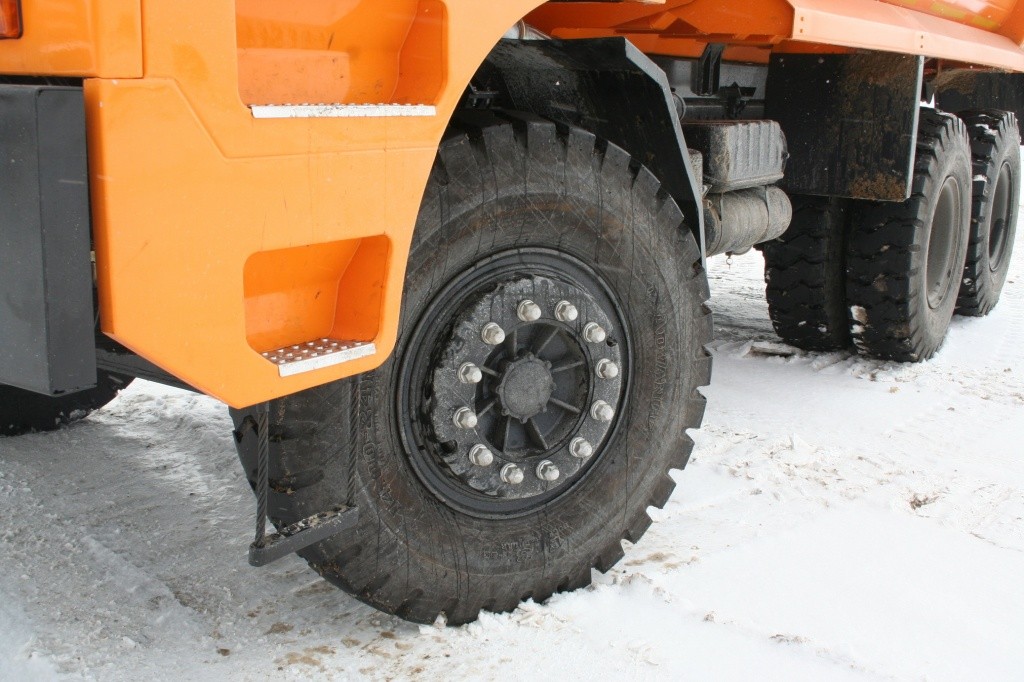

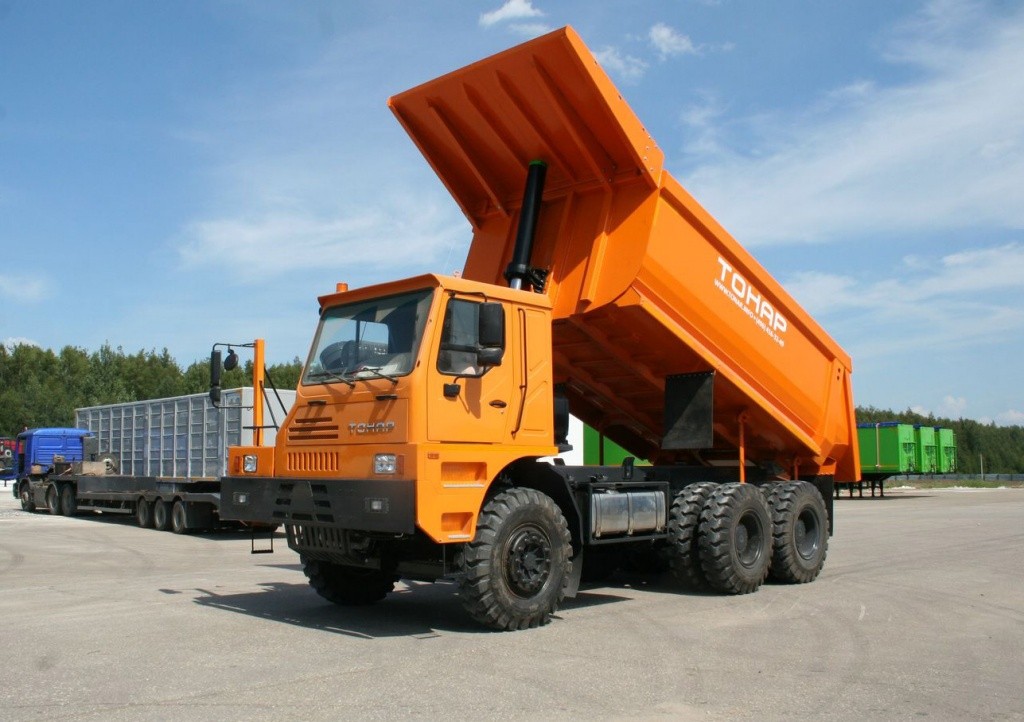

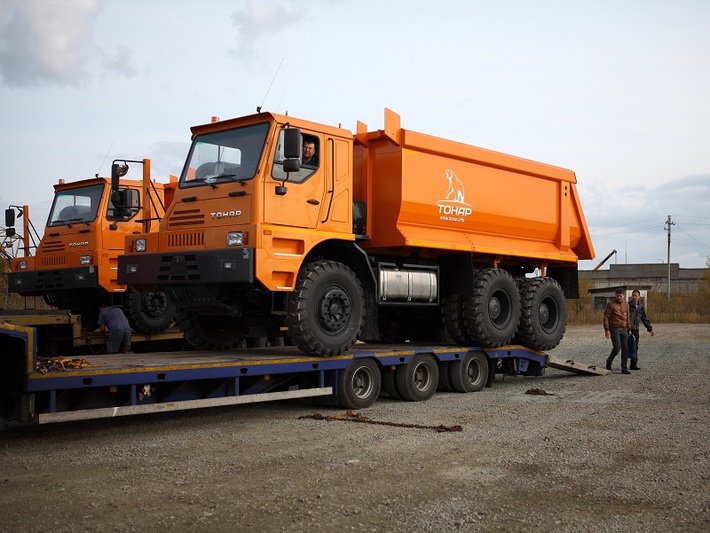

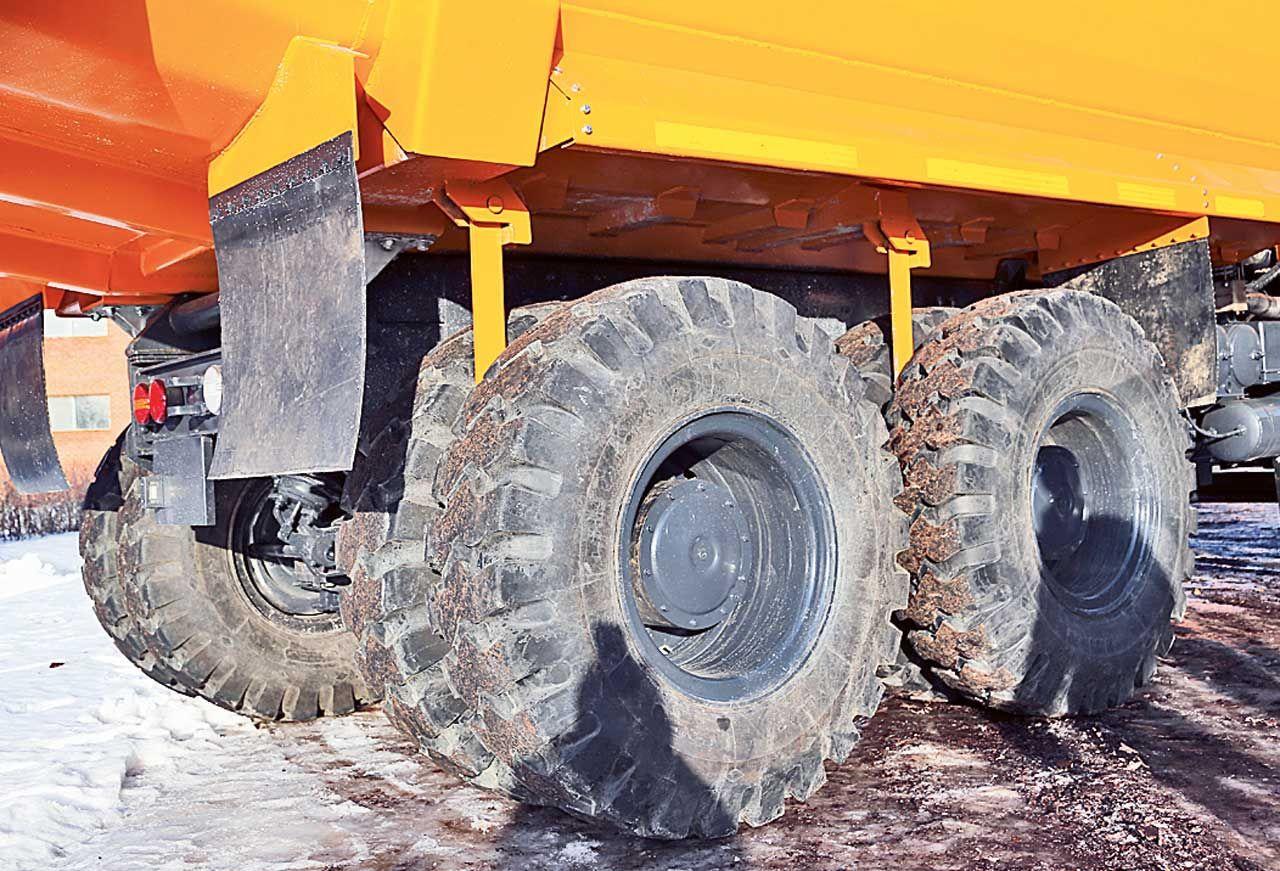

In 2013, Tonar started producing off-road dump trucks 45251 with a payload of 45 tonnes and 25 or 37 cub. meters bodies. This model is fitted with heavy-duty units. For example, axles are made by Chinese company Shaanxi HanDe Axle with banjo-style cast beams and payload of 25 tonnes each. The front axle has 13 tonnes payload.

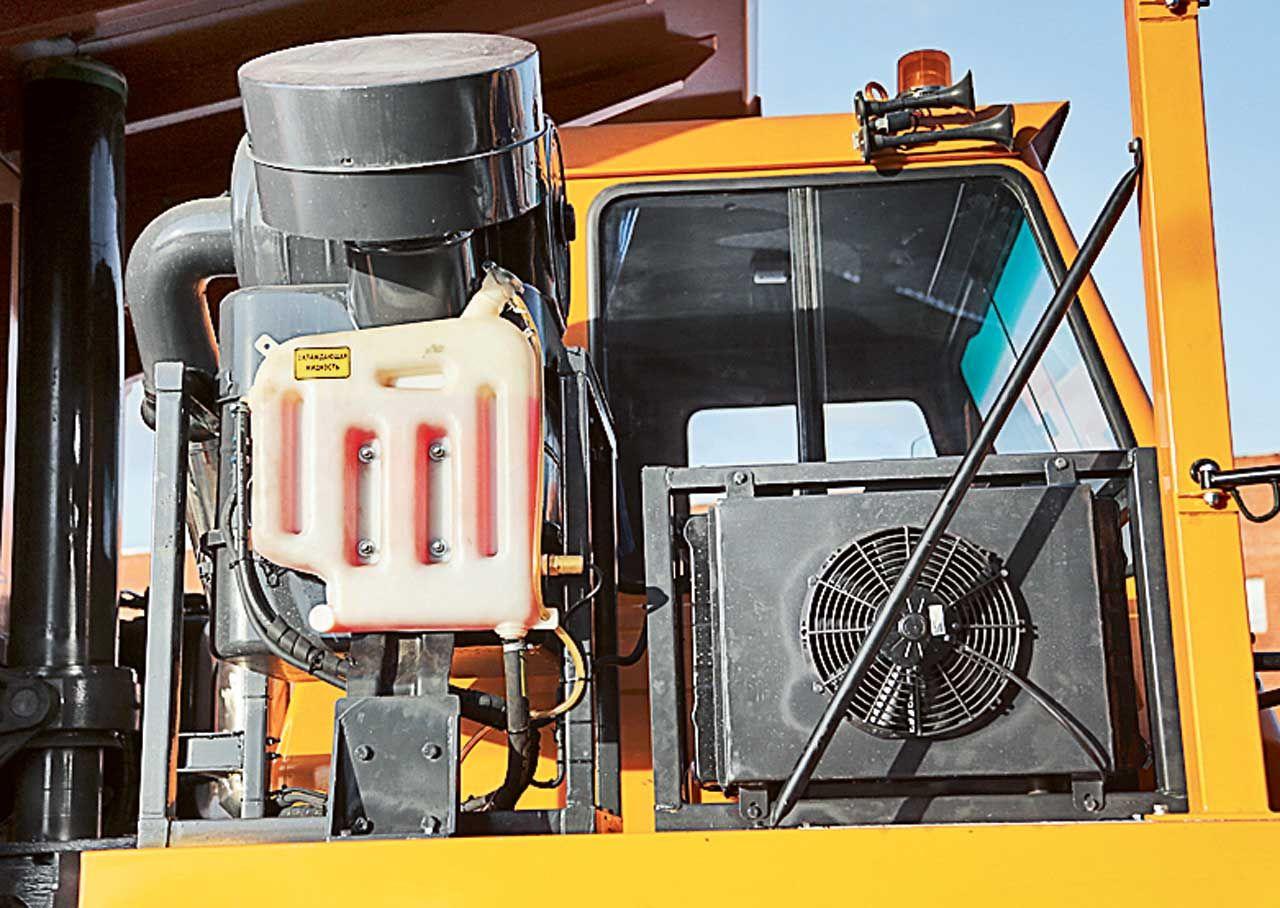

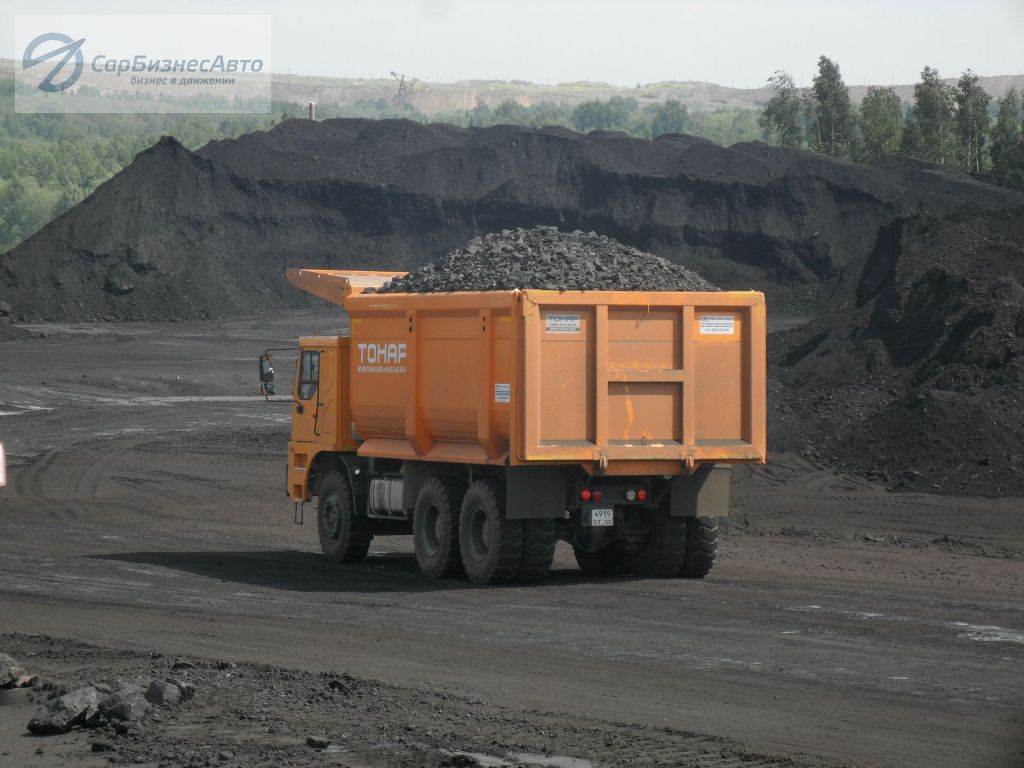

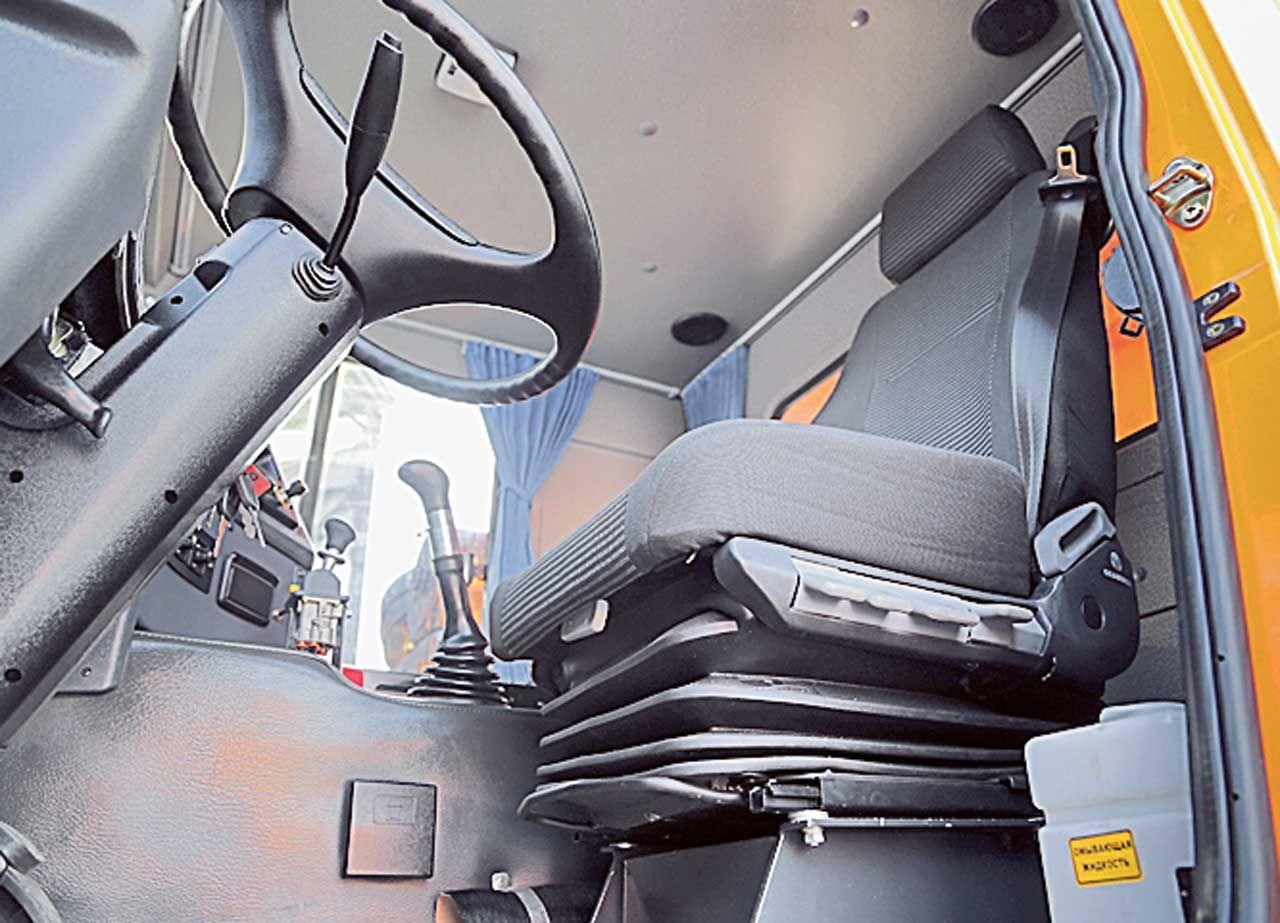

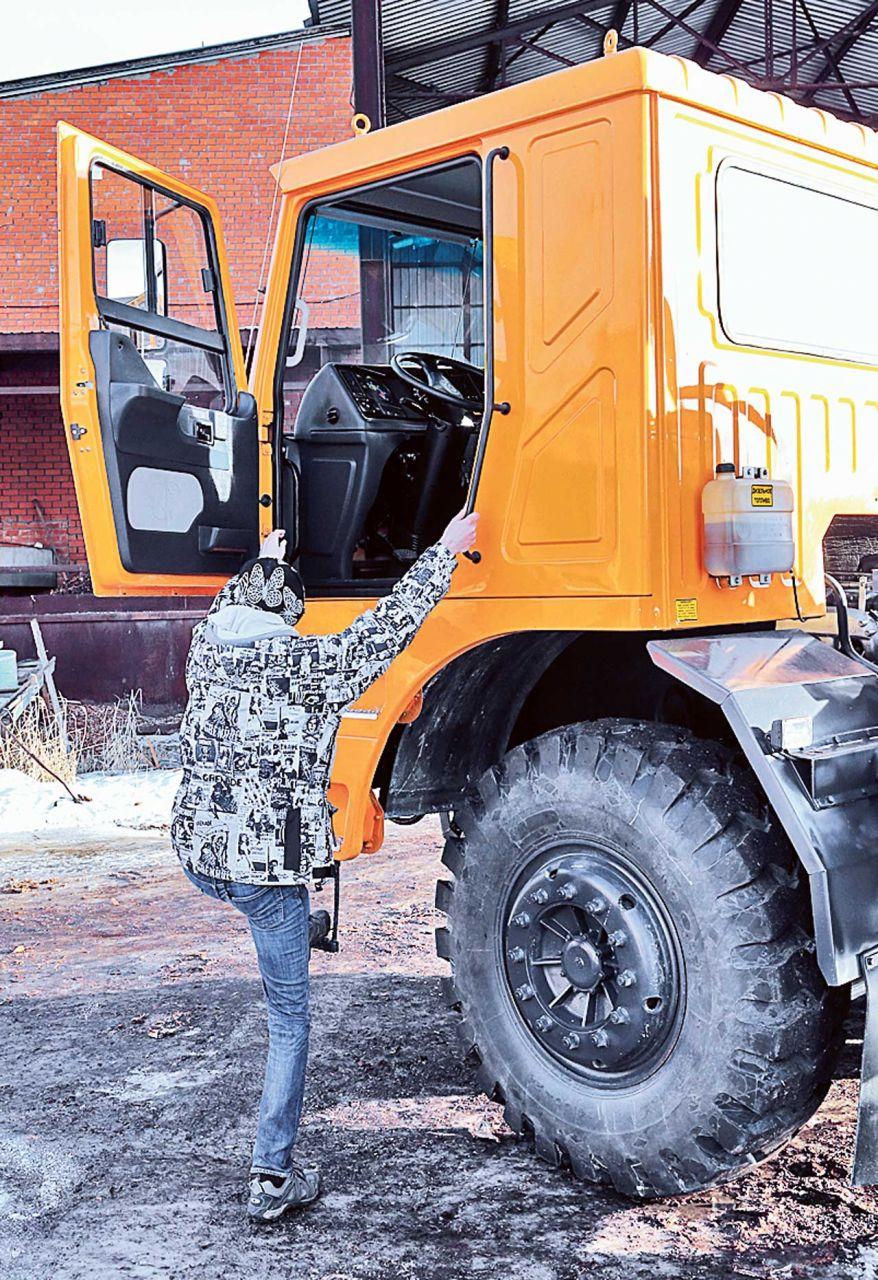

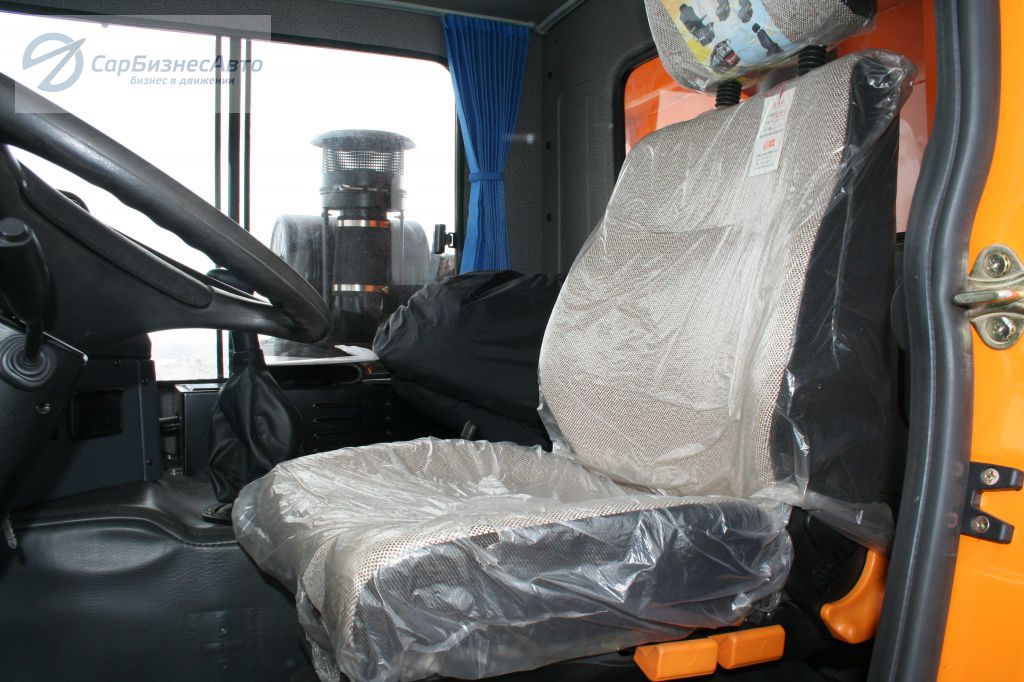

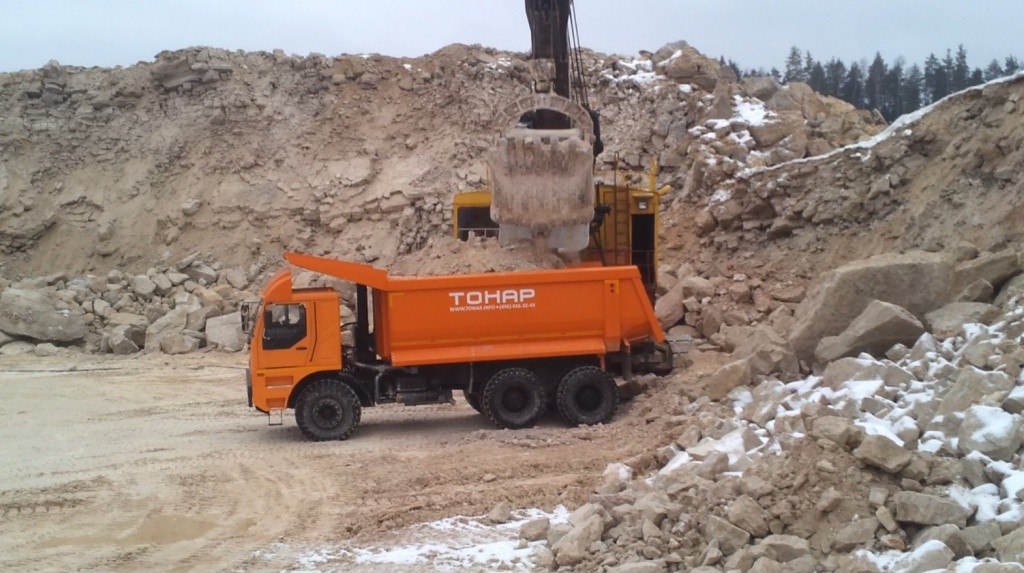

The Tonar 45241 is equipped with a Renault DCi11 engine produced in Russia under YAMZ-650 name. This 11.2 liters engine has output of 412 hp at 1900 rpm and 1870 NM at 1200 rpm. Gearbox is 9-speed manual Fast Gear 9JSD180 made in China. The single place cabin is also from China and used there on several models. There are two variants of dump body: 37 cubic meters for coil or 25 cubic meters for rock. 50 copies were made. In 2017, it was replaced by the second generation with the same designation.
