BelAZ » 75710

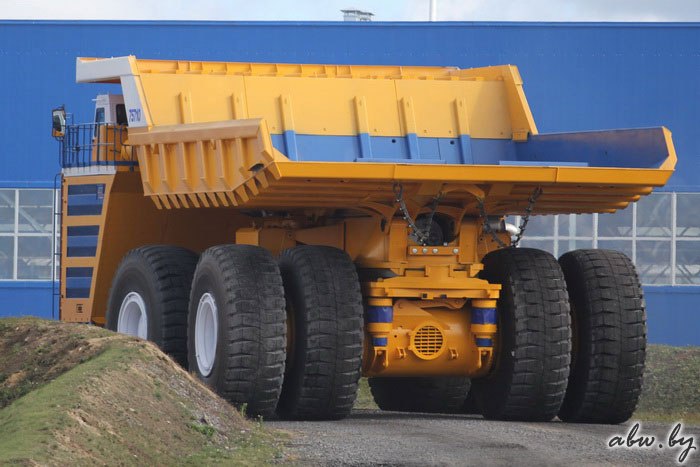

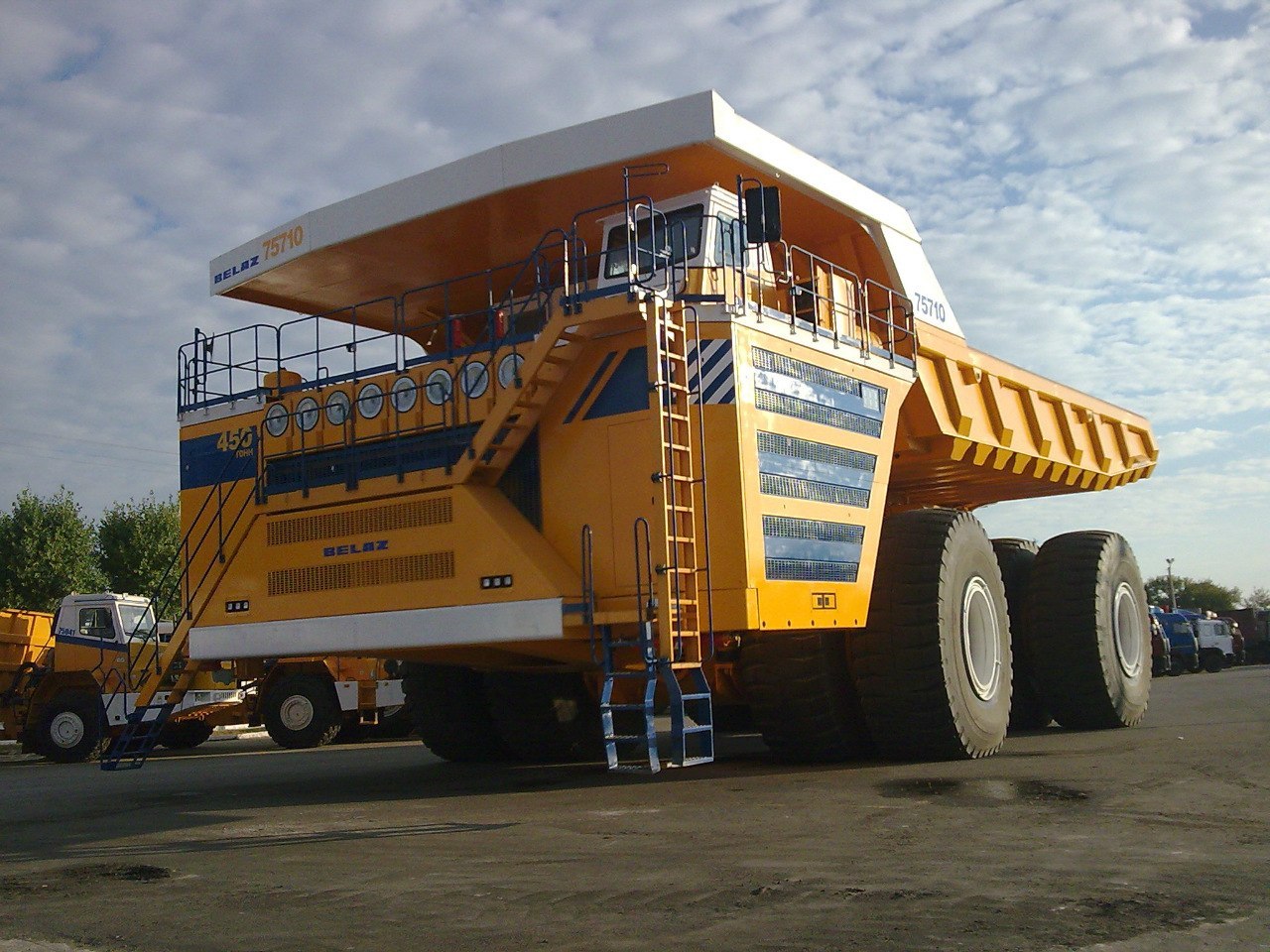

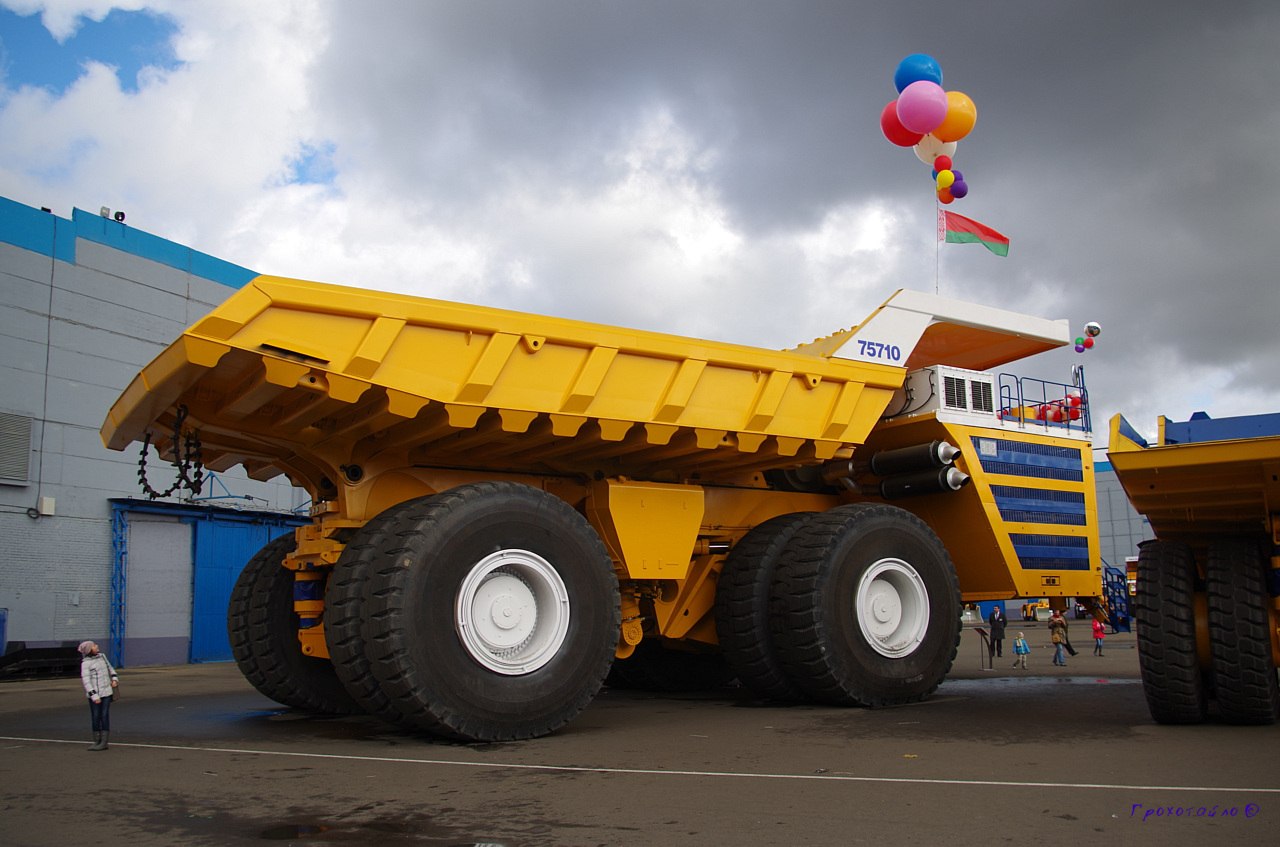

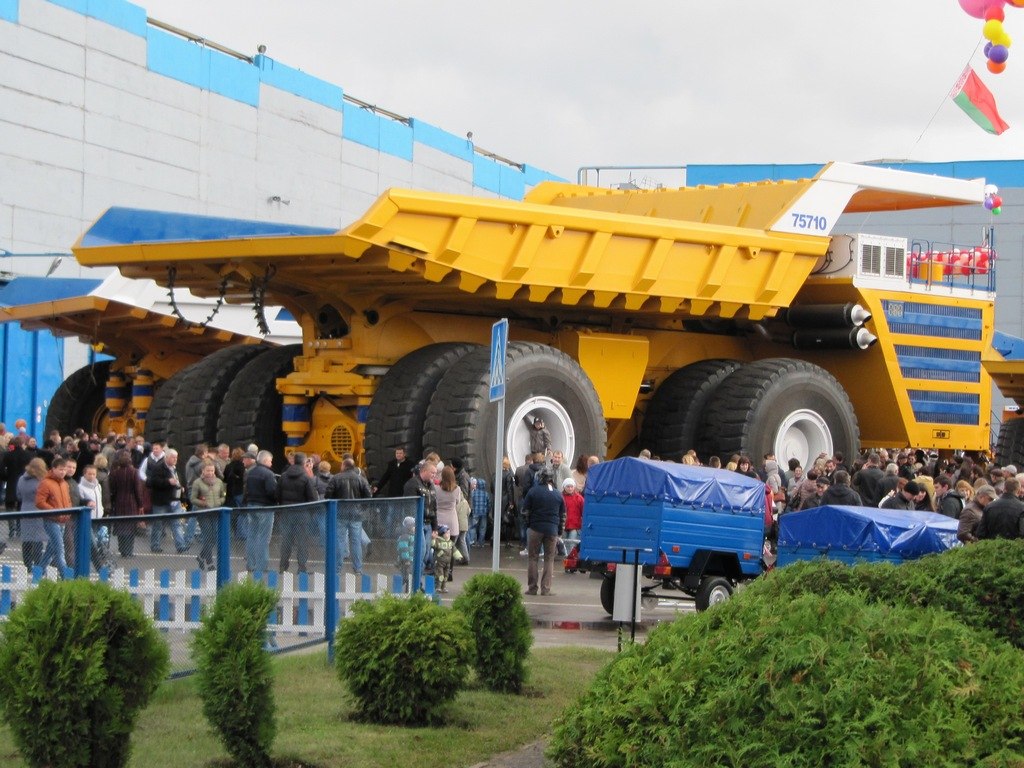

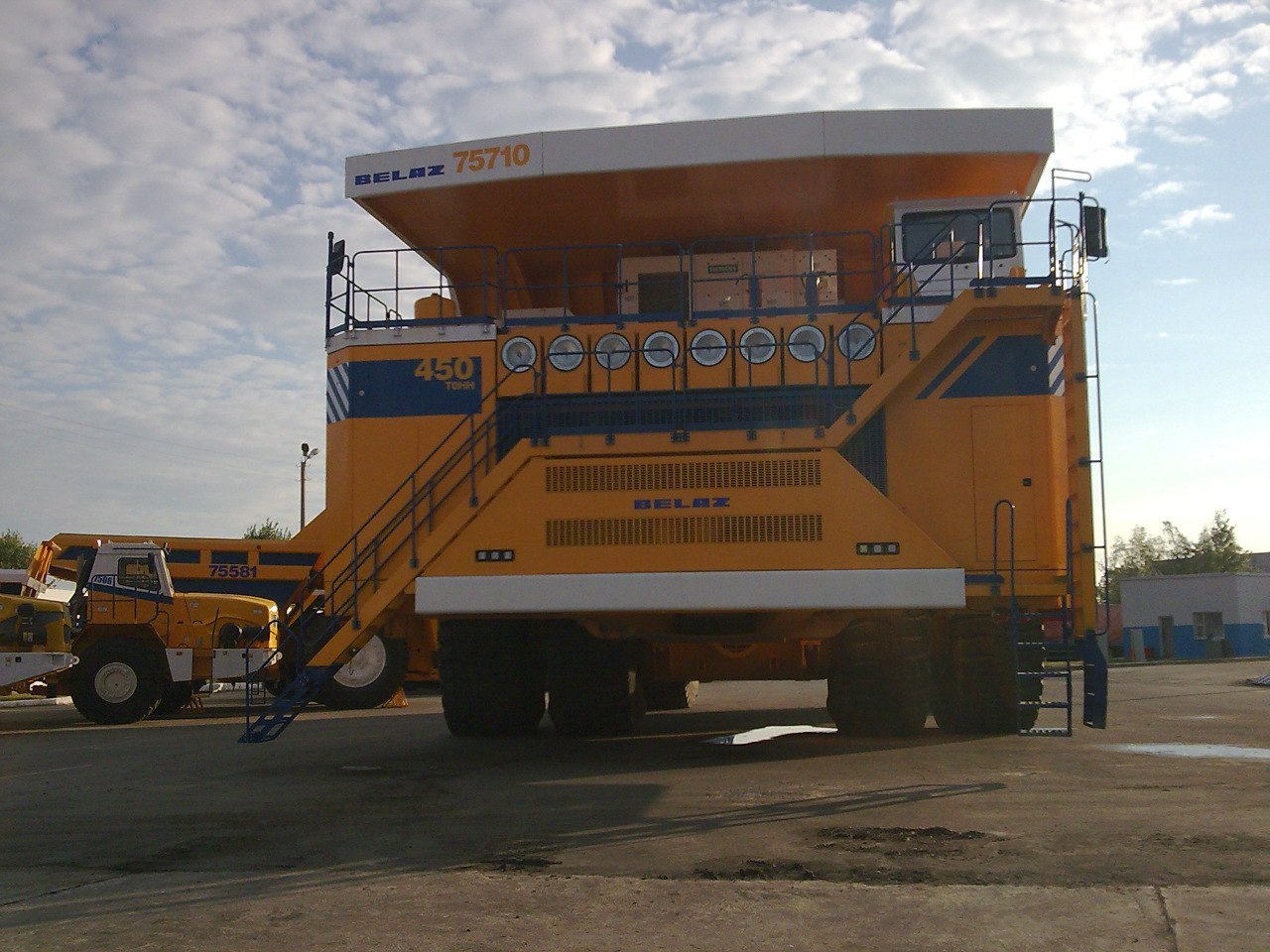

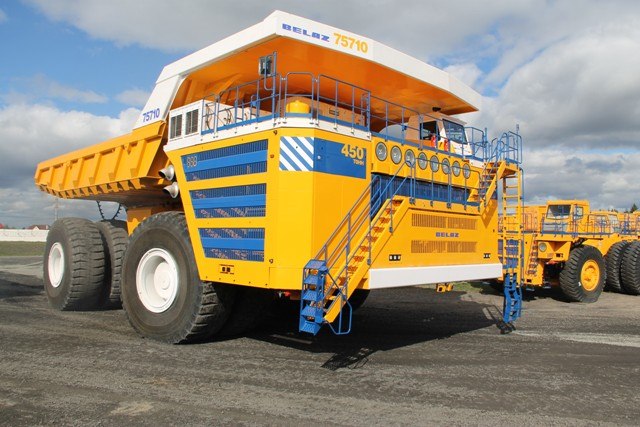

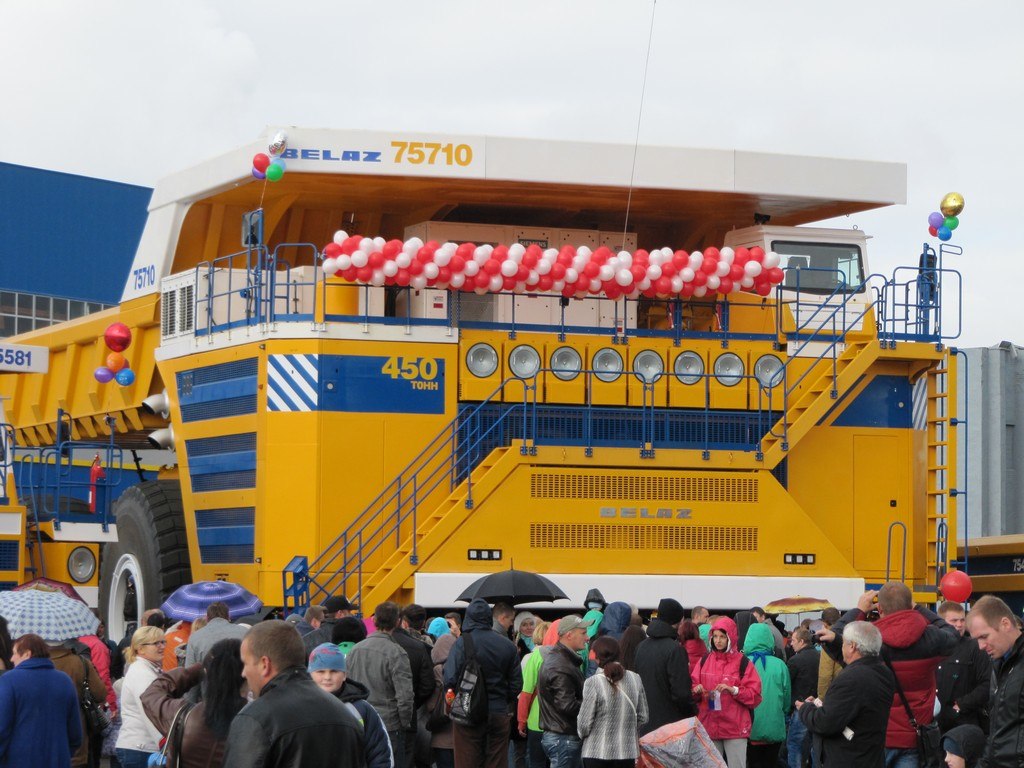

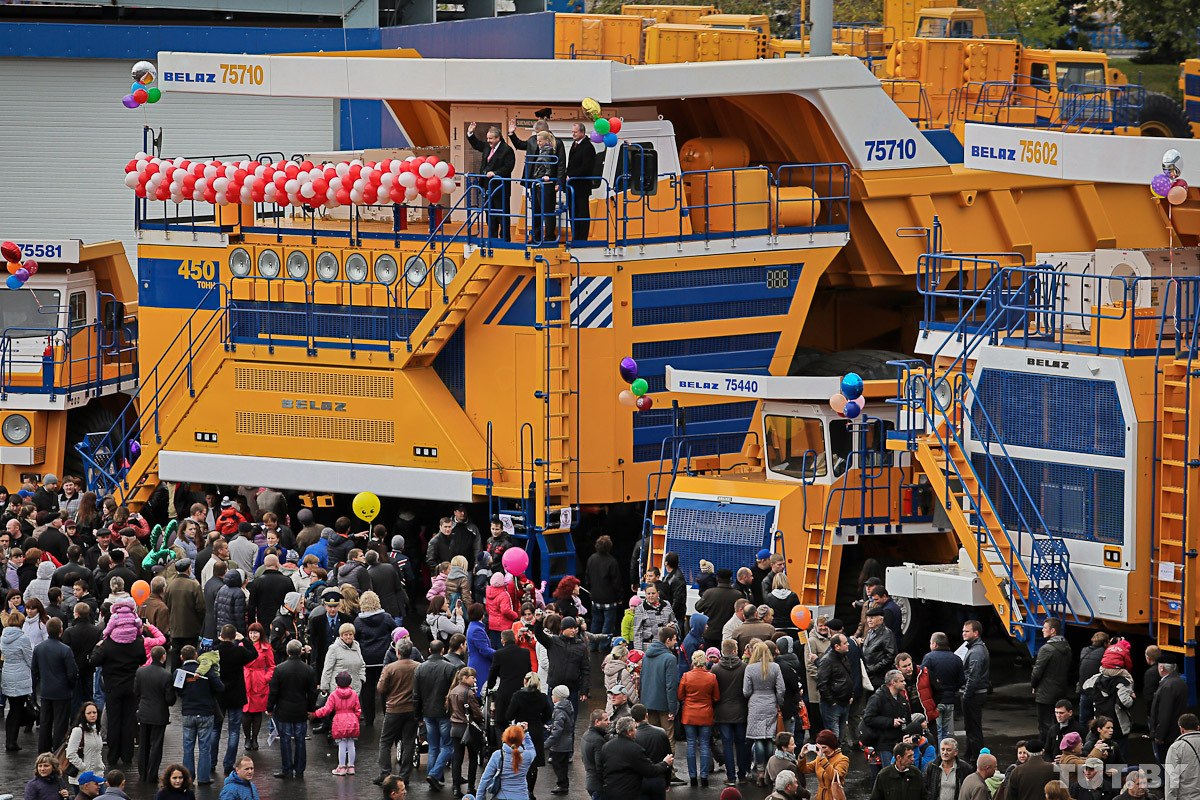

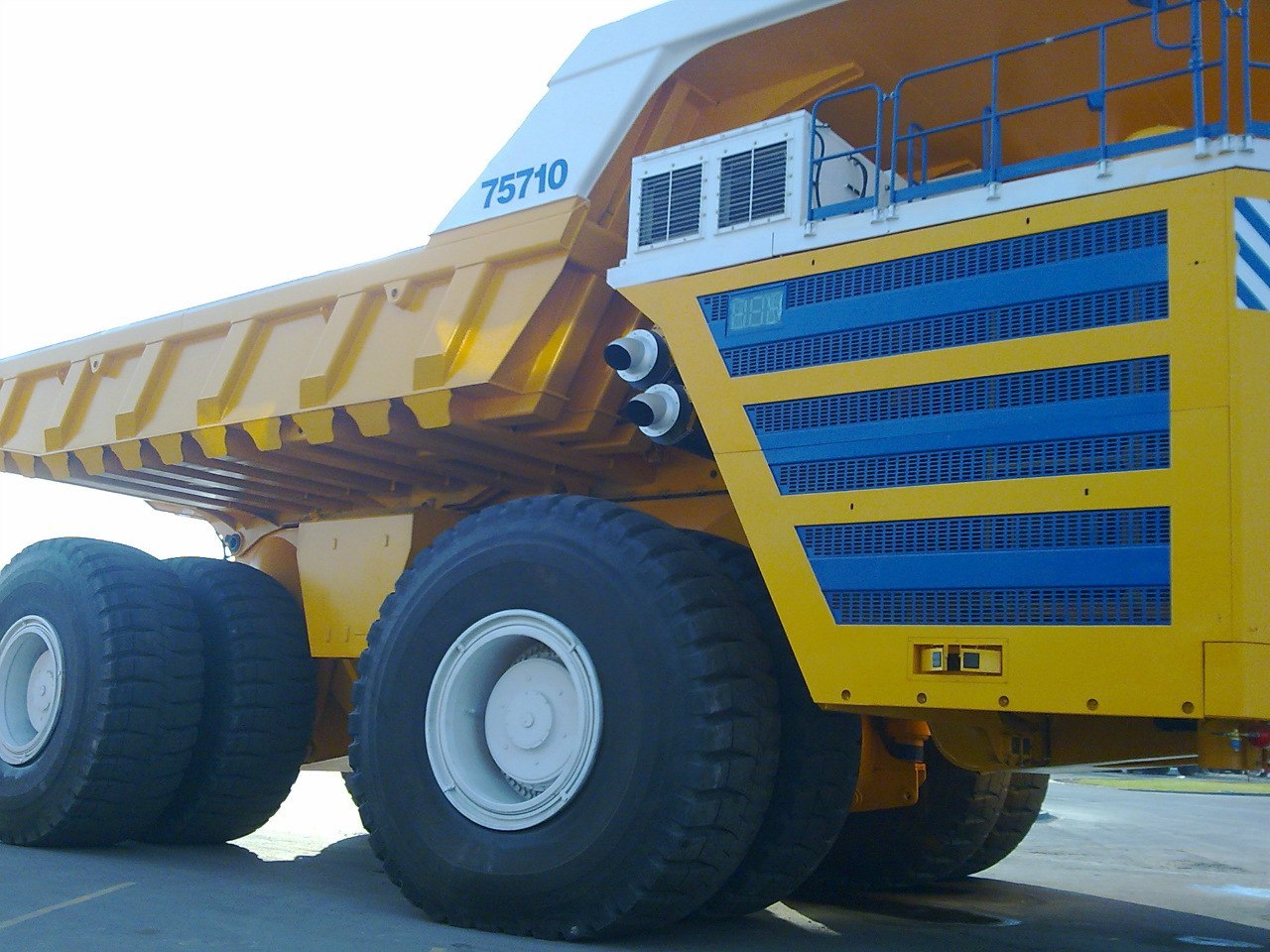

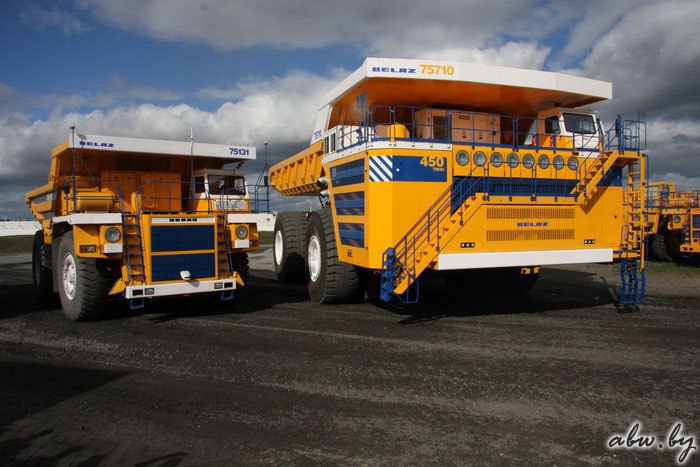

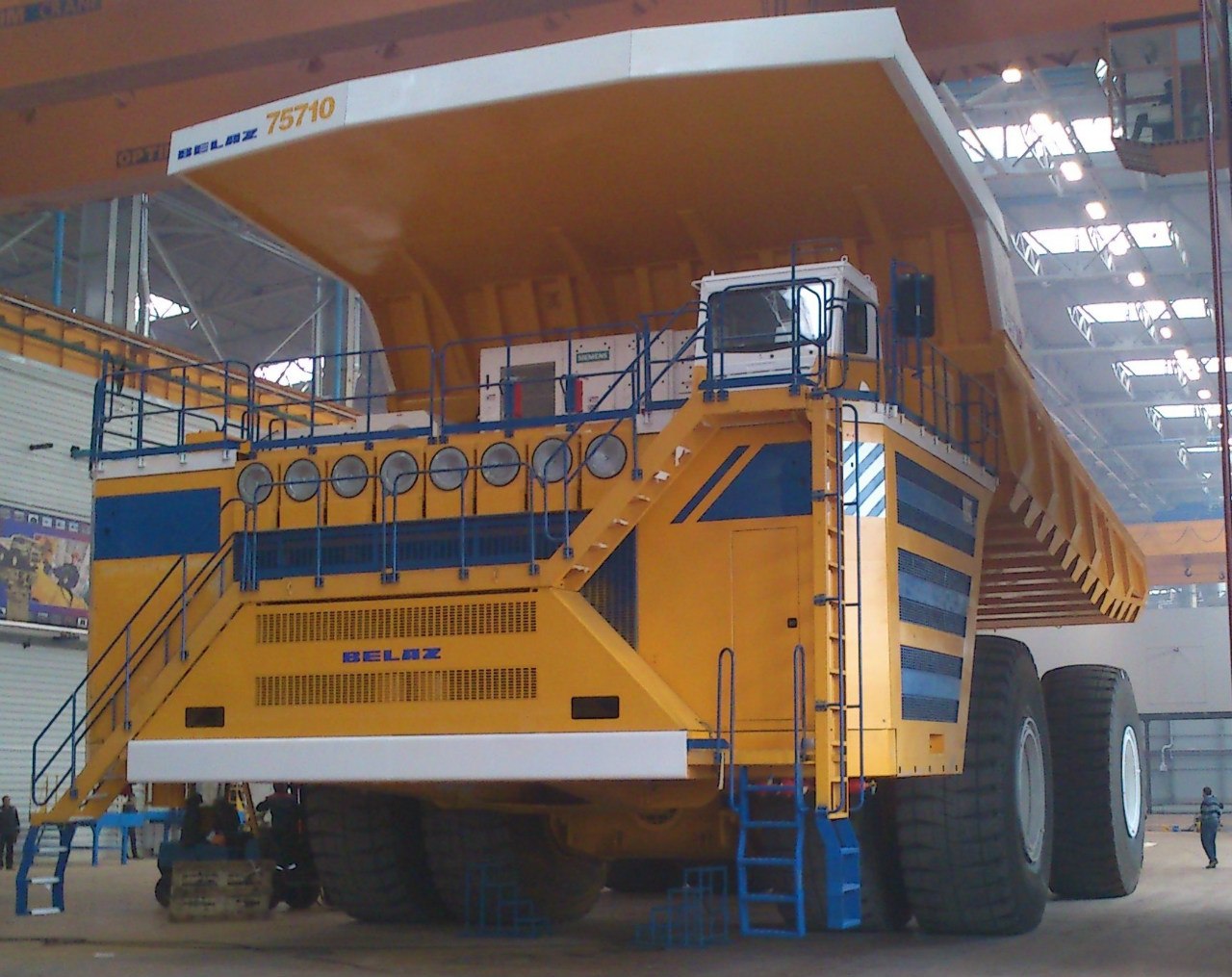

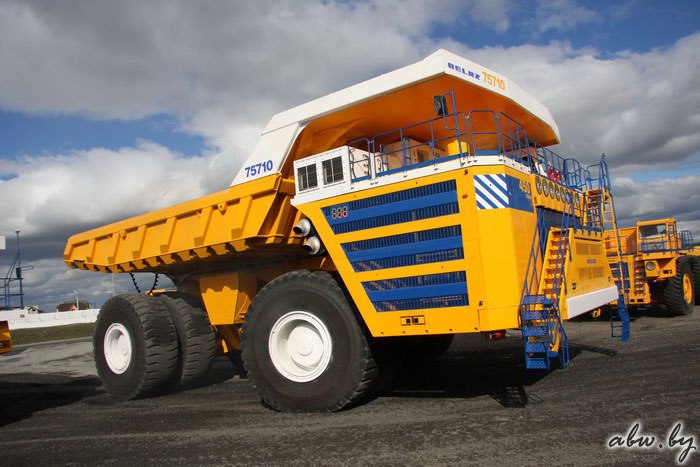

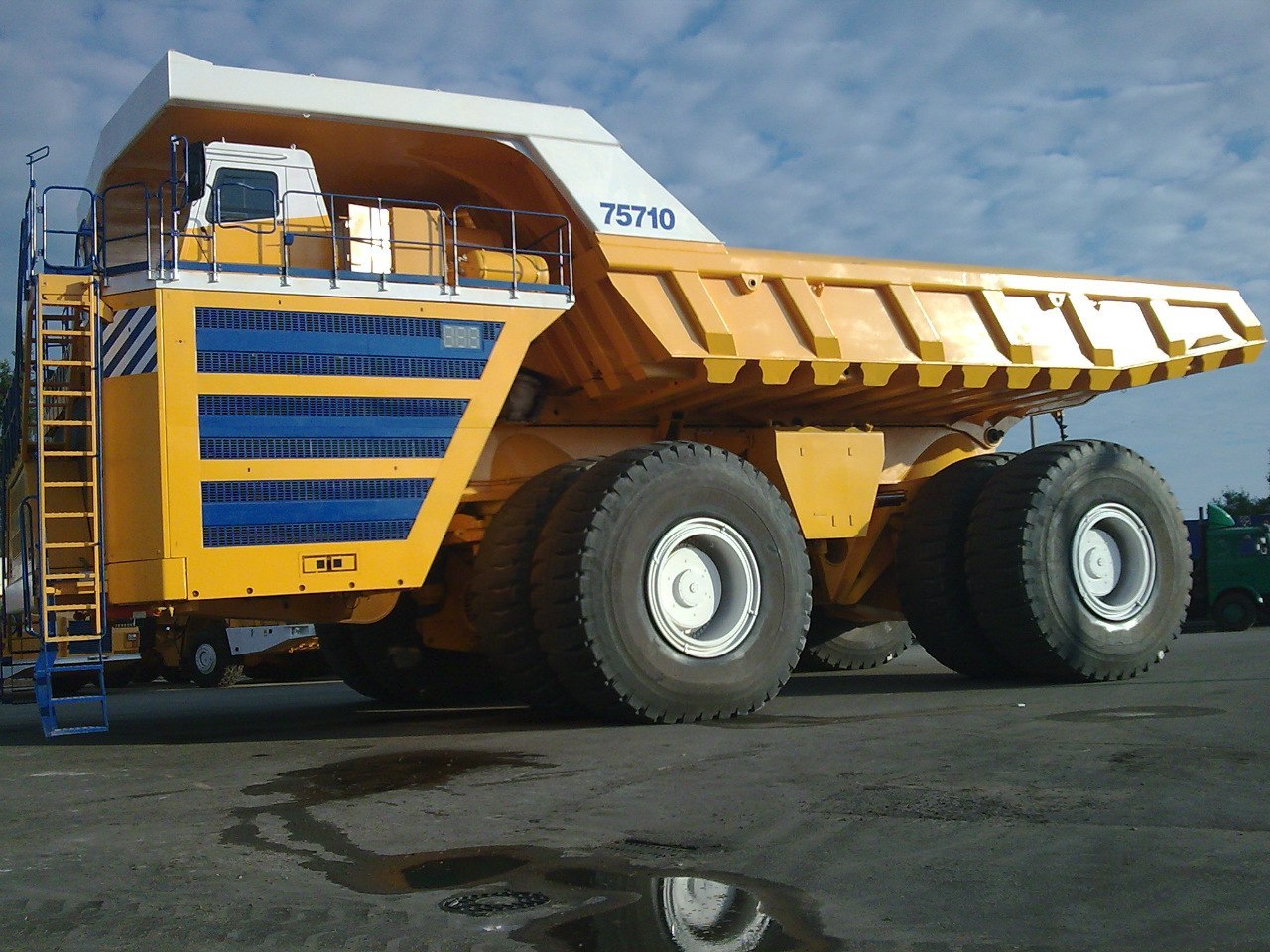

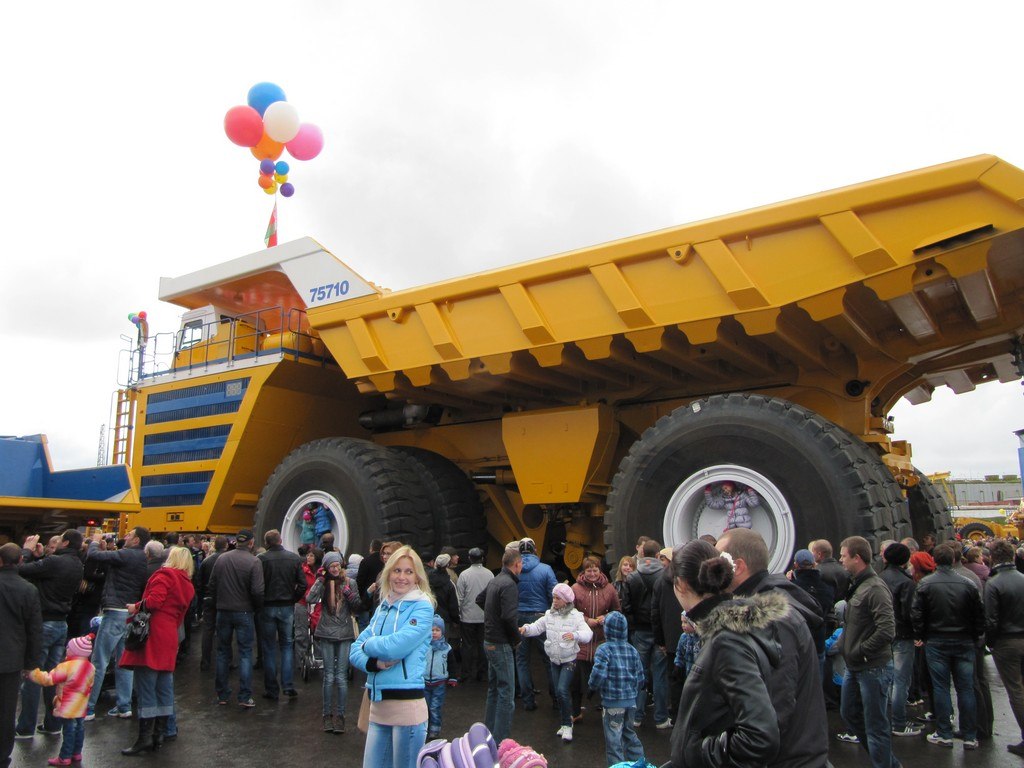

The largest dump truck in the world in 2013 is BELAZ 75710. Producing of this truck is started at the Belarusian Automobile Plant. Dump truck is capable of carrying 450 tonnes of cargo. GVW is 810 tonnes. Before this record belong to Terex MT 6300AC with a capacity of 400 tonnes.

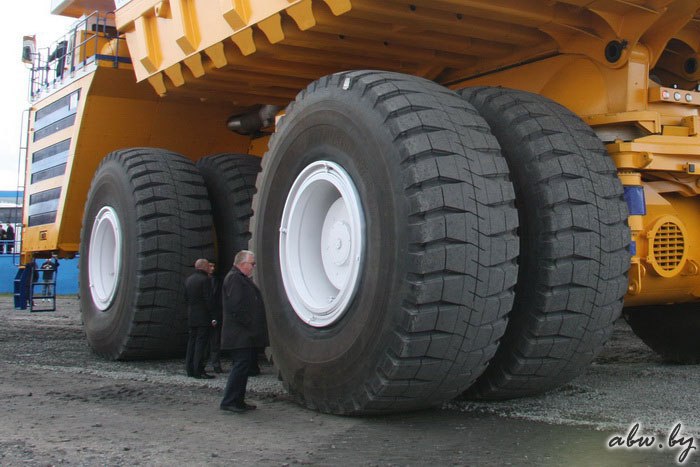

BELAZ-75710 uses the most advanced solutions and developments. For example, the electromechanical transmission made ​​by Siemens, tyres - Michelin. This truck  meets all the requirements of air pollution emissions, cabin equipment and the presence of the security system from tipping over. Body is welded made of high-strength steel. Volume of the body meets requirements of ISO 6483, m3. The brake system complies with international requirements in accordance with ISO 3450 and includes a parking brake, auxiliary brake and the main braking system. Service brakes: front and rear wheels - double disc brakes with a single brake mechanism on each disc and automatic adjustment of the gap. Discs mounted on the shafts of traction motors.

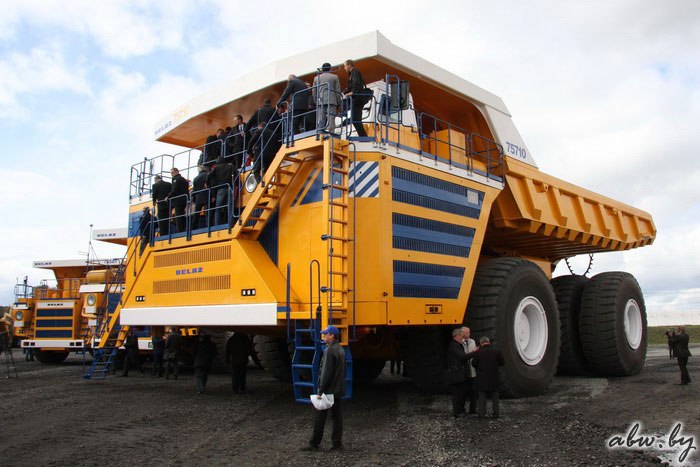

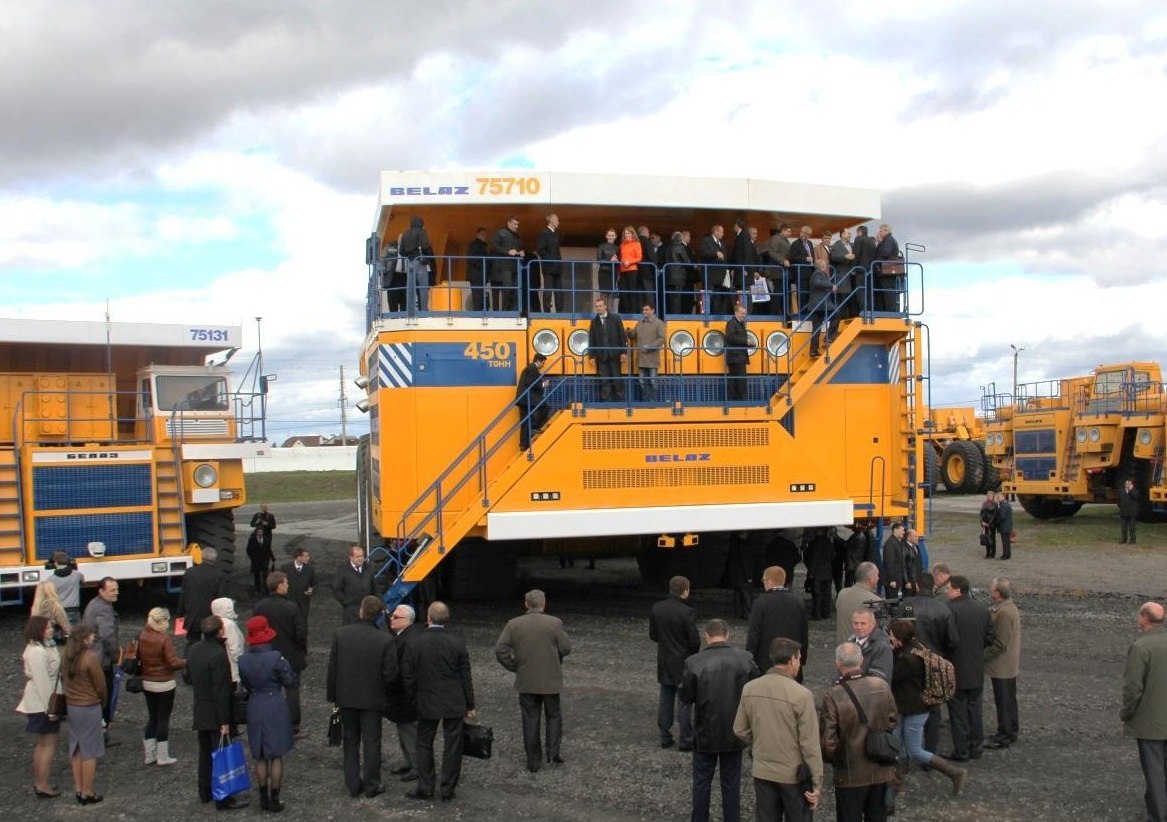

BELAZ - 75710 features a double cabin with ROPS safety system in accordance with ISO 3471 (stall warning system) and an adjustable driver's seat. Cab meets the standard requirements for the internal noise level, vibration, the concentration of harmful substances and dust. The noise level in the cabin is less than 80 dB. Local vibration level is not more than 126 dB. Overall vibration up to 115 dB. Among the options is a video surveillance system, a system of tire pressure monitoring and a climate-control in the cab.

Белаз 75710Белаз 75710Белаз 75710Белаз 75710
Белаз 75710Белаз 75710Белаз 75710Белаз 75710
Белаз 75710Белаз 75710Белаз 75710Белаз 75710
Белаз 75710Белаз 75710Белаз 75710Белаз 75710
Белаз 75710Белаз 75710Белаз 75710
  1. Artur
    2013-11-02 02:56:47

    Thanks for the sensible criqutie. Me and my neighbor were just preparing to do some research on this. We got a grab a book from our local library but I think I learned more from this post. I am very glad to see such excellent info being shared freely out there.

  2. Alex
    2016-03-27 14:06:05

    Terex MT 6300AC никогда не был грузоподъемностью 400 тонн, а вот 400 тон был. Очень часто путают короткие тонны (пишутся с одной н либо кор.тонн либо short ton либо US ton) получаем что 400 тон = 363 тонны. И рекорд в "Книге Гинесса" принадлежал вообще-то фирме Liebherr.rnИ поправьте объем кузова, ну очень много вы написали ;) ... поделите на 10

  3. Anar
    2016-12-17 11:26:18

    Skawite powalusto u koles БелАЗ-75710 skolko davlenii dalwno bit.
