Chevrolet » Series 5000 / 7000 / 9000 LCF

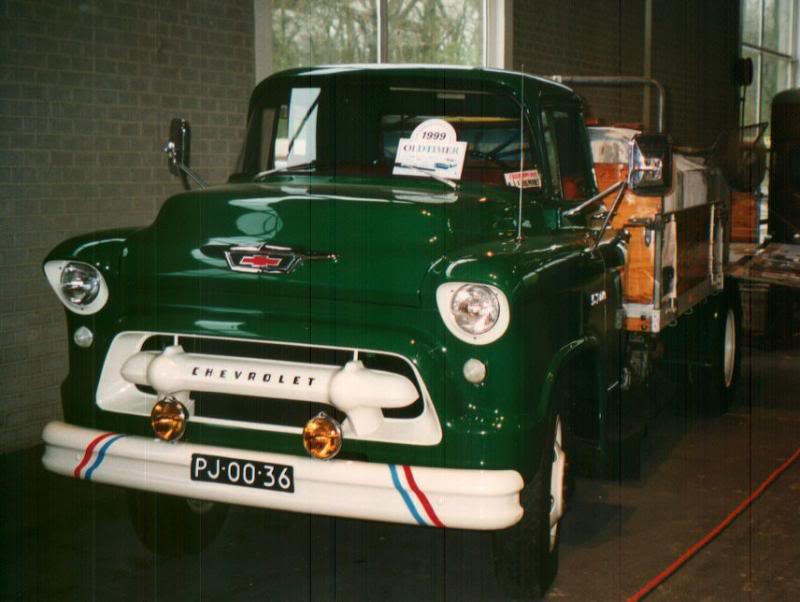

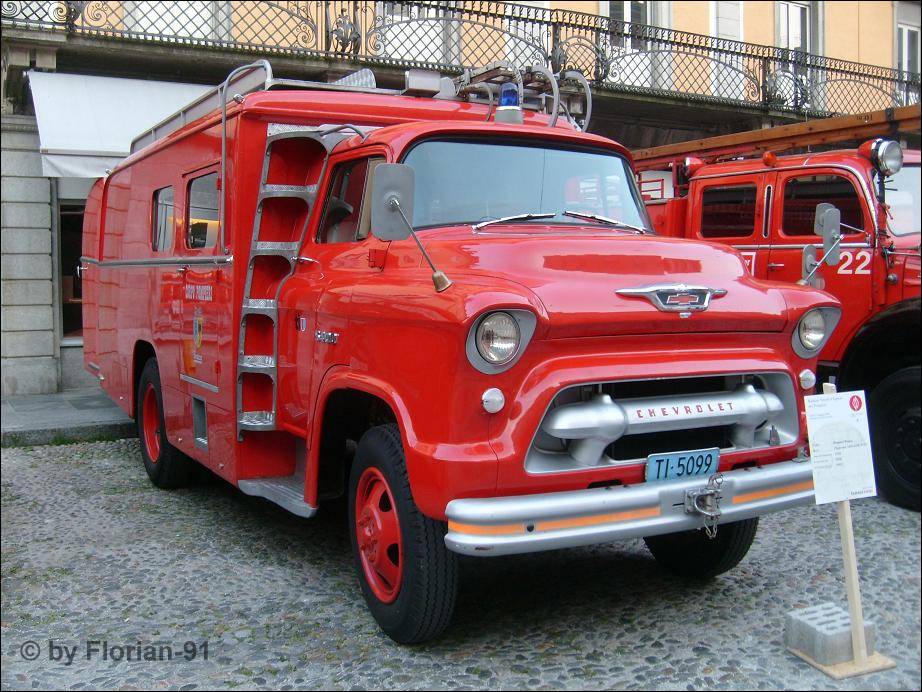

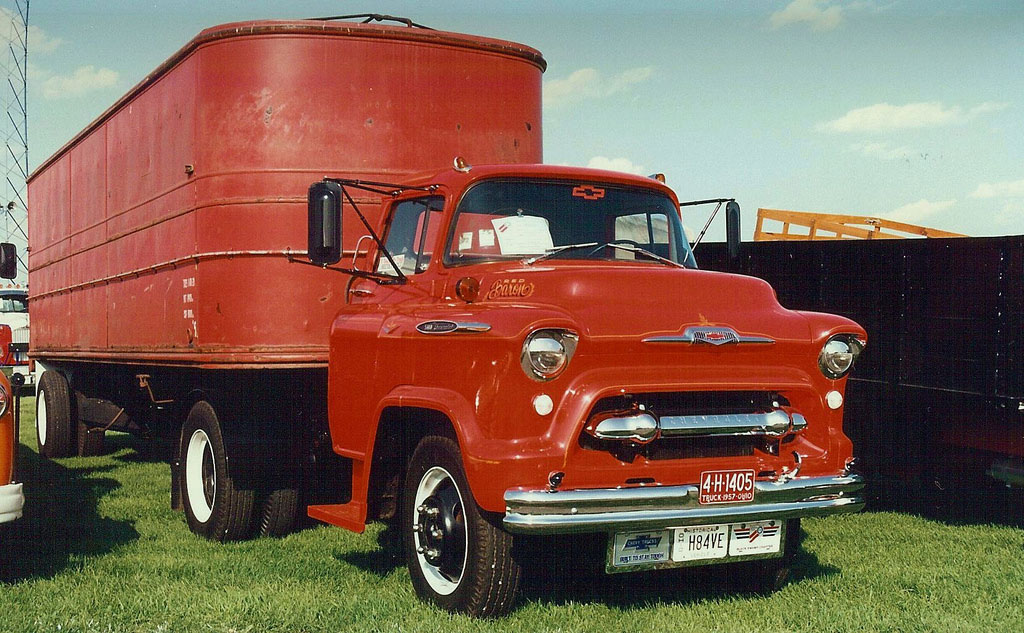

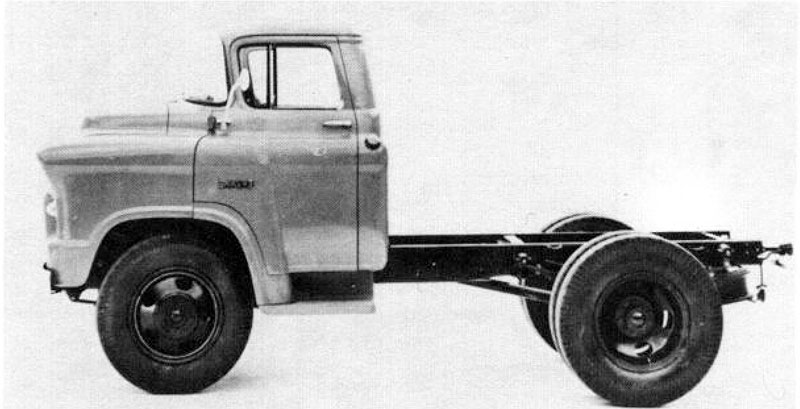

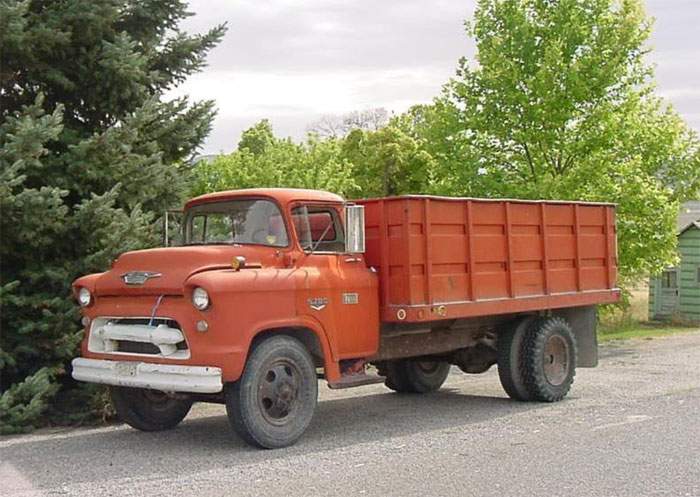

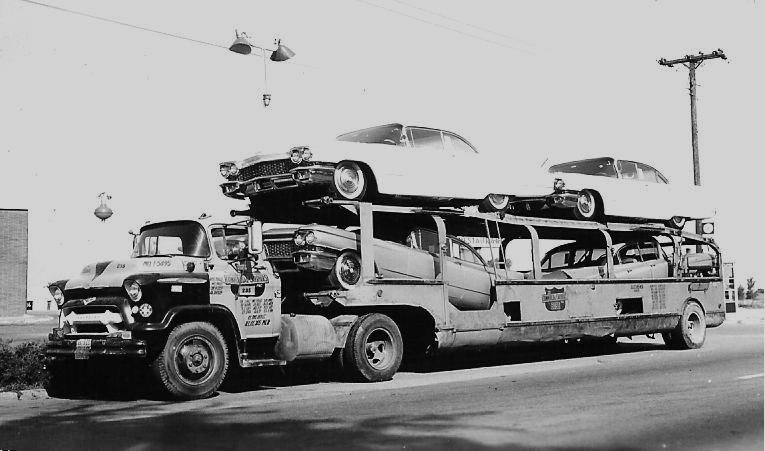

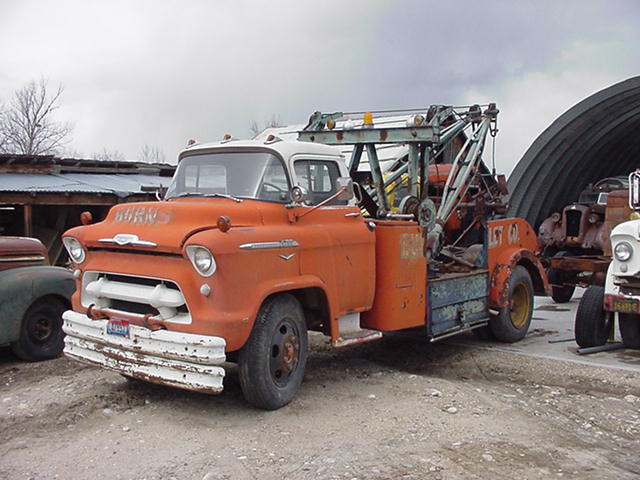

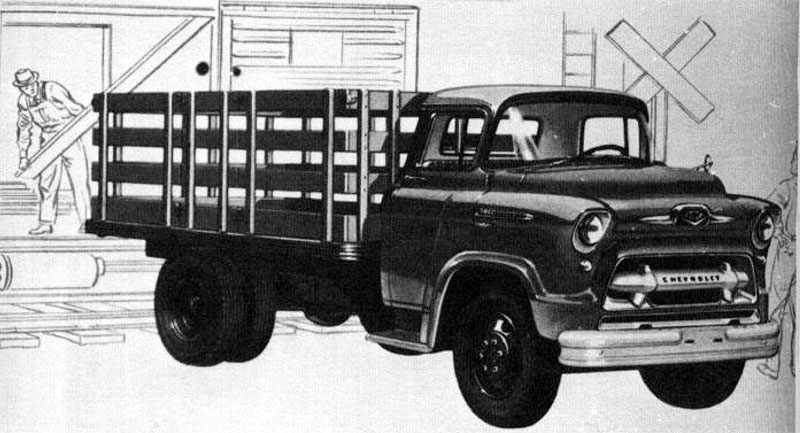

In 1955 the new LCF (Low-Cab-Forward) model came to replace old COE (Cab-Over-Engine). The stubby trucks were a cross between the conventional models and the true COEs. These trucks were designed to work in tight quarters, where a short wheelbase heavy duty truck was an advantage. The weight rating was 1.5, 2 and 2.5-tons. The LCF trucks were available only with V8 engines. The 5000 and 7000 series were equipped with Taskmaster V8 155 hp engine and 4-speed transmission, and the heavies series 9000 was equipped with Loadmaster V8 195 hp engine with 5-speed transmission. In factory form, the shortest wheelbase trucks would have had a gas tank located under the driver's seat, but in most usage, saddle tanks would have been used. The model range included:

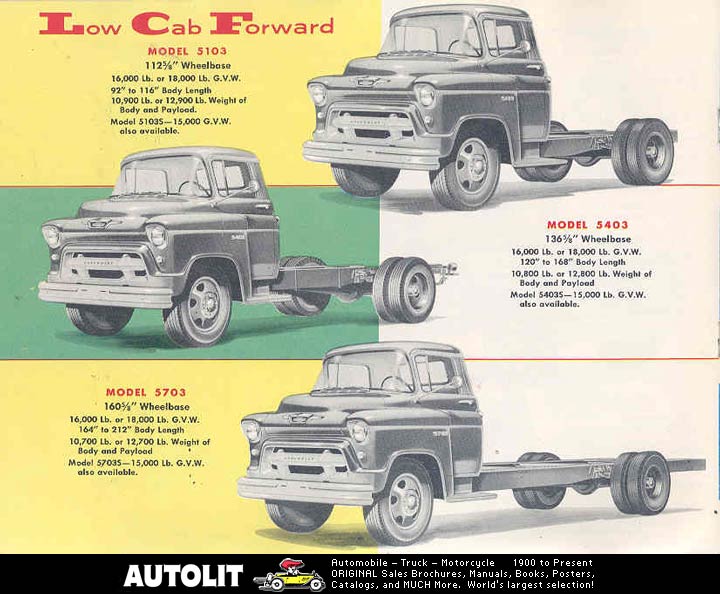

5100 - 2-ton model with 112-inch wheelbase and GVW of 8845 kg.
5400 - 2-ton model with 136-inch wheelbase and GVW of 8845 kg.
5700 - 2-ton model with 160-inch wheelbase and GVW of 8845 kg.
7100 - 2.5-ton model with 112-inch wheelbase and GVW of 15875 kg.
7200 - 2.5-ton model with 124-inch wheelbase and GVW of 15875 kg.
7700 - 2.5-ton model with 172-inch wheelbase and GVW of 15875 kg.

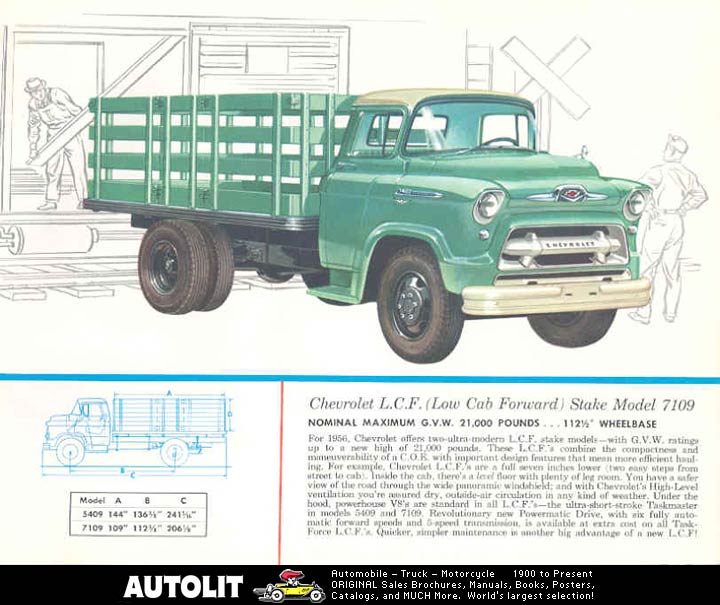

9100 - 2.5-ton model with 112-inch wheelbase and GVW of 21770 kg.
9200 - 2.5-ton model with 124-inch wheelbase and GVW of 21770 kg.
9700 - 2.5-ton model with 172-inch wheelbase and GVW of 21770 kg.

Series 5000 / 7000 / 9000 LCFSeries 5000 / 7000 / 9000 LCFSeries 5000 / 7000 / 9000 LCFSeries 5000 / 7000 / 9000 LCF
Series 5000 / 7000 / 9000 LCFSeries 5000 / 7000 / 9000 LCFSeries 5000 / 7000 / 9000 LCFSeries 5000 / 7000 / 9000 LCF
Series 5000 / 7000 / 9000 LCFSeries 5000 / 7000 / 9000 LCFSeries 5000 / 7000 / 9000 LCF
Author Florian-91
