MZKT » 600300

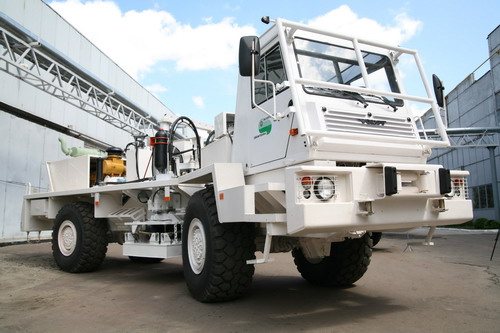

The special chassis model 600300 with wheel arrangement 4x4 and articulated frame is made under a contract with OAO "Seismotekhnika" (Gomel city, Russia) for mount on it a vibratory seismic sources equipment SV-30/120M, which designed to excite vertical seismic vibrations with a given amplitude and frequency by a mechanical vibration impact on a soil surface during seismic operations. The engine, mounted on the chassis is the Caterpillar C13 ACERTTM, diesel, 6-cylinder, in-line, maximum power is 328 kW (440 hp) at 2100min-1, maximum torque is 2011N*m. Transmission is a hydrostatic closed reversible type with one-speed switchable gear drive pumps and drive to each axle from the hydraulic motor through a two-speed gearbox and driveshaft. Total weight of machine is 32000kg. Maximum speed is 40km / h.

600300600300
  1. Павел
    2016-08-23 16:26:26

    А что за шины у этого шасси?
