DAF » YA 4440 / YA 4442

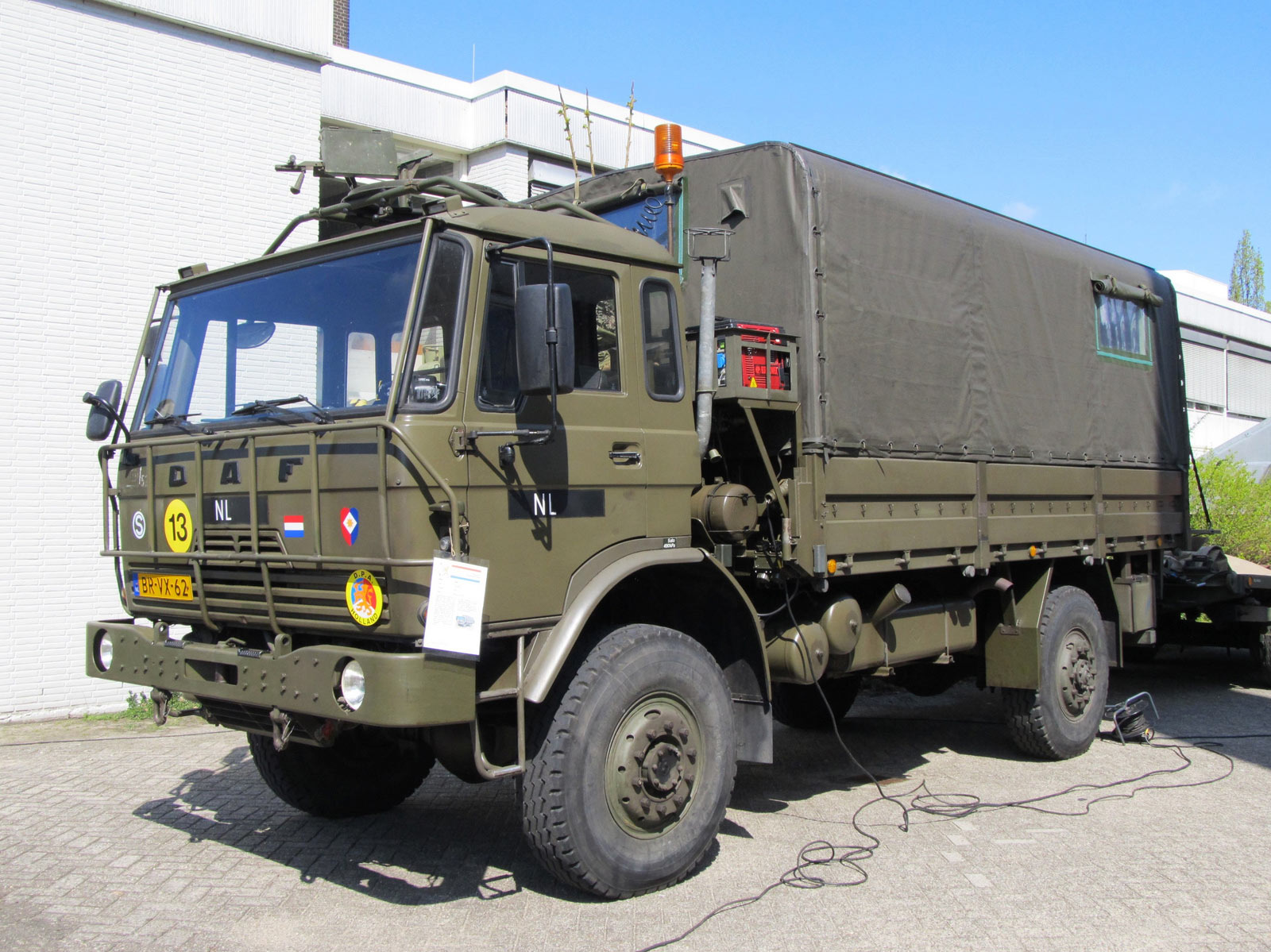

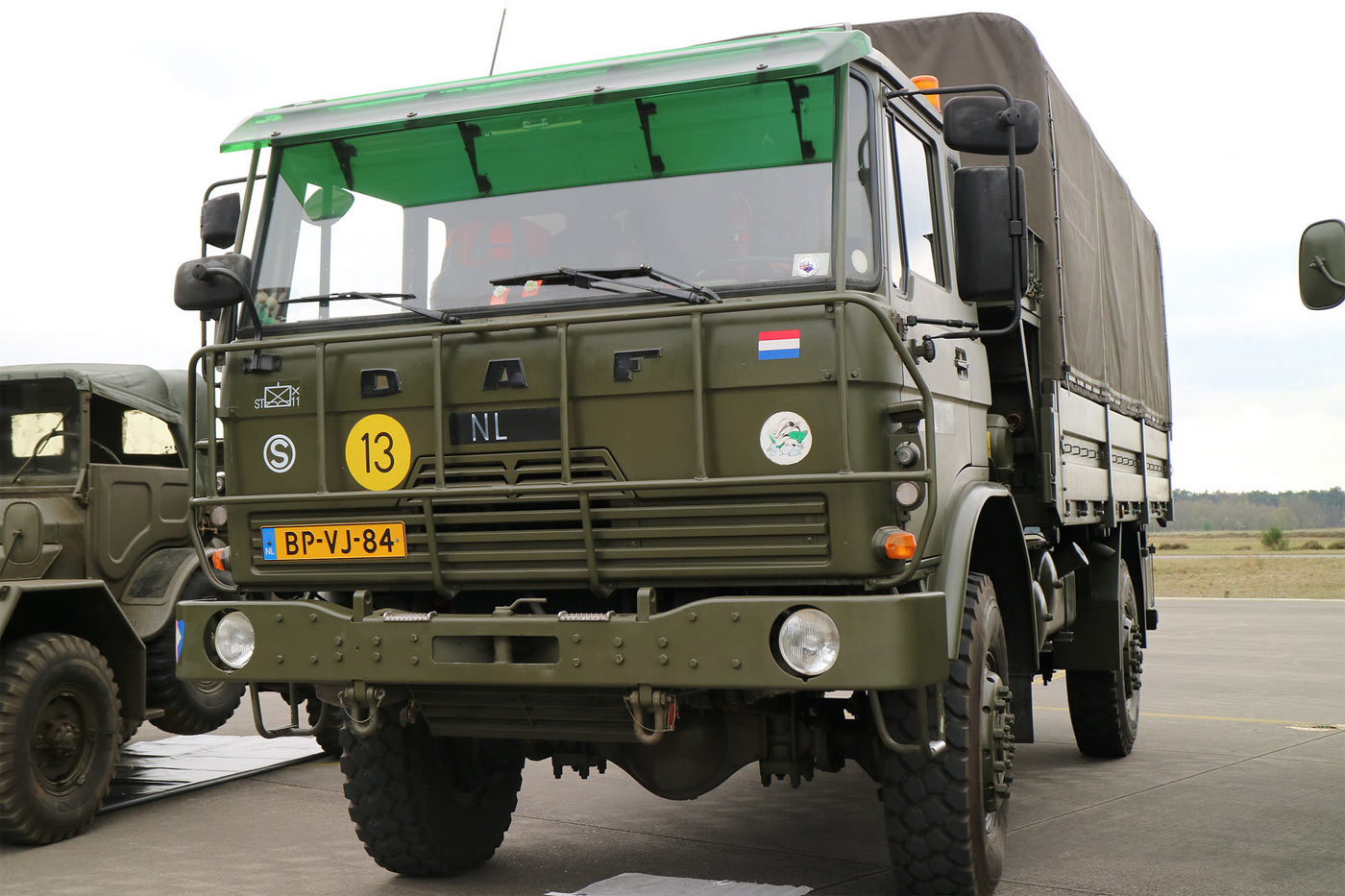

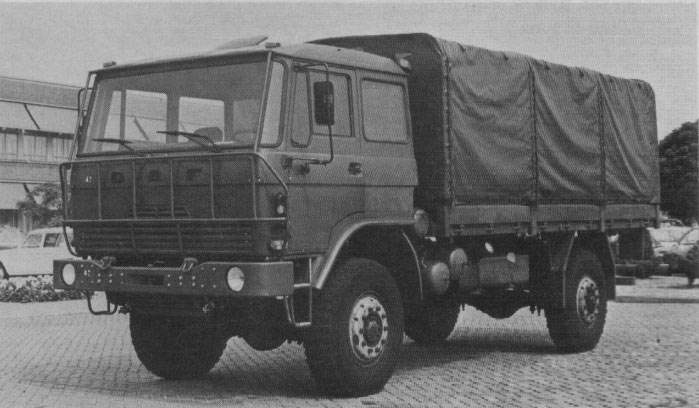

On December 7, 1976, the Ministry of Defense placed an order for four thousand vehicles of type YA 4440. With 342 million guilders this was the biggest assignment in the history of DAF. The first vehicles were delivered to the military in June 1977 as a test, after which the rest followed between 1978 and 1982. In the meantime the order had been increased and in 1983 the total order for 7,200 four-toners was completed. In December 1989, deliveries of the second generation of four toners, the YA 4442, started to the army. More than 5100 copies of the second generation trucks were made.

The trucks were based on the civil 1600 series. The cabin is equipped with a roof hatch. The cargo platform is equipped with a flat floor and folding side partitions so that cargo can be transported on pallets. The 6-cylinder inline diesel DAF DT 615 has a volume of 6170 cm3 and power of 153 hp. Gearbox is 5-speed manual. Overall dimensions — 7115x2445x4050 mm.

YA 4440 index means: Y — military vehicles, A — general purpose, 4 — 4-tonnes payload, 4 — number of wheels, 4 — 4-wheel drive, 0 — number of series.

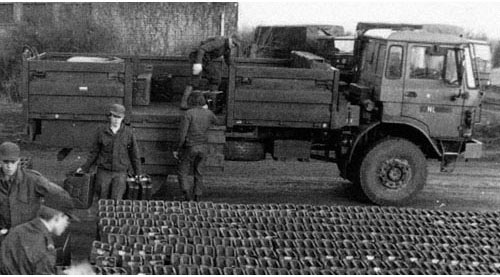

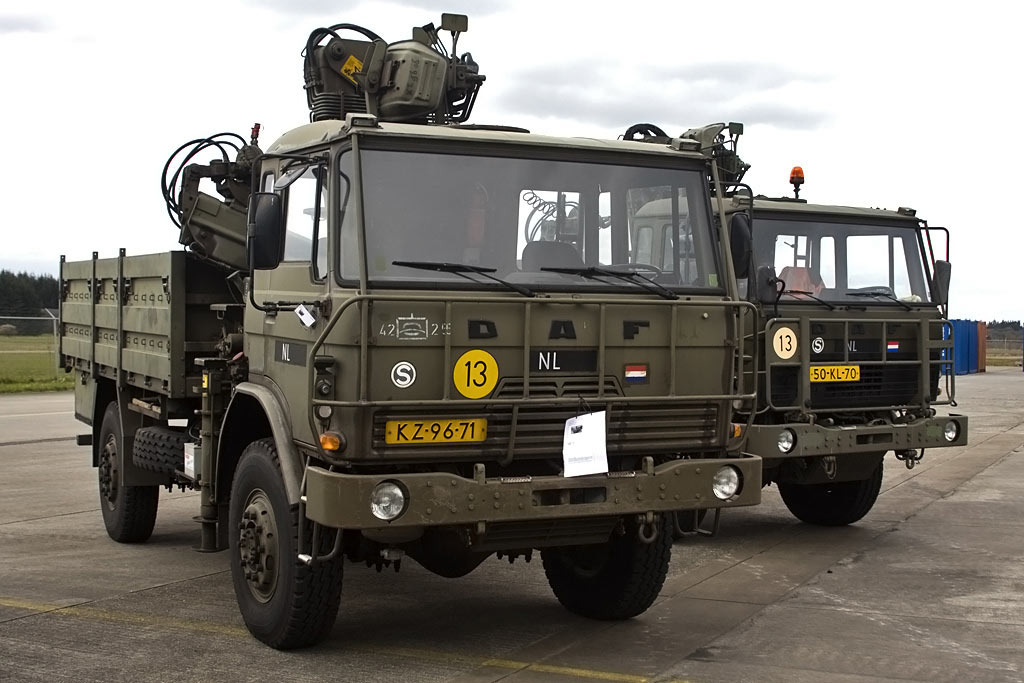

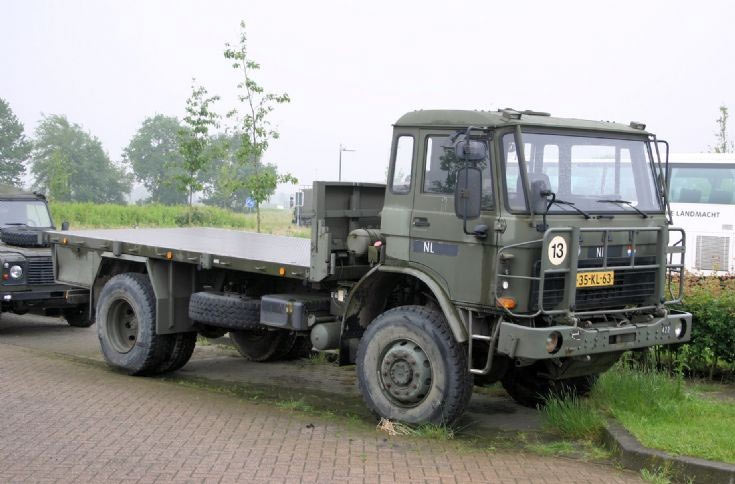

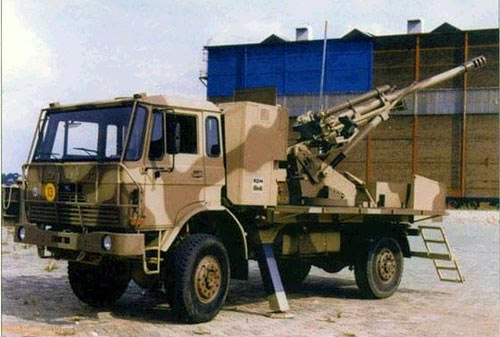

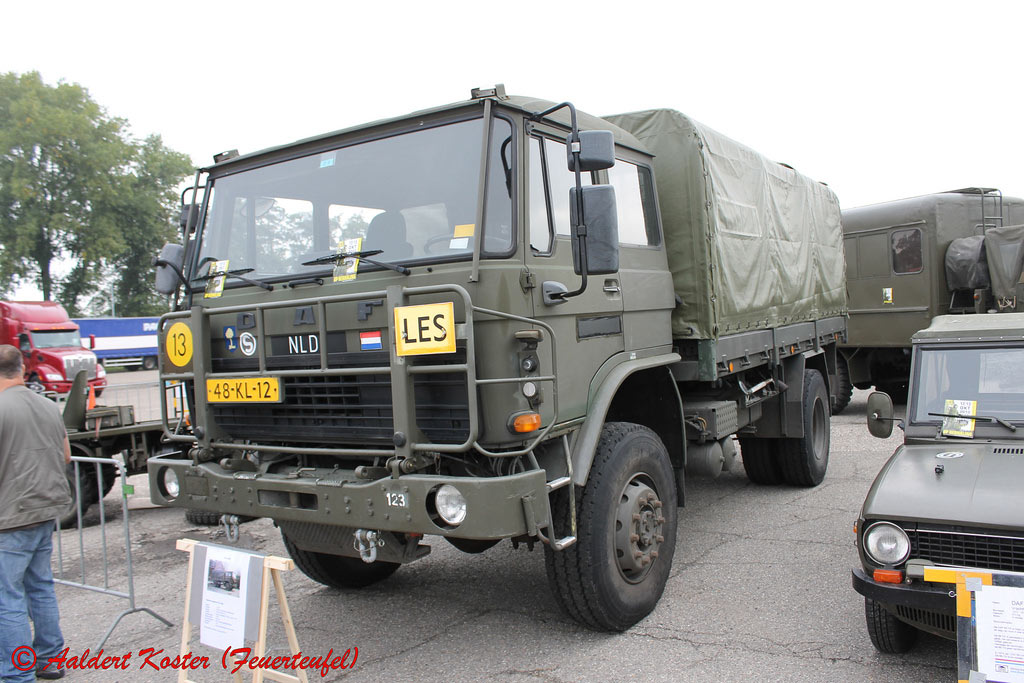

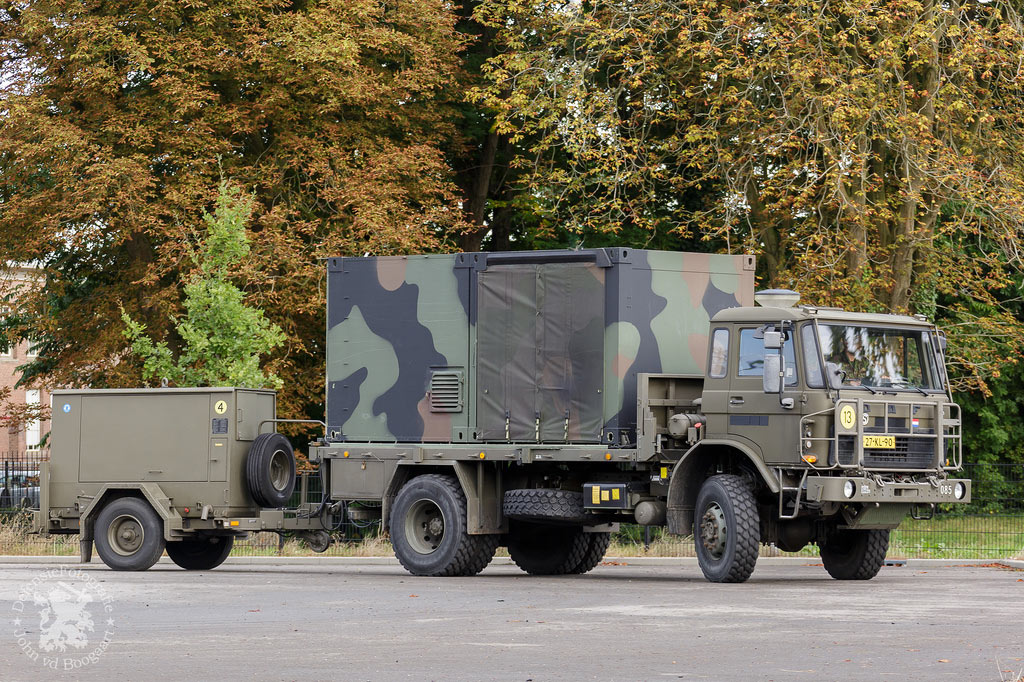

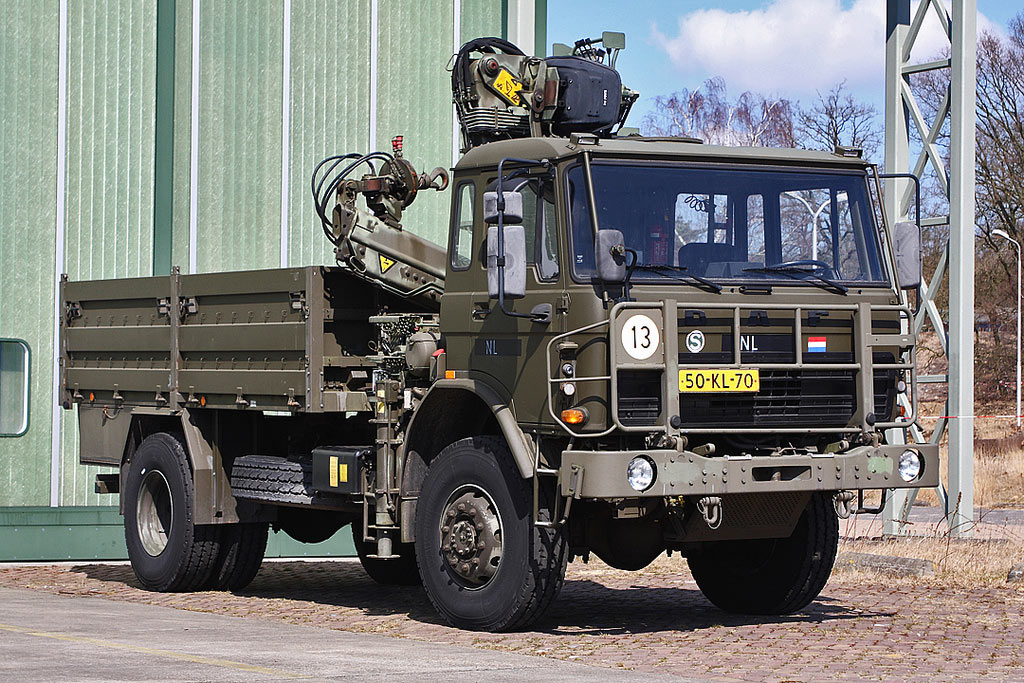

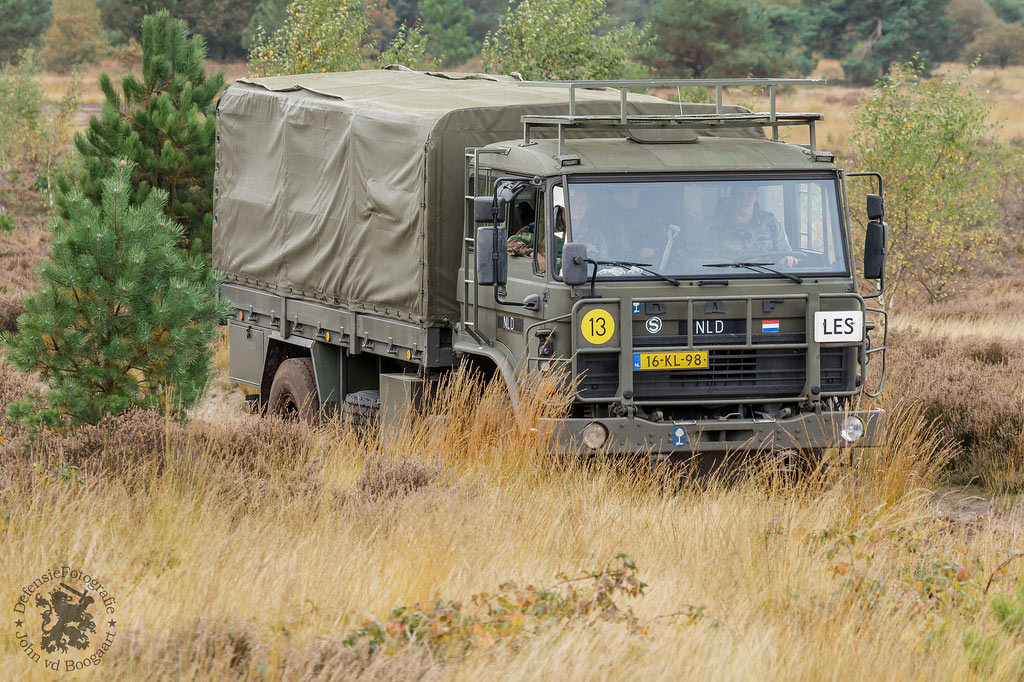

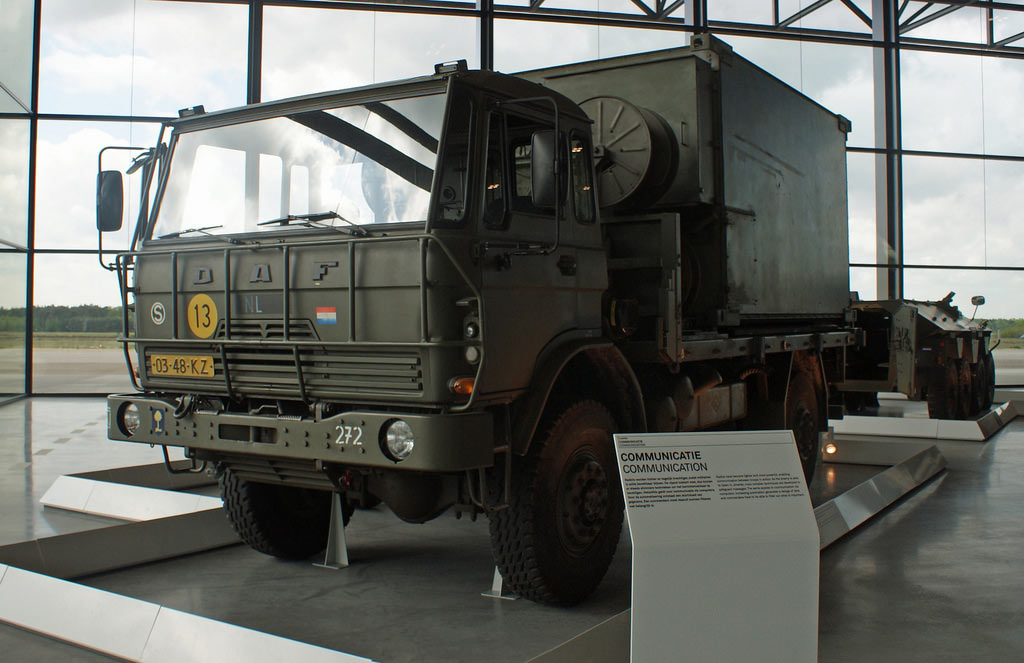

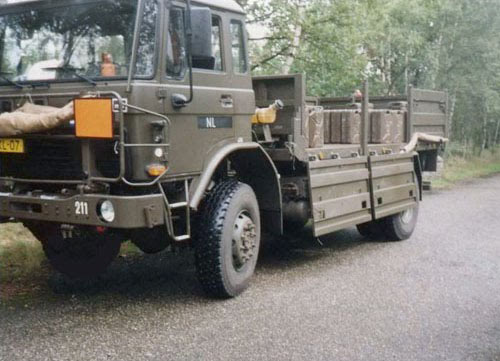

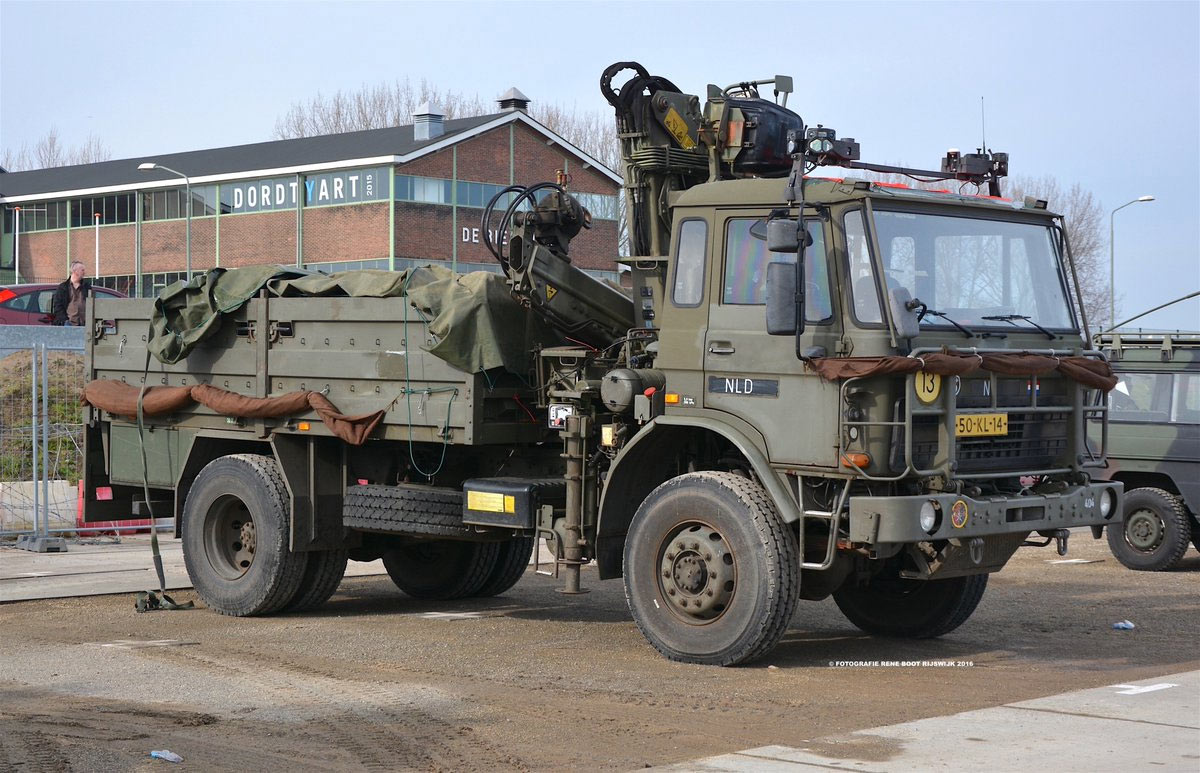

The range of DAF YA 4440 includes: YAD — standard flatbed version with 9 folding side partitions, YAK — with a hydraulic crane behind the cabin, YAS — container truck, YAT — with a container equipped with a telex system, YAI — with a container equipped with tools for repairing, YAL — driver training vehicle with an extended cabin and dual control, YAJ — equipped with safety equipment for transporting fuel in jerry cans, YA MOBAT — with a 105 mm artillery gun to export in Jordan.

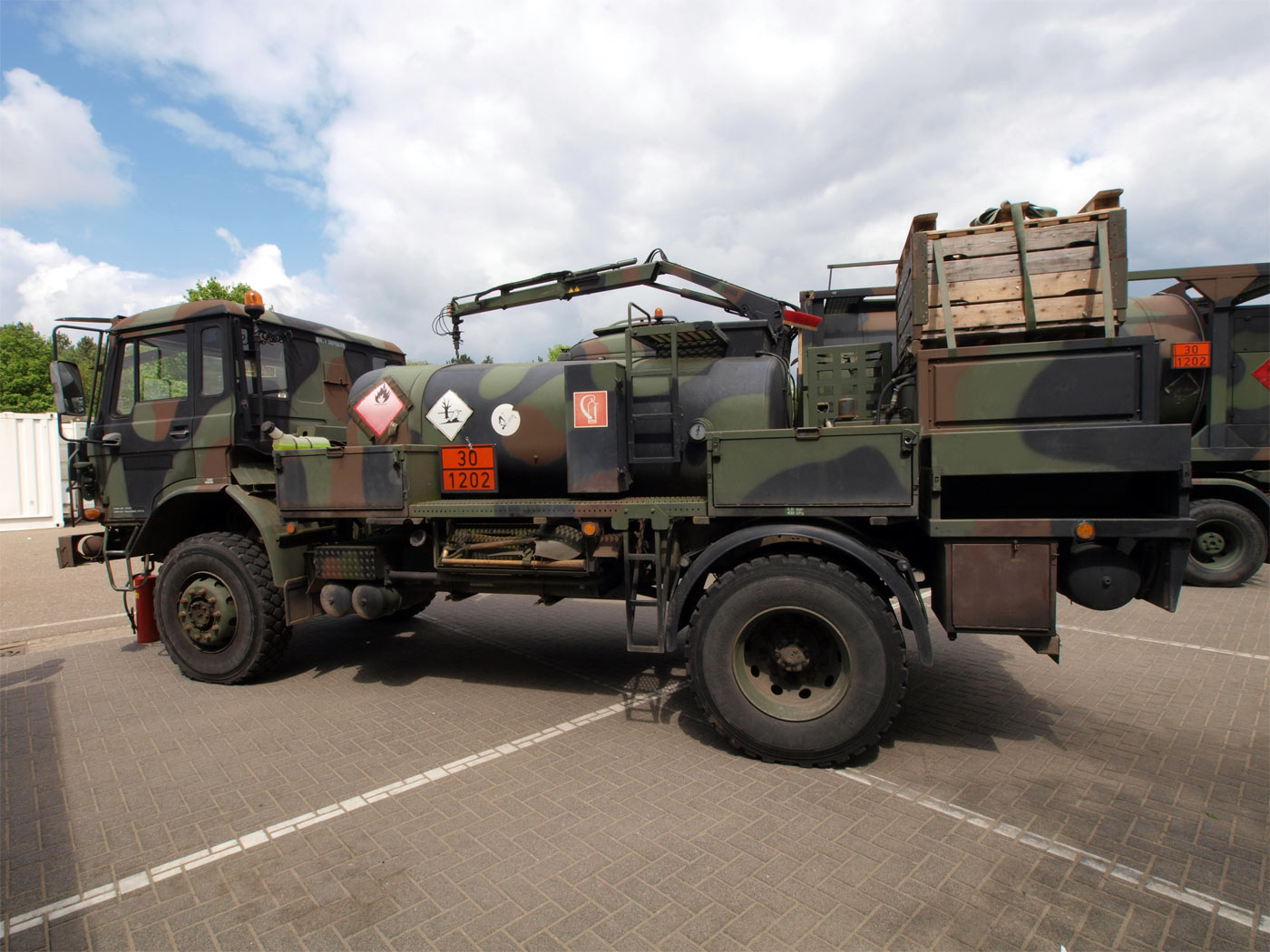

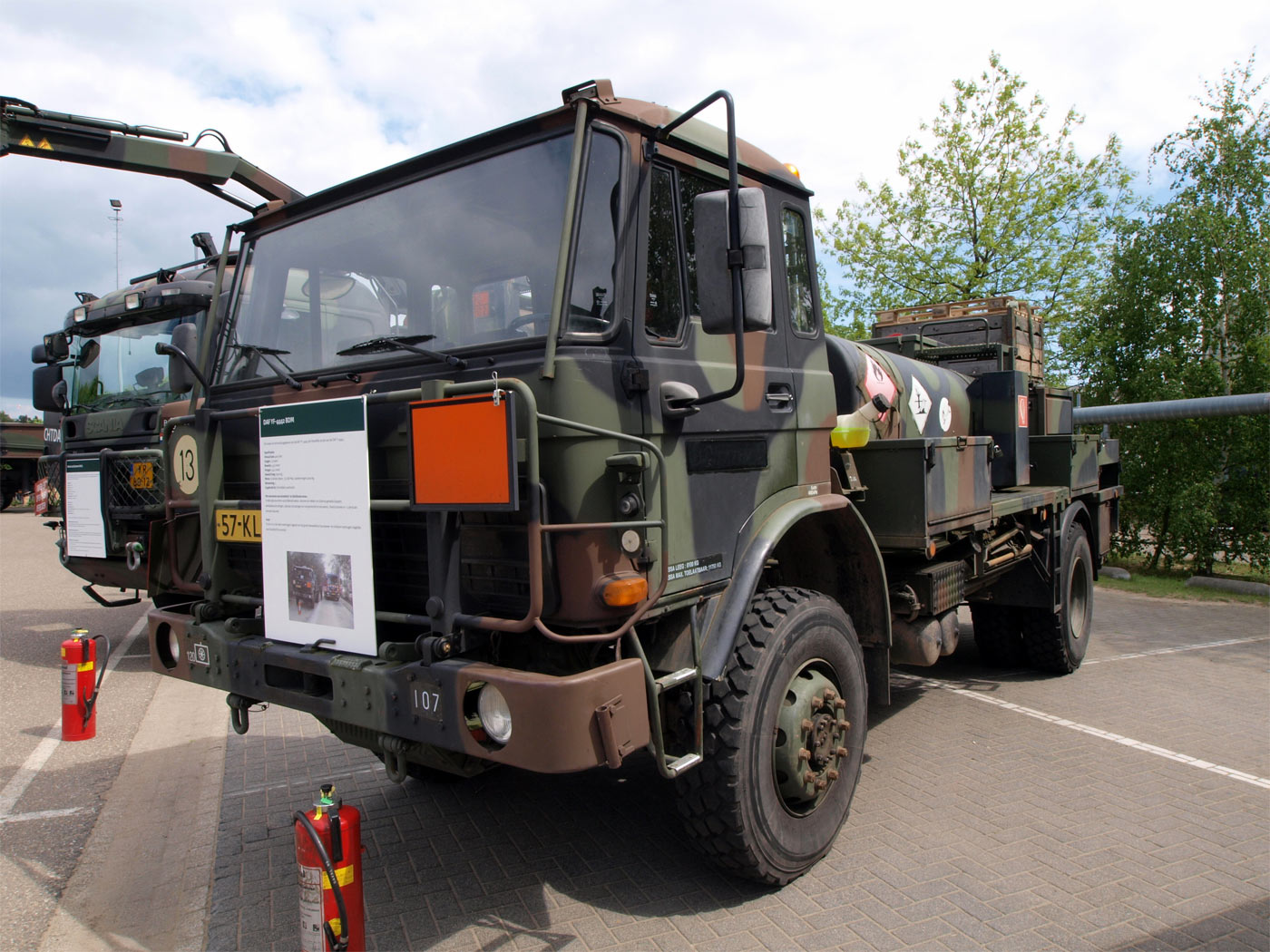

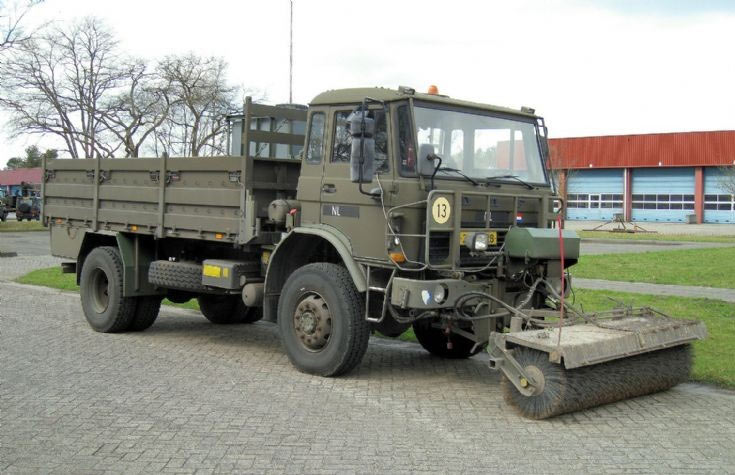

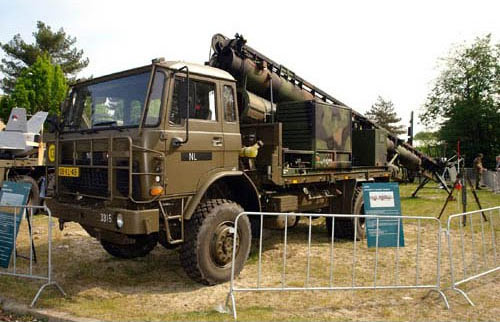

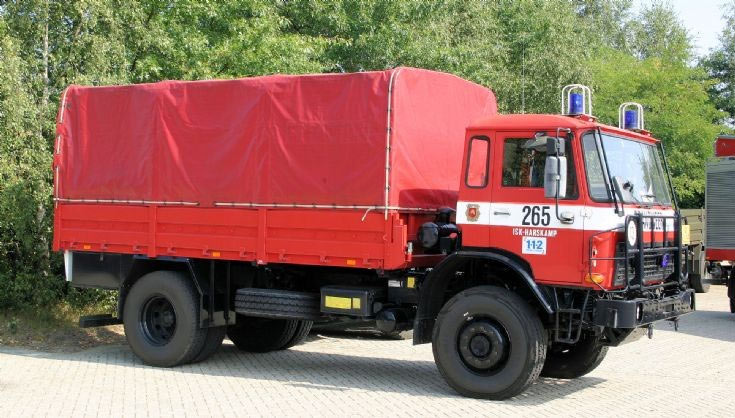

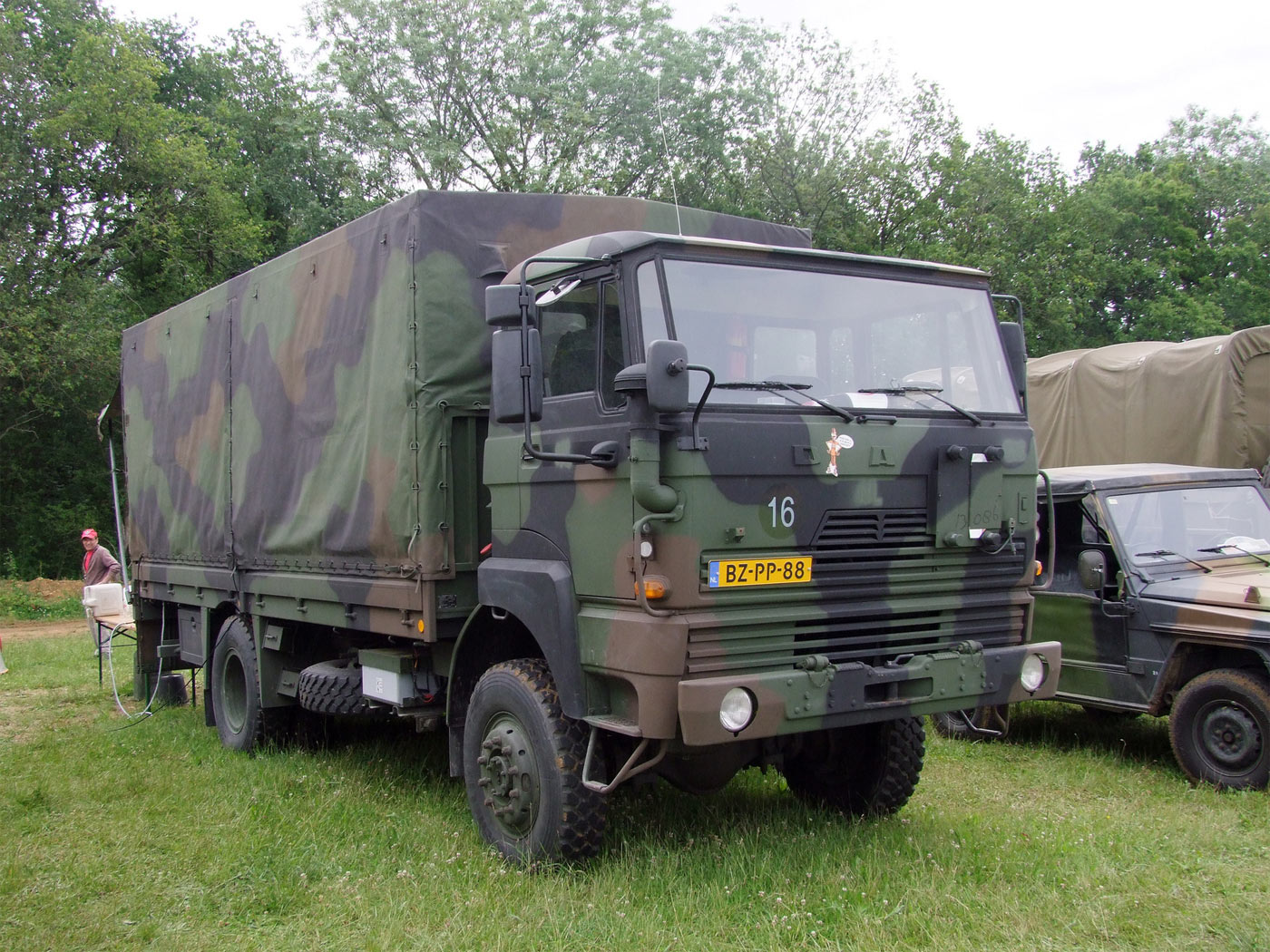

The second series DAF YA 4442 differs by a 6-speed manual gearbox, more powerful DAF DNT 620 diesel (180 hp) and dual rear wheels. The range was extended by the next versions: YAB — fire truck, YAM — for Marine Corps, equipped with cold weather equipment and an increased wade capacity, YAV — with sweeping equipment, YF — refueler, YAP — personnel carrier for 14 men, YPS — equipped with a launcher for unmanned reconnaissance aircraft.

YA 4440 / YA 4442YA 4440 / YA 4442YA 4440 / YA 4442YA 4440 / YA 4442

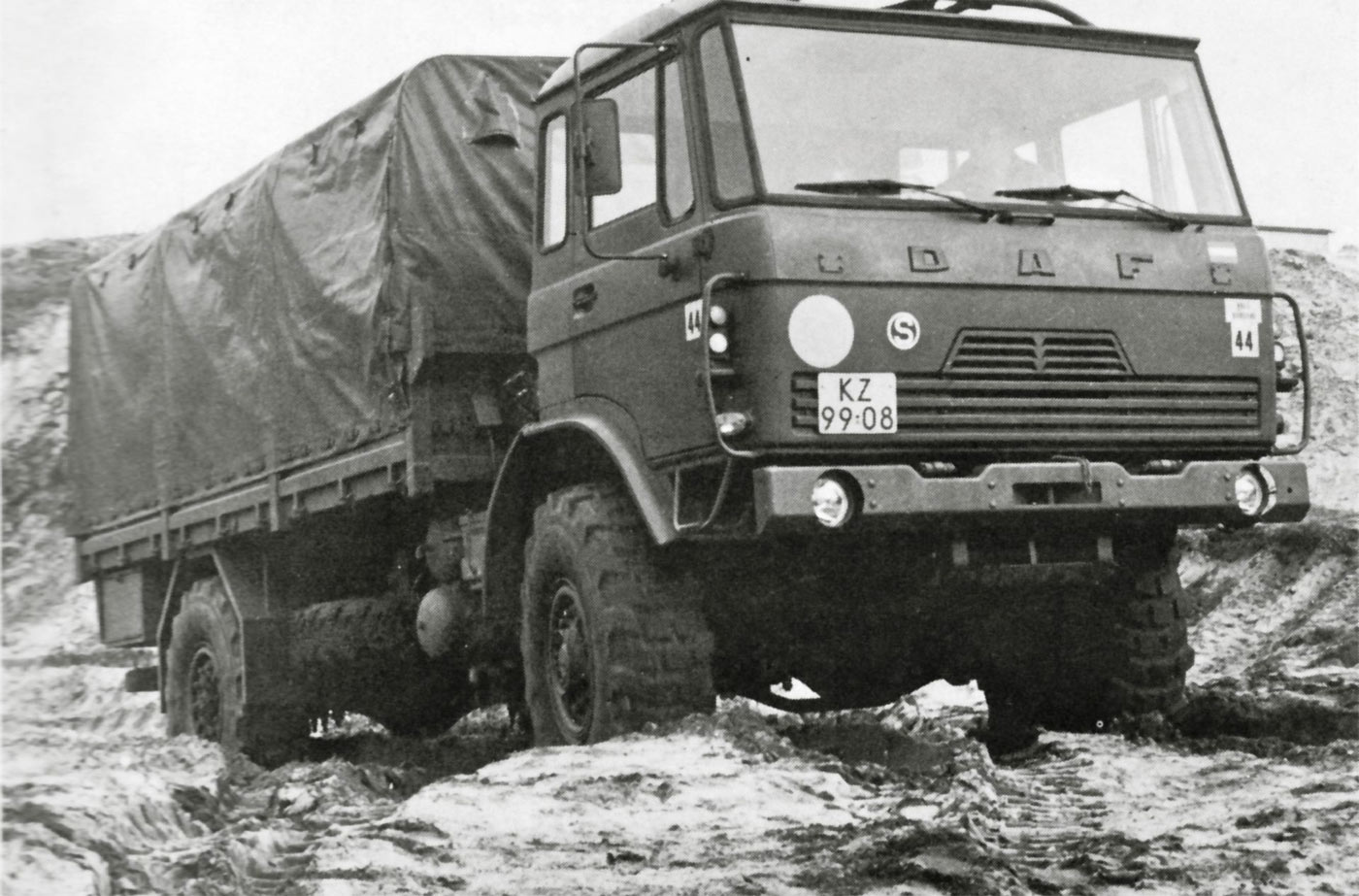

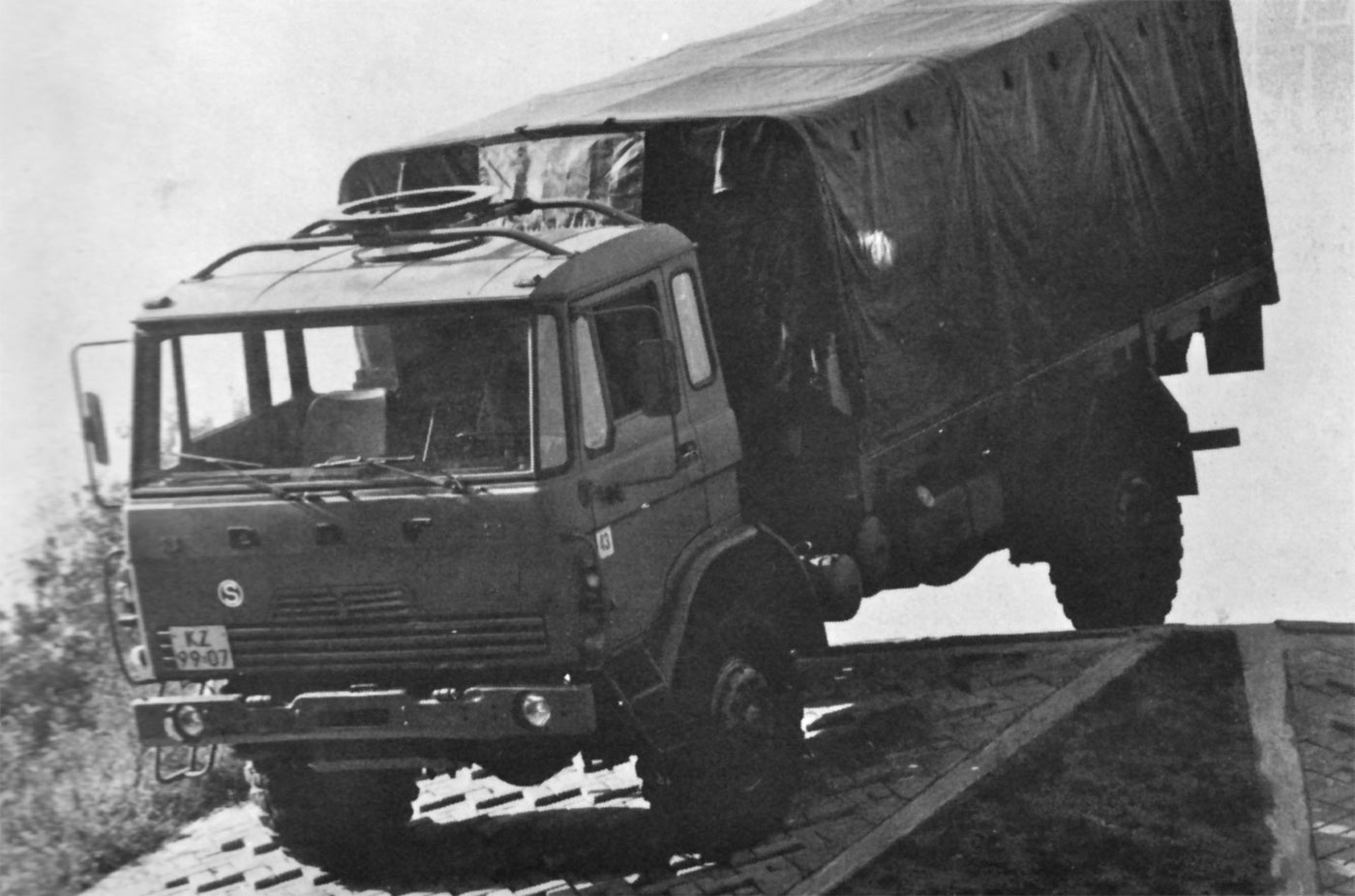

DAF YA 4440 prototypeDAF YA 4440 prototypeDAF YA 4440DAF YA 4440
YA 4440 / YA 4442YA 4440 / YA 4442YA 4440 / YA 4442YA 4440 / YA 4442
DAF YA 4440DAF YA 4440DAF YA 4440DAF YAK 4440
YA 4440 / YA 4442YA 4440 / YA 4442YA 4440 / YA 4442YA 4440 / YA 4442
DAF YAK 4440DAF YAS 4440DAF YAS 4440DAF YAT 4440
YA 4440 / YA 4442YA 4440 / YA 4442YA 4440 / YA 4442YA 4440 / YA 4442
DAF YAL 4440DAF YAJ 4440DAF YA 4440 MOBATDAF YA 4442
YA 4440 / YA 4442YA 4440 / YA 4442YA 4440 / YA 4442YA 4440 / YA 4442
DAF YA 4442DAF YA 4442DAF YA 4442DAF YA 4442
YA 4440 / YA 4442YA 4440 / YA 4442YA 4440 / YA 4442YA 4440 / YA 4442
DAF YA 4442DAF YA 4442DAF YAK 4442DAF YAK 4442
YA 4440 / YA 4442YA 4440 / YA 4442YA 4440 / YA 4442YA 4440 / YA 4442
DAF YAS 4442DAF YAS 4442DAF YAS 4442DAF YAL 4442
YA 4440 / YA 4442YA 4440 / YA 4442YA 4440 / YA 4442YA 4440 / YA 4442
DAF YAL 4442DAF YAJ 4442DAF YAB 4442DAF YAM 4442
YA 4440 / YA 4442YA 4440 / YA 4442YA 4440 / YA 4442YA 4440 / YA 4442
DAF YAM 4442DAF YAV 4442DAF YF 4442DAF YF 4442
YA 4440 / YA 4442YA 4440 / YA 4442YA 4440 / YA 4442
DAF YAP 4442DAF YAP 4442DAF YPS 4442
