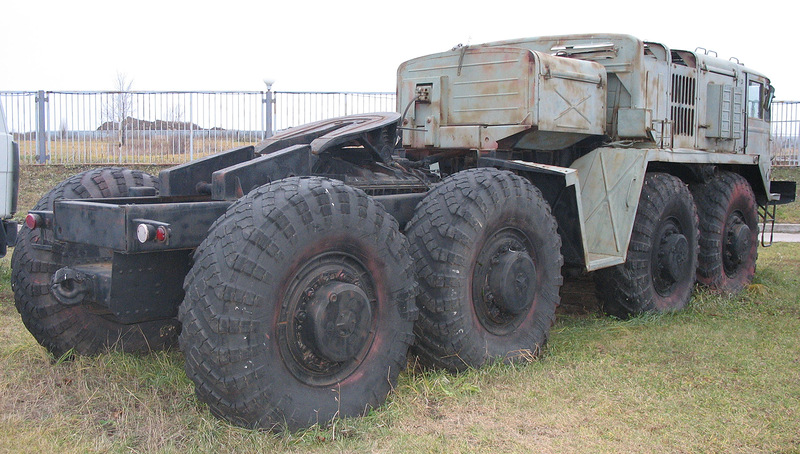

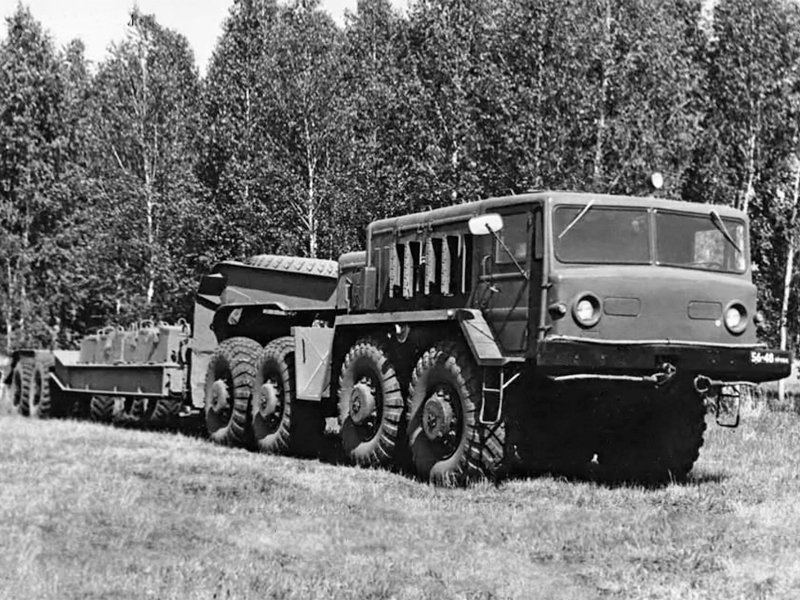

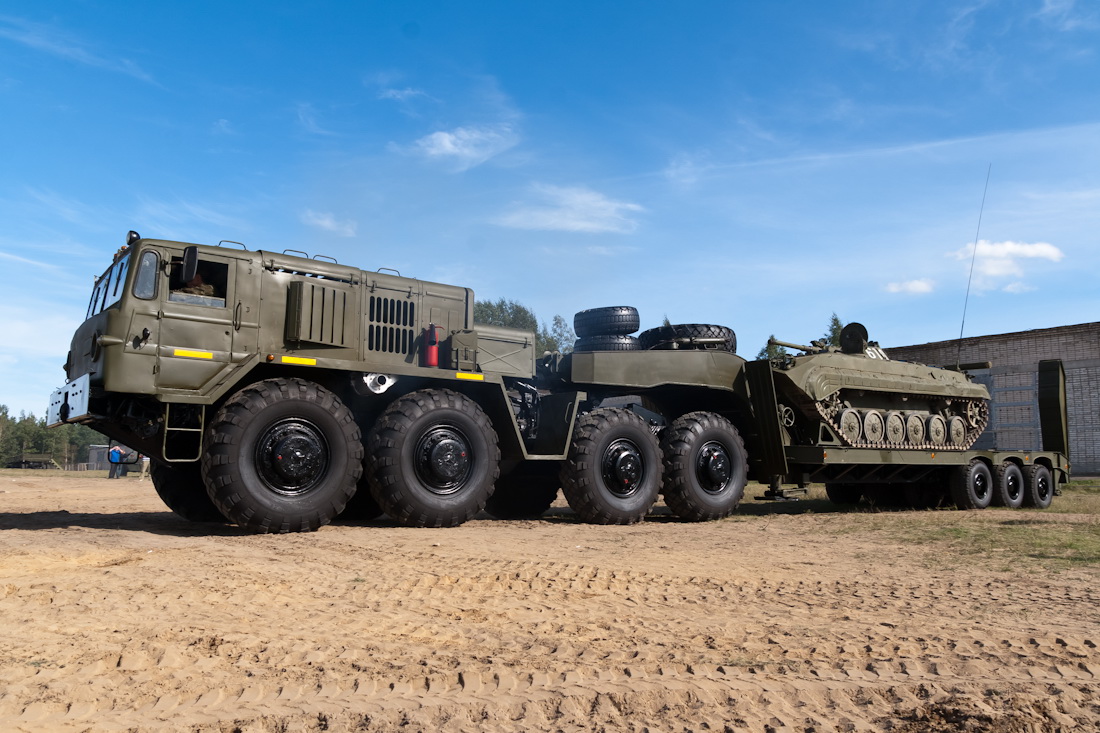

MAZ-537 tractor with a payload on a fifth wheel of 25 tonnes was designed to work in a combination with a GCVW of up to 90 tonnes for delivery of tracked vehicles, oversized cargos, heavy weapons and missile systems. The development process started in 1956 in parallel with works on MAZ-535 and MAZ-536 tractors. The first prototypes were made at the end of 1958, then in March 1959 a small-scale production began. In 1964 the production was transferred to KZKT plant. MAZ-537 was adopted by 30 July 1962 and still is a part of the Russian Army.

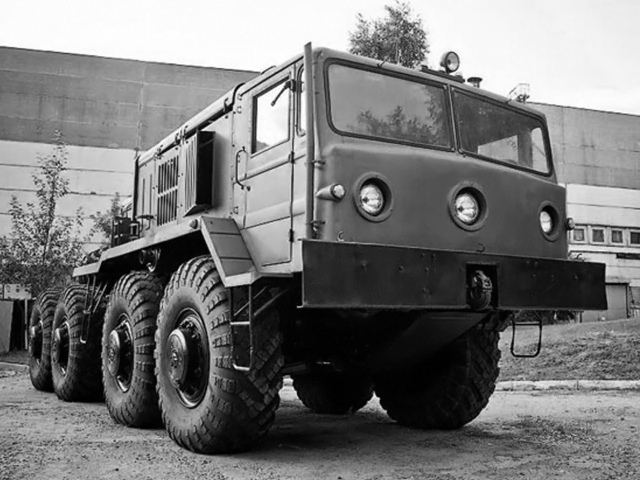

From a technical point of view, MAZ-537 was similar to MAZ-535 with an enlarged by 300 mm wheelbase. It was equipped with a diesel engine D12A-525 V12 rated at 525 hp with a preheater, dual startup system and a circulation lubrication. The four front steering wheels had an independent torsion suspension. The tractoru version was also equipped with a power steering, pneumatic drum brakes and a 4-place cabin. Three headlights with ventilation hatches between them were placed on a front dash, but later versions were equipped with two headlights instead of three.

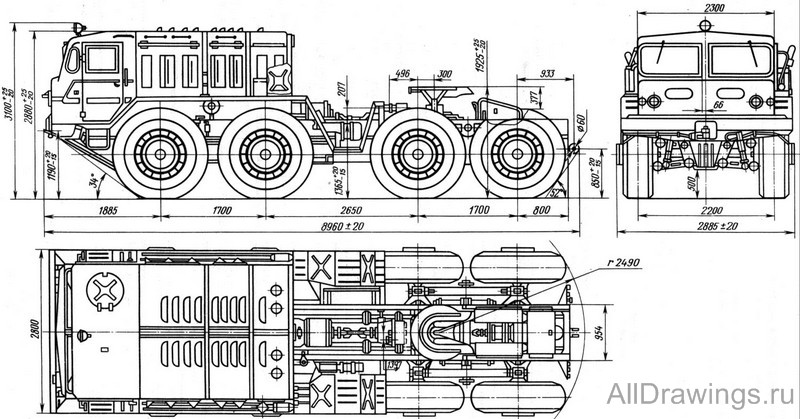

Wheelbase - 6050 mm (1700 + 2650 + 1700 mm), track of all wheels was extended to 2200 mm. Overall dimensions - 8960x2890x2880 mm, ground clearance was increased to 500 mm. The turning radius - 15.5 m. Curb weight - 21.6 tonnes, GVW - 47 tonnes, GCVW - 87 tonnes. Maximum speed - 60 kph. Fuel consumption - 125 liters per 100 km. Range - 650 km.

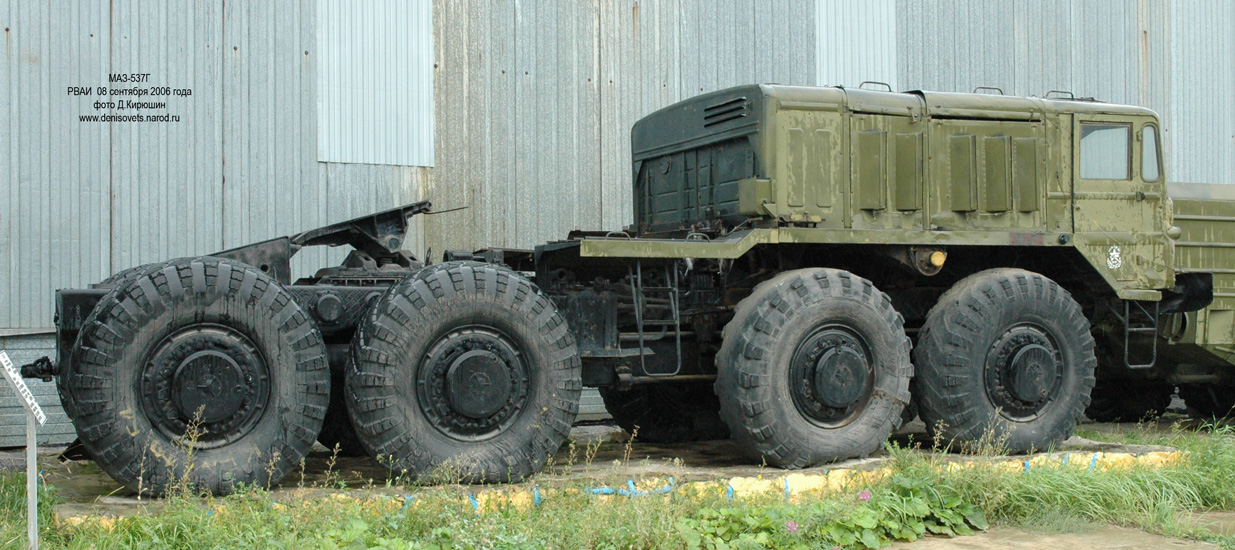

In 1958 MAZ 537G tractor was appeared with its own 15-tonnes winch, fuel tanks behind the cab, and increased up to 27 tonnes payload on the fifth wheel. It was designed to work with a heavy 3-axle semitrailer MAZ-796 or new 2-axle 50-tonnes multi-purpose trailer MAZ-5247G. MAZ 537A and 537G produced in Minsk by MAZ until 1964, then the production capacities were transfered to KZKT.

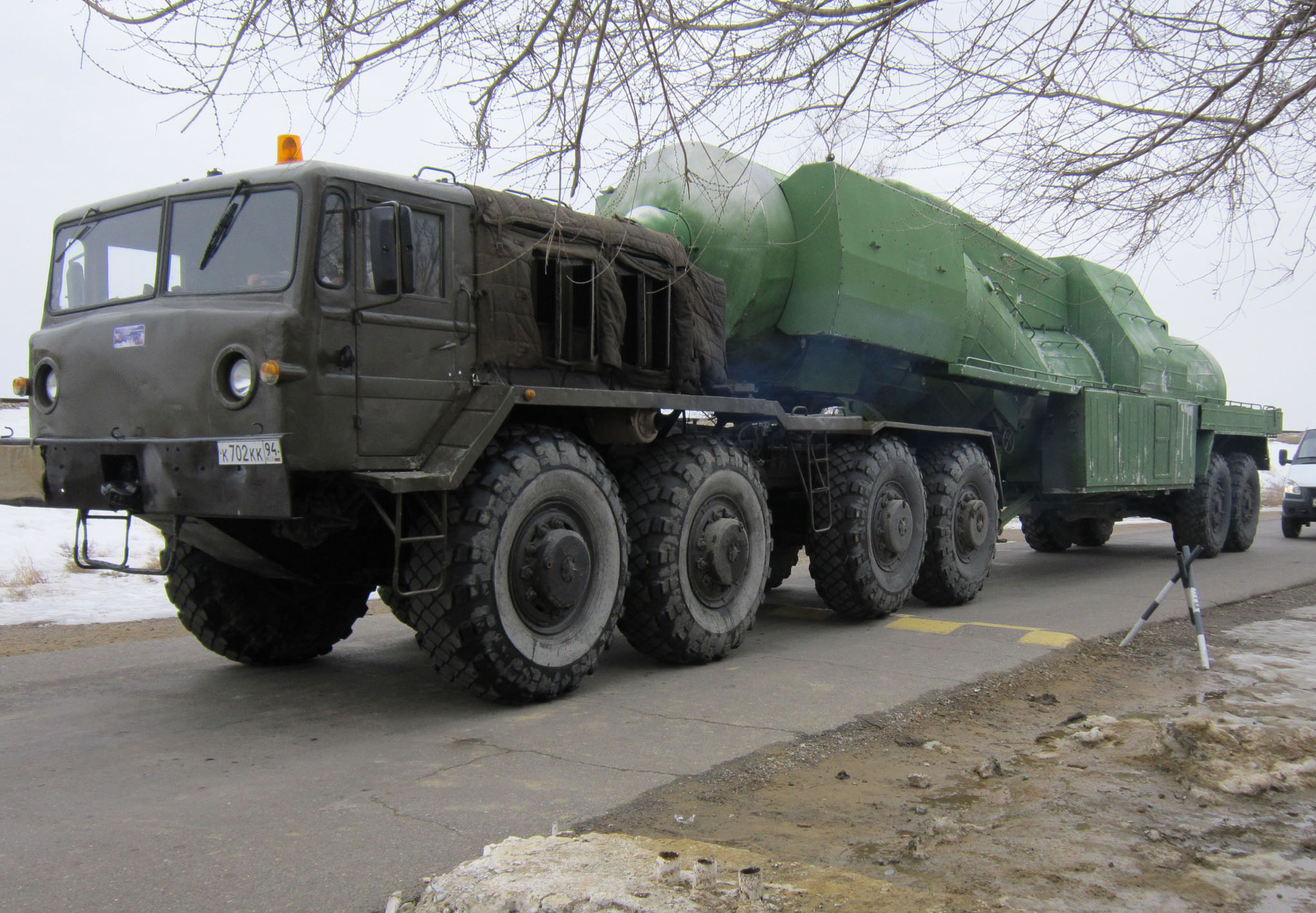

Another version of tracor - MAZ 537D was developed in 1959 to work as part of diffrerent missile systems. It had a 25-tonnes fifth wheel, and was additionally equipped with an AC generator station. Its was produced by KZKT since 1964. MAZ 537M (KZKT 537M) was equipped with 500 hp YAMZ 240NM-1B engine and a winch. MAZ 537E - tractor for towing an active semitrailer with gross weight up to 68 tons. It was equipped with a PTO and generator. Produced since 1966.

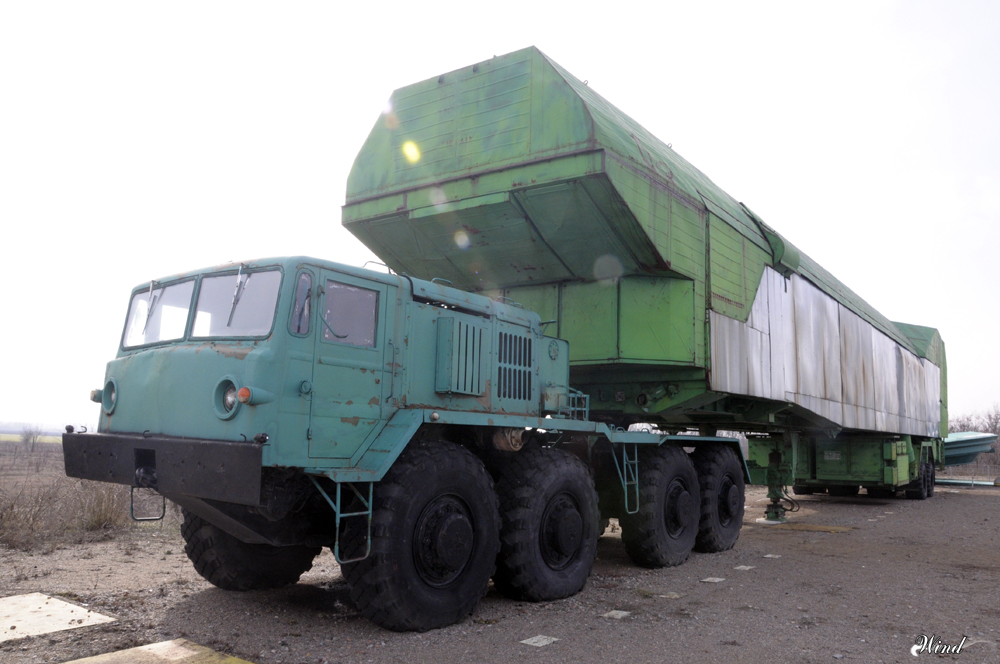

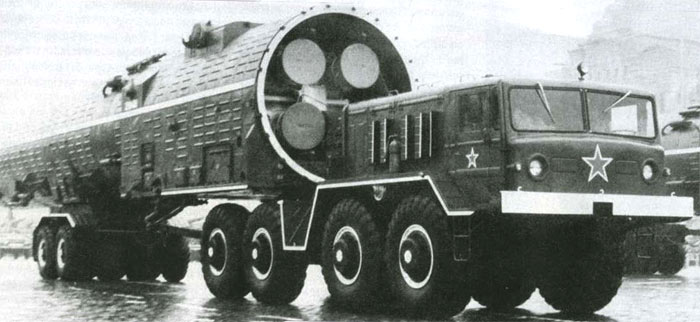

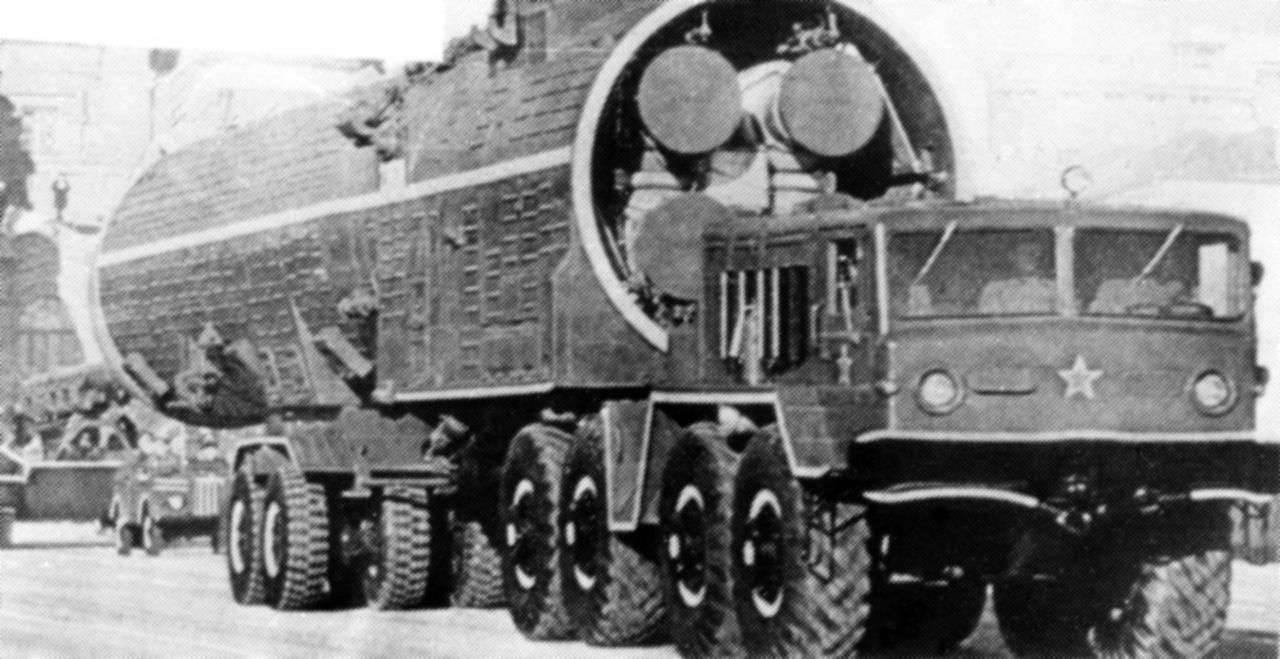

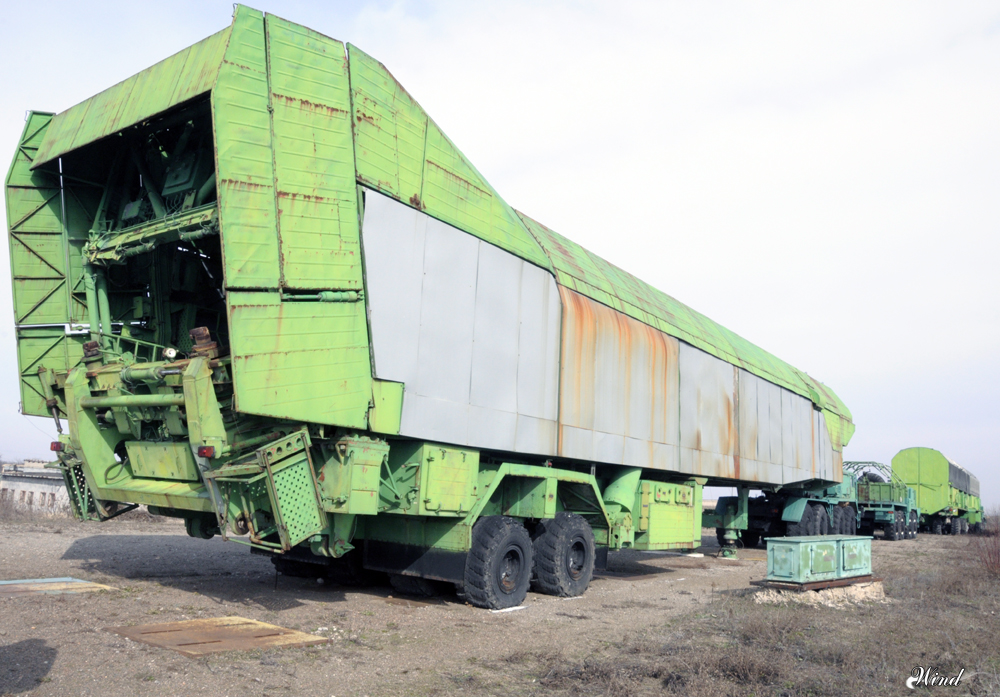

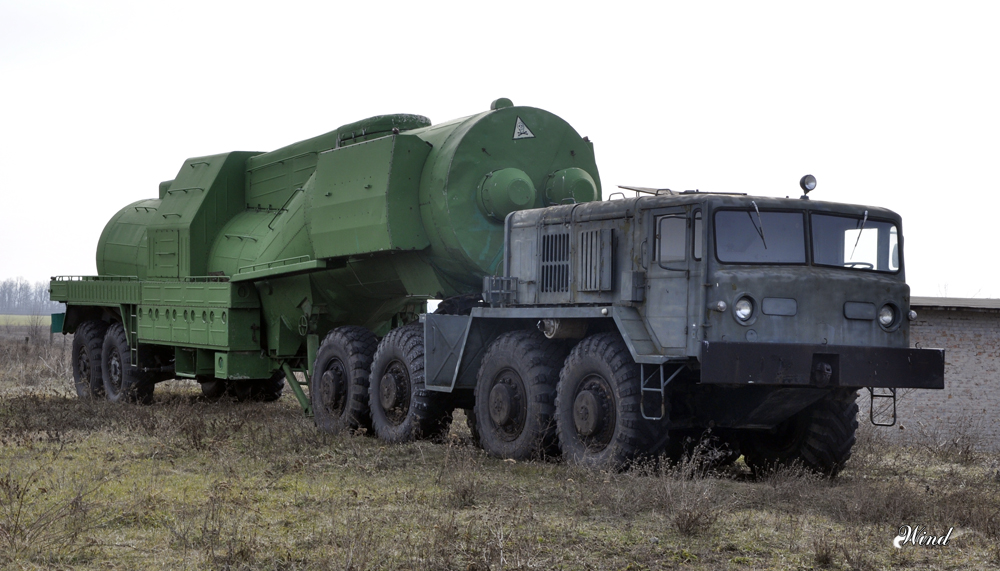

MAZ 537V had reduced by 7 tonnes (up to 18 tonnes) payload on a fifth-wheel. The fifth wheel was moved back by 345 mm due to a specific configuration of a trailer (container). MAZ-537V produced in limited quantities by the Ministry of Defense of the USSR orders and used to tow special 2-axle semi-trailers with containers for strategic UR-100 and 5V61 missles.

537537537537
MAZ 537MMAZ 537GMAZ 537GMAZ 537G
537537537537
MAZ 537GMAZ 537GMAZ 537MMAZ 537G
537537537537
MAZ 537MMAZ 537MMAZ 537GMAZ 537G
537537537537
MAZ 537MAZ 537GMAZ 537DMAZ 537G
537537537537
MAZ 537GMAZ 537GMAZ 537GMAZ 537E
537537537
MAZ 537EMAZ 537VMAZ 537V
