Ural » Next 4320

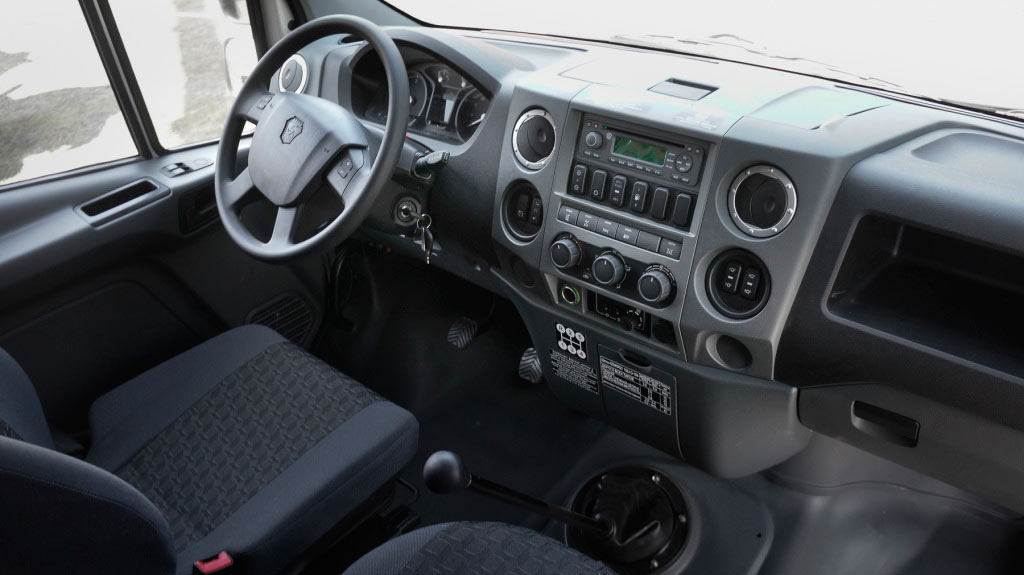

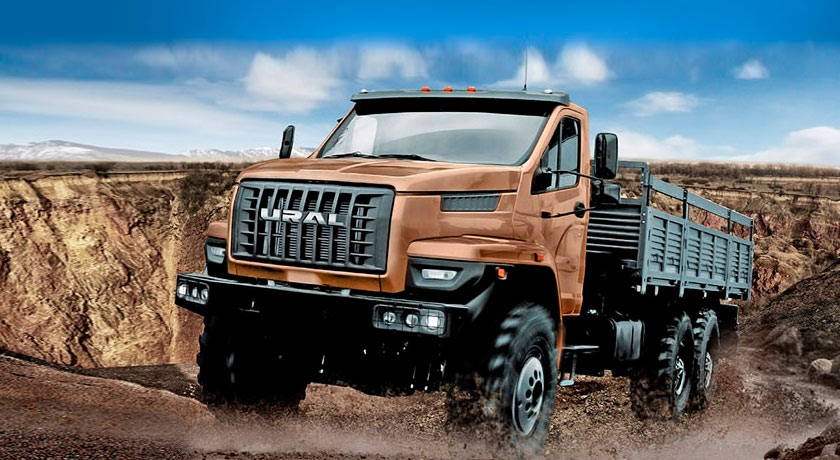

Russian automobile factory Ural presented in Miass where it is located an upgraded cabin for its bonneted truck. The new cab is borrowed from light duty truck Gazelle Next. In fact Ural took the new cab and put it to the old dump truck and added new wings, bonnet and other facings made of plastic. The new truck looks modern and impressive, and in several elements can be traced continuity with the old bonneted models.

The base of new trucks is an upgraded chassis with more than 50 changes. Maximum load of the front axle is increased from 5.3 tons to 6.5 tons, for the rear - from 12 to 13 tons. The GVW is increased to 22.5 tonnes, GCW - up to 38 tons. Due to modernization of the transfer case the input torque has increased by 1.4 times, the average fuel consumption was reduced by 8%. The base engine for the "Ural Next" is a new diesel engine YaMZ-536 with a capacity of 240, 285, 312 hp. On request, vehicles can be equipped with a manual transmission YaMZ or ZF.

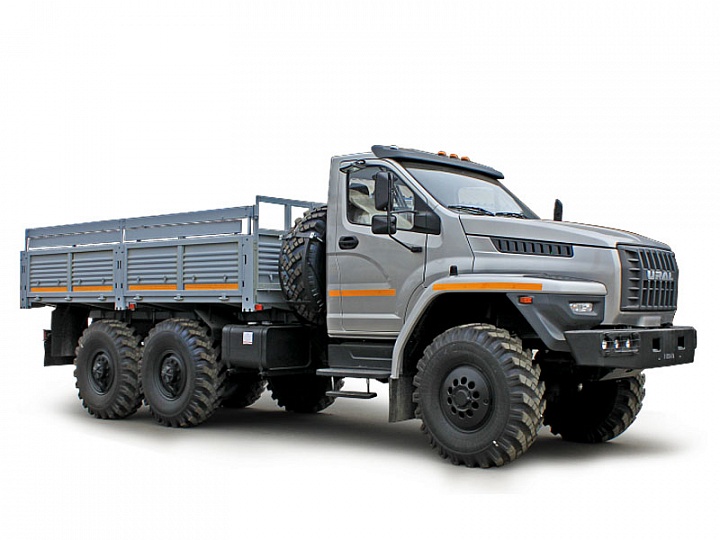

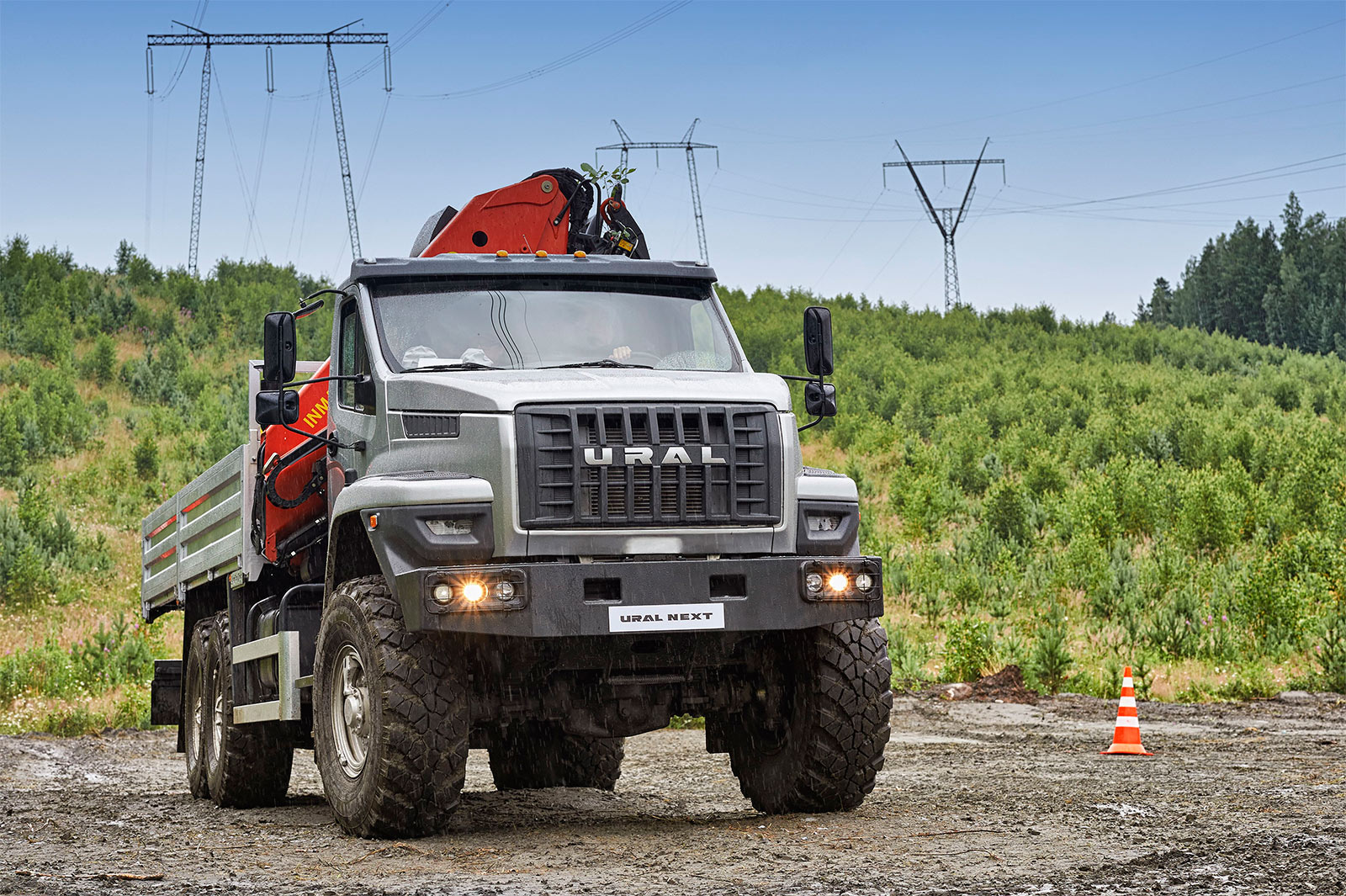

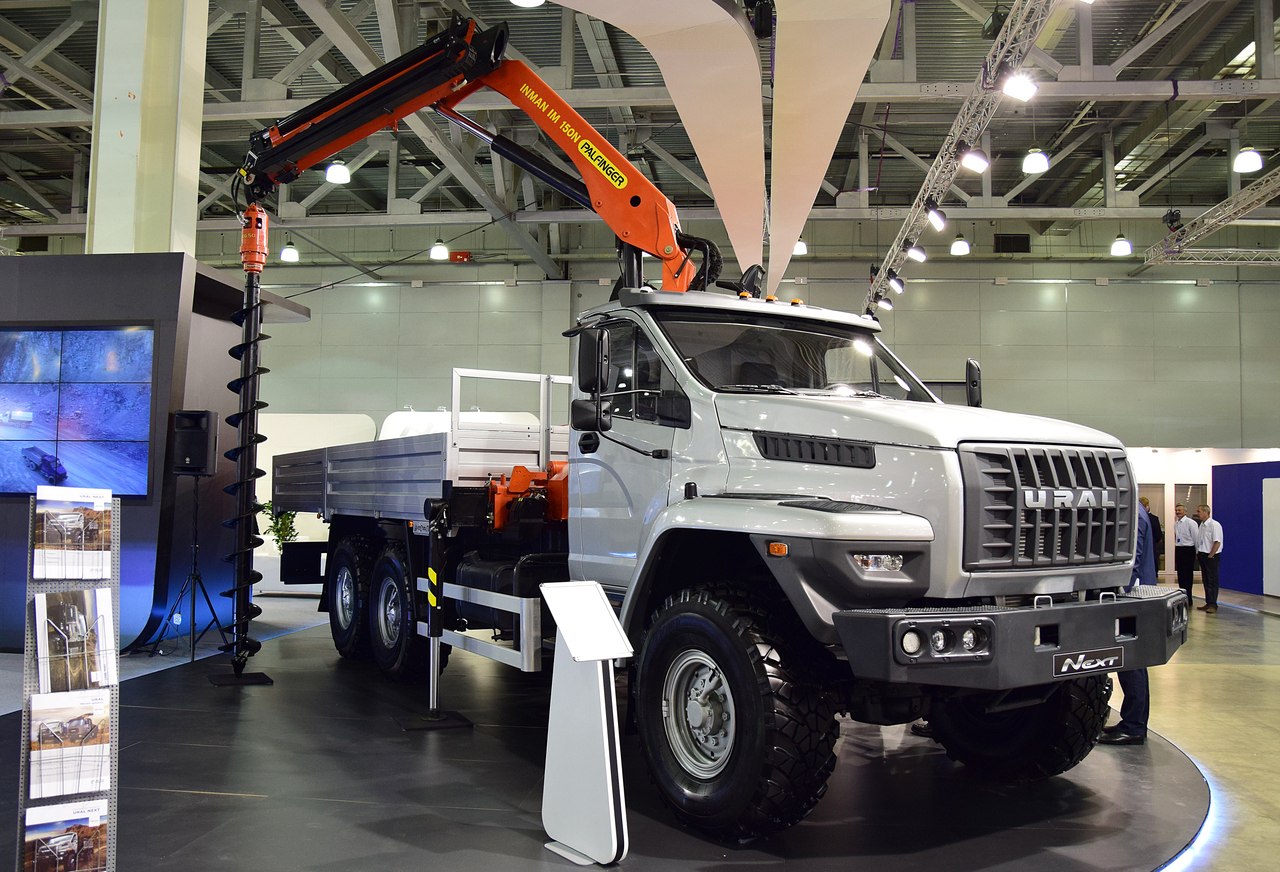

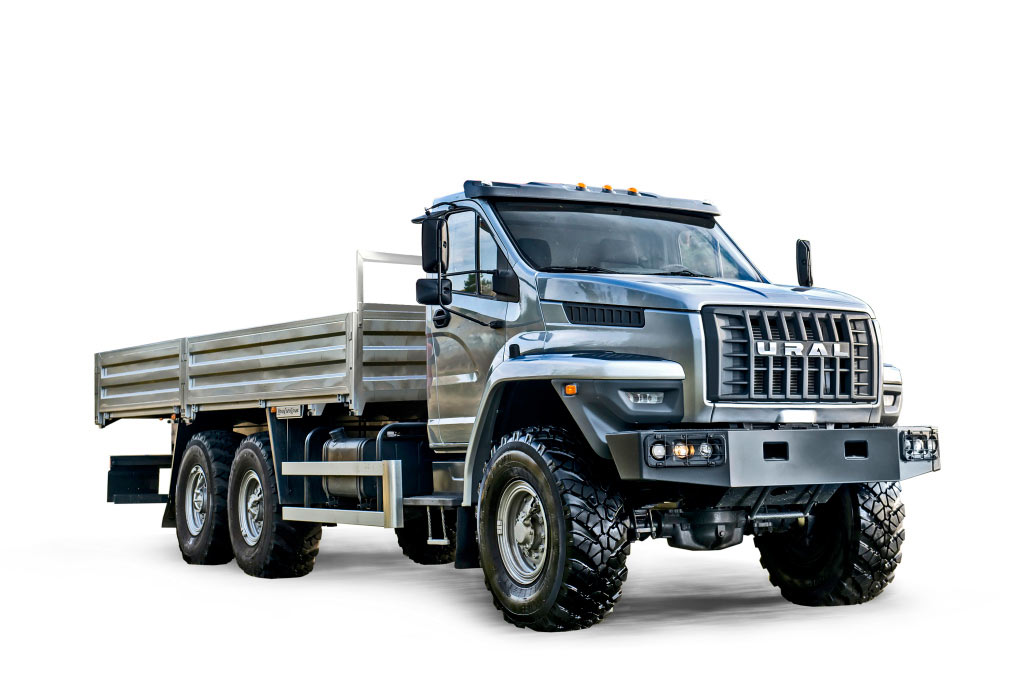

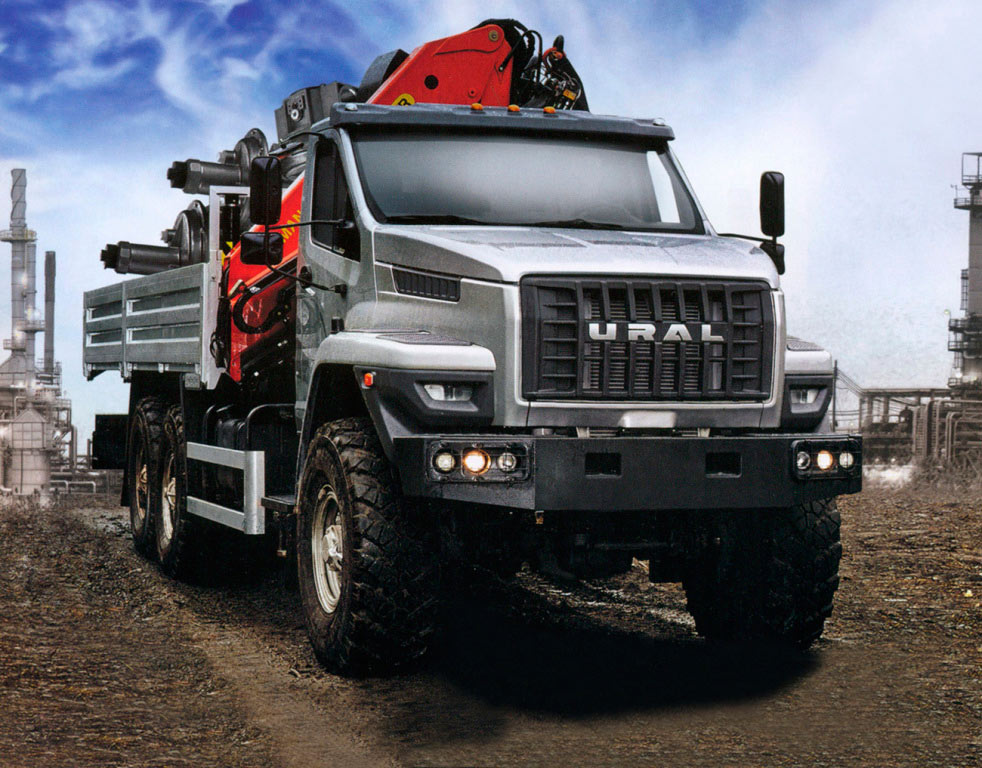

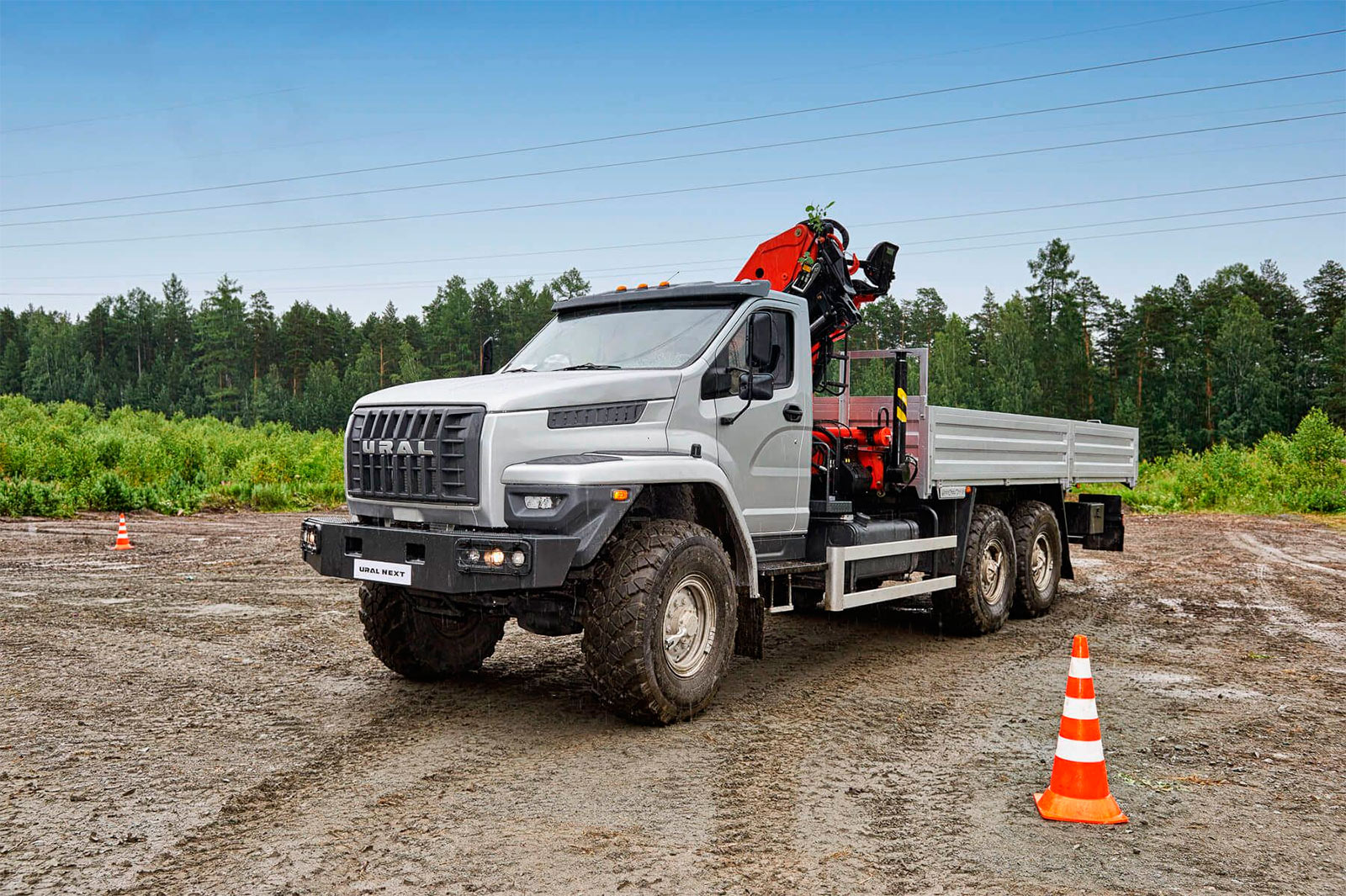

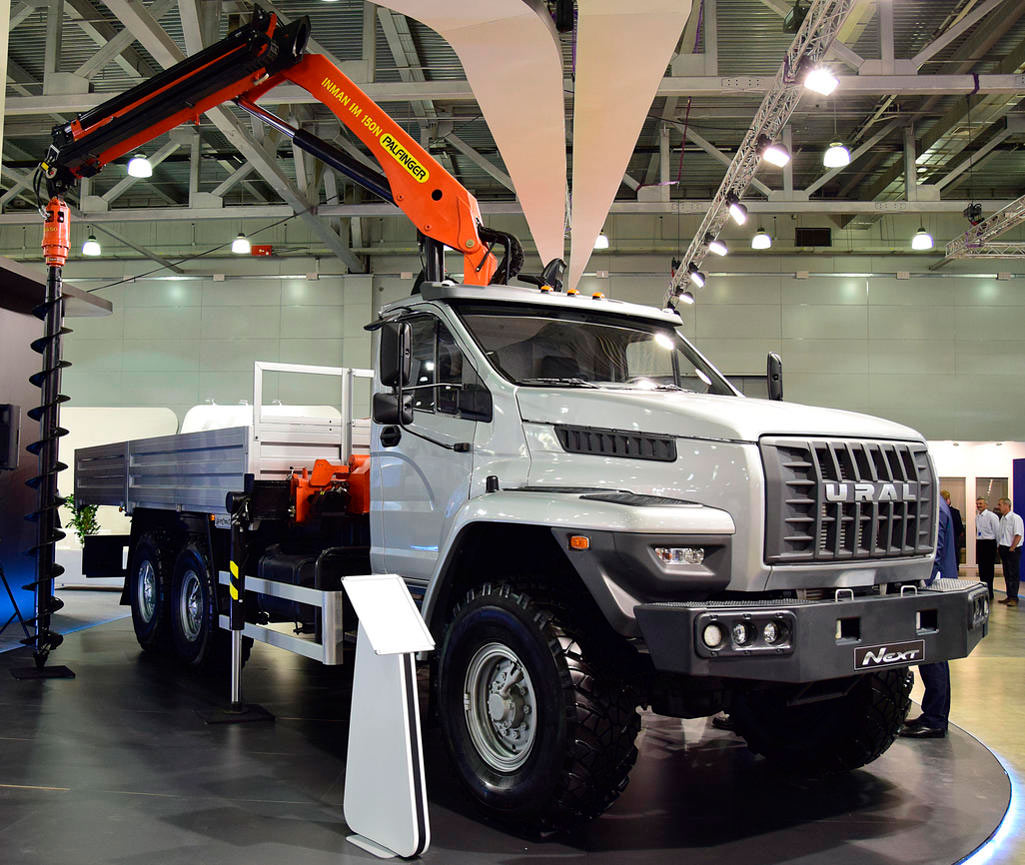

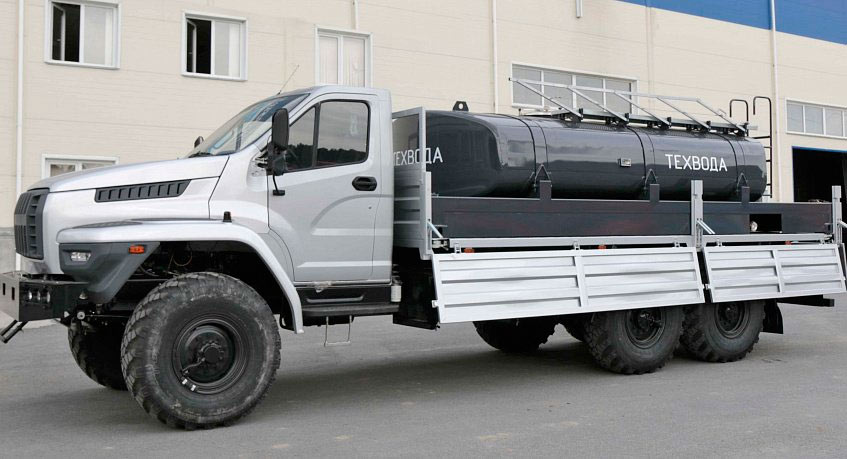

Flatbed Ural NEXT 4320 is the base model. The 6x6 truck is available in 3 configurations: 4320-5111 with a payload of 6500 kg, 4320-5911 with a payload of 10500 kg and 4320-6951 with a payload of 9000 kg, equipped with a crane.
